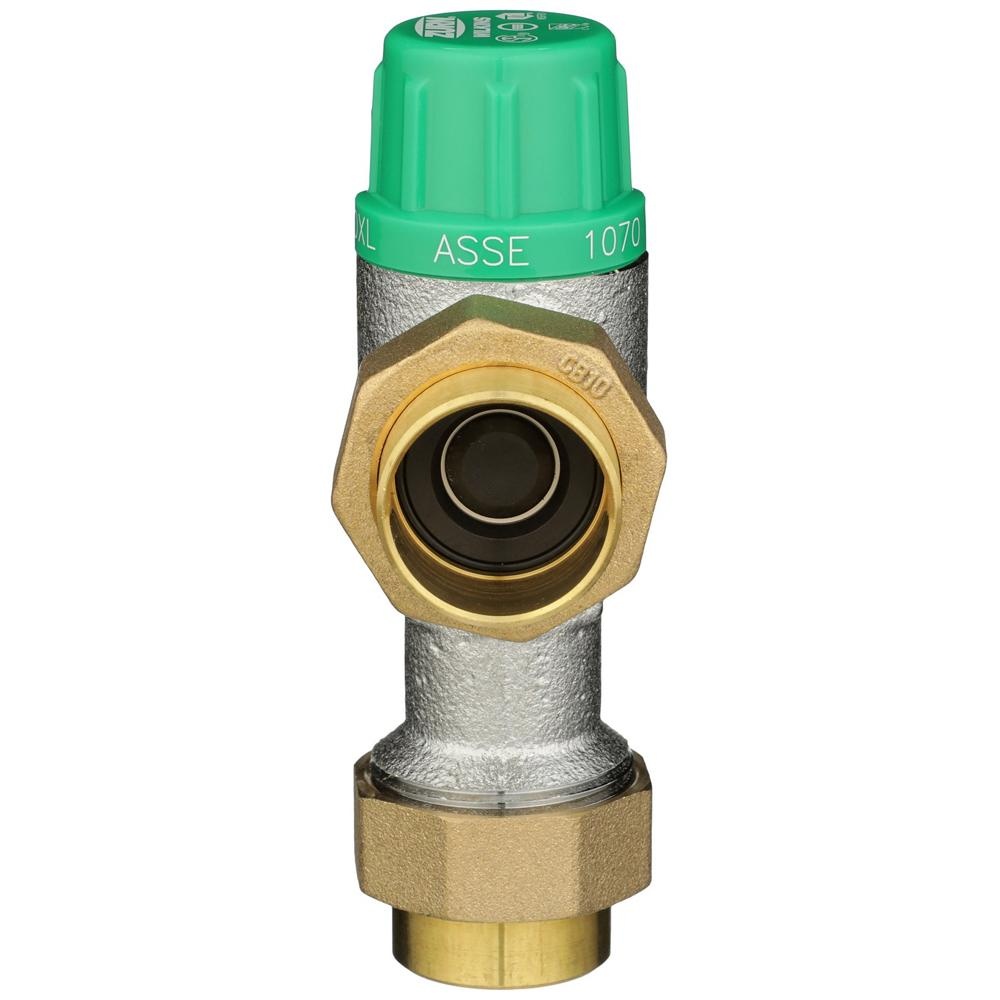

Zurn® Wilkins Aqua-Gard® Lead-Free Thermostatic Mixing Valve, Series: ZW1070XL, 3/4 in Nominal, FNPT, 145 psi, 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply, 10 gpm Flow, Media: Water, 5-7/16 in Inlet to Outlet Length, 2 in Top to Inlet Center, Cast Bronze Body, 300 Stainless Steel Spring Trim, FKM Seal/Noryl GFN2 Guide Tube, Nickel Plated, 5-1/2 in H
| Series | : | ZW1070XL |
| Nominal Size | : | 3/4 in |
| End Style | : | FNPT |
| Pressure Rating | : | 145 psi |
| Temperature Rating | : | 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply |
| Flow Capacity | : | 10 gpm |
| Media | : | Water |
| Inlet to Outlet Length | : | 5-7/16 in |
| Top to Inlet Center | : | 2 in |
| Body Material | : | Cast Bronze |
| Trim Material | : | 300 Stainless Steel Spring |
| Softgoods Material | : | FKM Seal/Noryl GFN2 Guide Tube |
| Finish | : | Nickel Plated |
| Dimensions | : | 5-1/2 in H |
- Lower lifecycle energy costs
- High protection from scalding injuries and bacterial infections
Warranty Information
The 3/4" ZW1070XL Aqua-Gard® Thermostatic Mixing Valve is utilized in both residential and the majority of light commercial point-of-use installations to protect against potential scalding from hot water and bacteria growth such as legionella. The ZW1070XL valve has a rapid response rate that results in a final safer water temperature of 95° to 115°F, and is most suitable for installation on fixtures, sinks, lavatories, or bathtubs. Often required by code, the ZW1070XL also provides lower energy costs.
