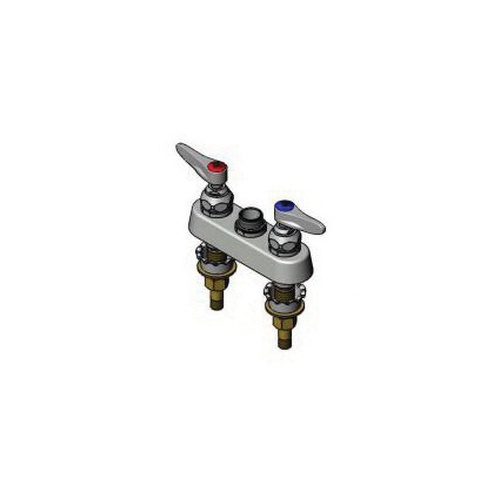

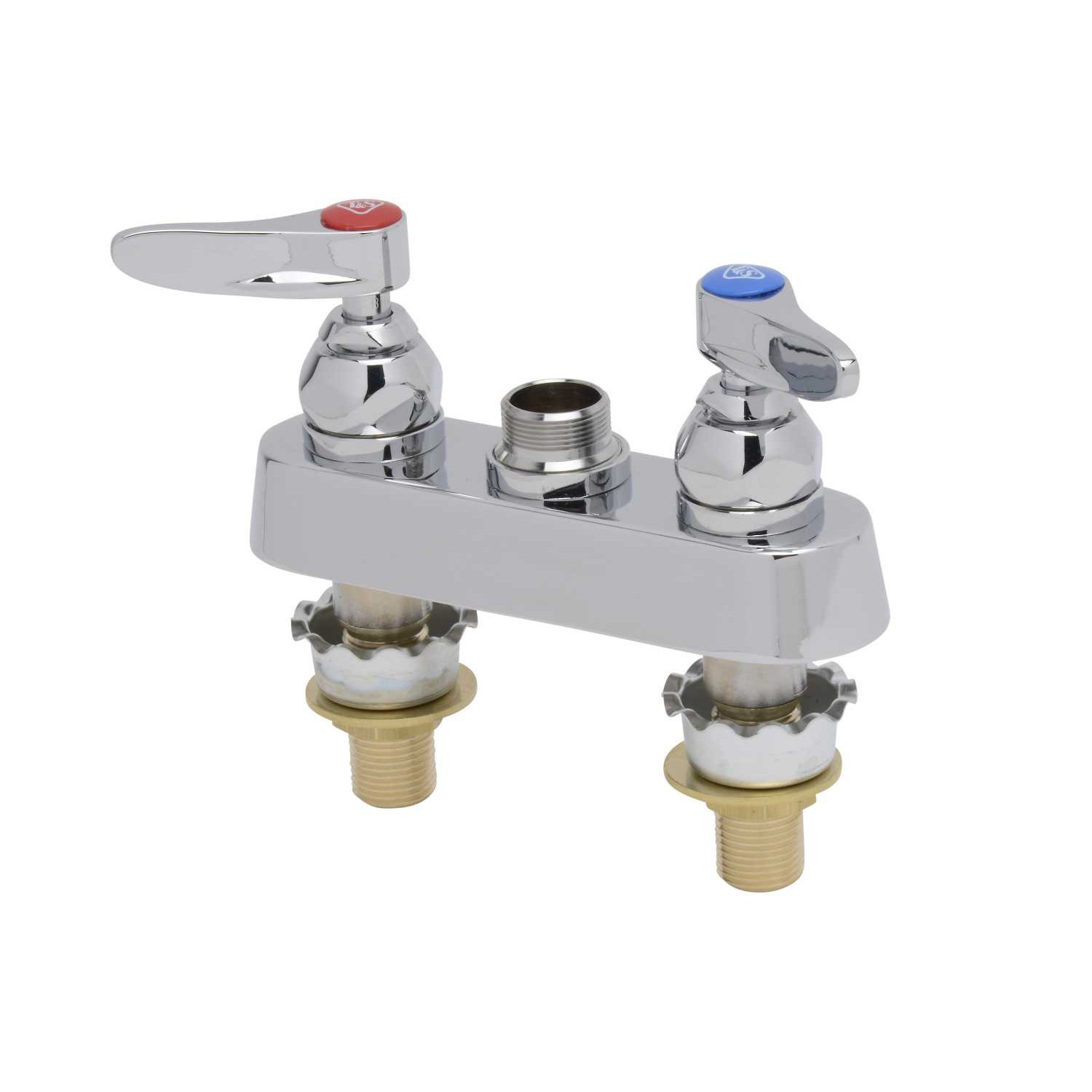

T & S Workboard Mixing Manual Faucet, 10.03 gpm Flow Rate, 4 in Center Distance, Lever Handle, 1/2 in Connection, Male NPSM Connection, 1-1/8 in Maximum Deck Thickness, Deck Mounting, Quarter-Turn Eterna Compression, 8-5/8 in W x 3-5/16 in H Dimensions, Brass, Polished Chrome
| Flow Rate | : | 10.03 gpm |
| Center Distance | : | 4 in |
| Connection Size | : | 1/2 in |
| Connection Type | : | Male NPSM |
| Maximum Deck Thickness | : | 1-1/8 in |
| Mounting Type | : | Deck |
| Valve/Cartridge Type | : | Quarter-Turn Eterna Compression |
| Dimensions | : | 8-5/8 in W x 3-5/16 in H |
| Material | : | Brass |
| Finish/Color | : | Polished Chrome |
- Quarter turn eterna compression cartridge with spring check to prevent cross flow of water
- 40 to 140 deg F rated operating
- Lever handle with color coded index
- Rough-in requirement - (2) 1 in Dia (25mm) mounting hole
- Low lead content (0.25% max)
- Swivel outlet accepts T&S swing nozzles
- Tailpieces and nuts for 1/4 in NPT male connections
