Zurn® Wilkins 1-350XL 64795
Send Print

Zurn® Wilkins 1-350XL

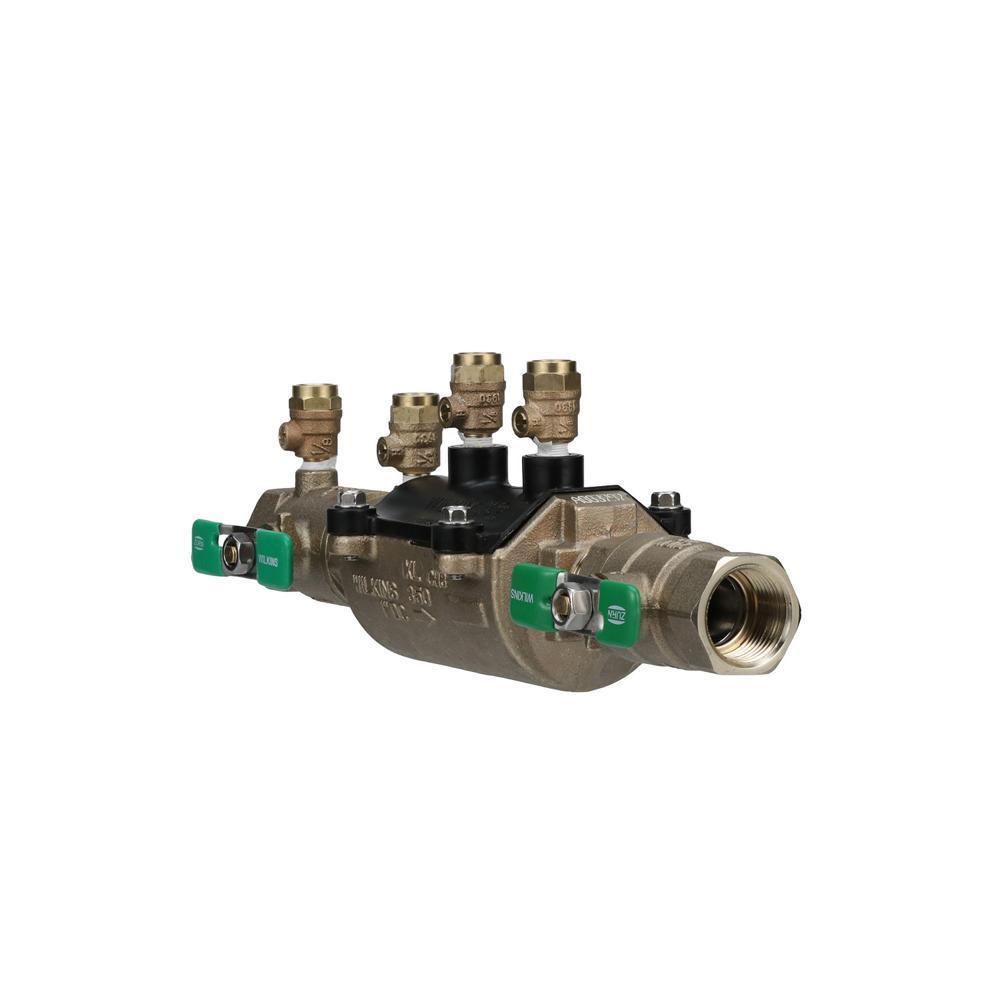

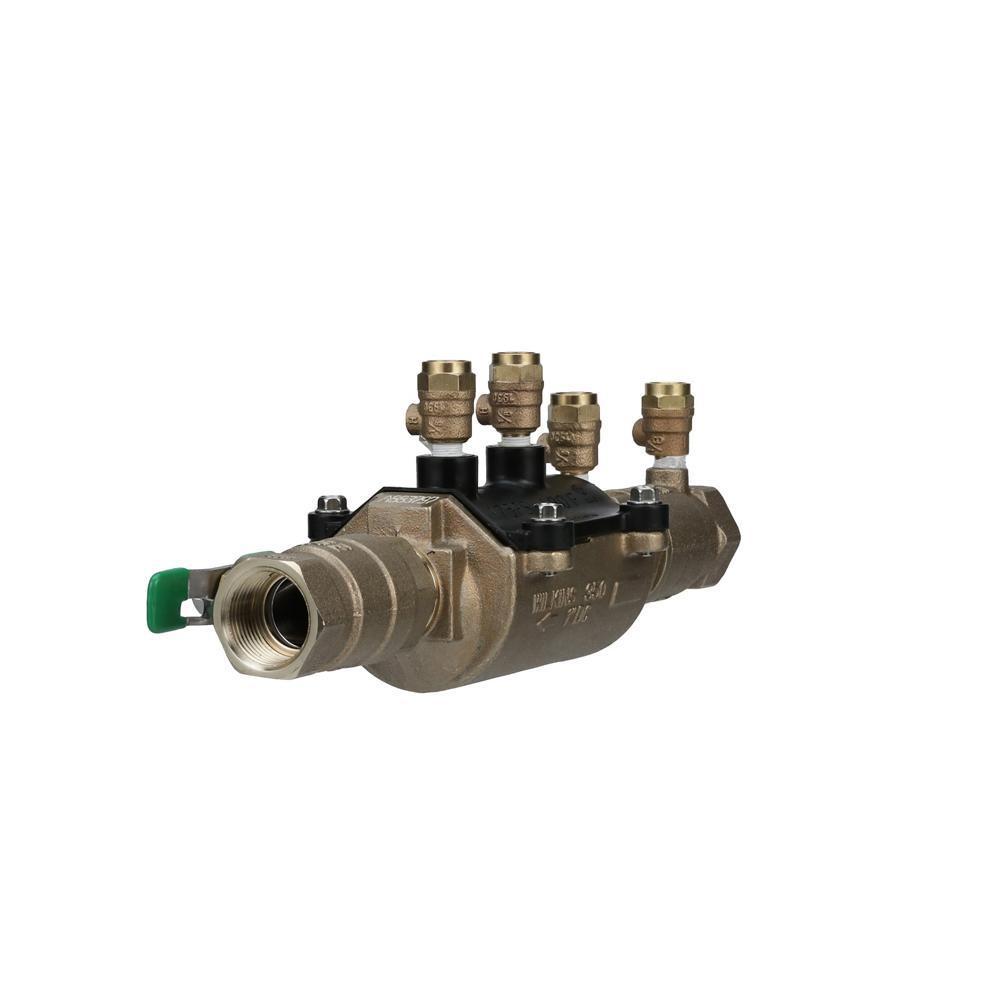

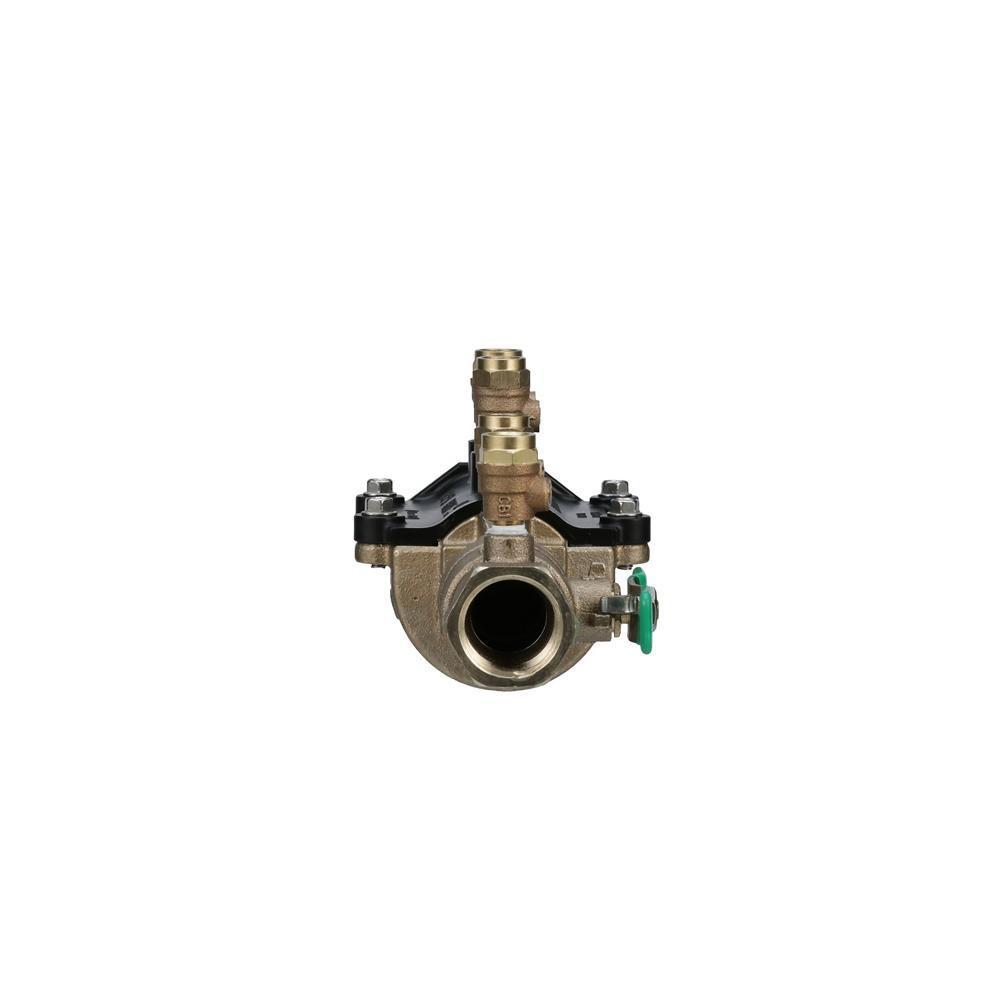

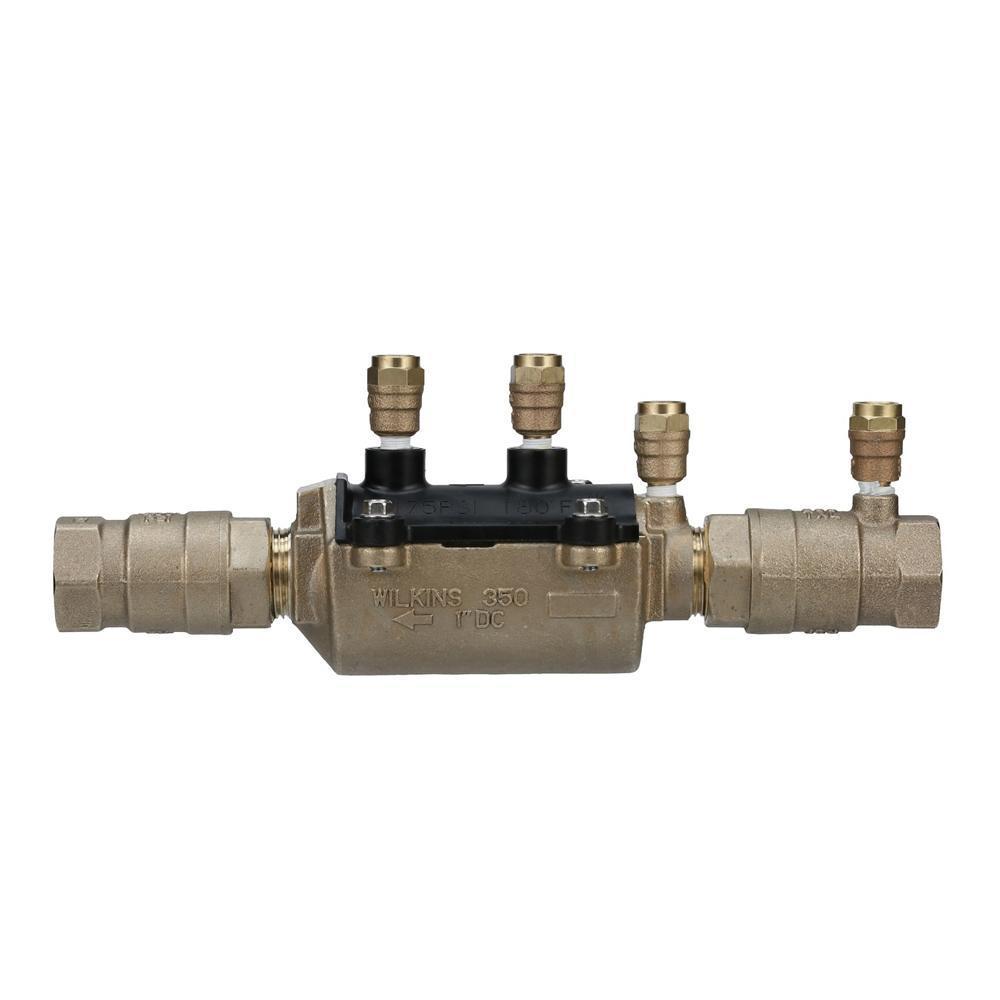

Zurn® Wilkins 1-350XL 350XL Composite Vessel Valve Assembly, 1 in Nominal, FNPT End Style, Quarter-Turn Ball Valve, Bronze Body, Dual Check, Import

  • MPN: 1-350XL
  • TPN: 64795
  • UPC: 612052087184
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Zurn® Wilkins Valve Assembly, Composite Vessel, Series: 350XL, 1 in Nominal, FNPT, 175 psi, 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Dual Check Backflow, Full Port, Media: Water, Bronze Body, 12-1/4 in L, Import

Type      :      Composite Vessel
Series      :      350XL
Nominal Size      :      1 in
End Style      :      FNPT
Pressure Rating      :      175 psi
Temperature Rating      :      180 deg F
Ball Valve/Gate Valve Type      :      Quarter-Turn Ball Valve
Backflow Type      :      Dual Check
Port Type      :      Full
Media      :      Water
Body Material      :      Bronze
Dimensions      :      12-1/4 in L
Domestic/Import      :      Import
  • Top-mounted test cocks allow for easy installation
  • EZSwap pressure vessel reduces repair time and costs
  • Flush Tool (FLUSH) provides easy line flushing, saving up to 15 min per installation
  • Construction offers corrosion-resistance and winterization
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_P12-BG_Warranty.pdf
  • pdf Full Engineering Drawing https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Wilkins_1-350XLFT_Full_Engineering_Drawing.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Wilkins_1-350XLFT_Installation_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Wilkins_112-350XL_Specification_Sheet.pdf

The 1 in. 350XL Double Check Valve Assembly is used in low health hazard, potable water applications for protection against both backsiphonage and backpressure of polluted water. A favorite for plumbing contractors, the patented and innovative EZSwap removable pressure vessel allows for simple, cost-effective maintenance and repairs, straightforward line flushing, quick winterization, Safe Drinking Water Act compliant design, and added water savings. Its stainless steel shut-off valve handles, hardware, and struts are corrosion-resistant and the durable UV resistant reinforced nylon EZSwap Pressure Vessel resists corrosion and mineral build-up to better withstand harsh outdoor conditions.
