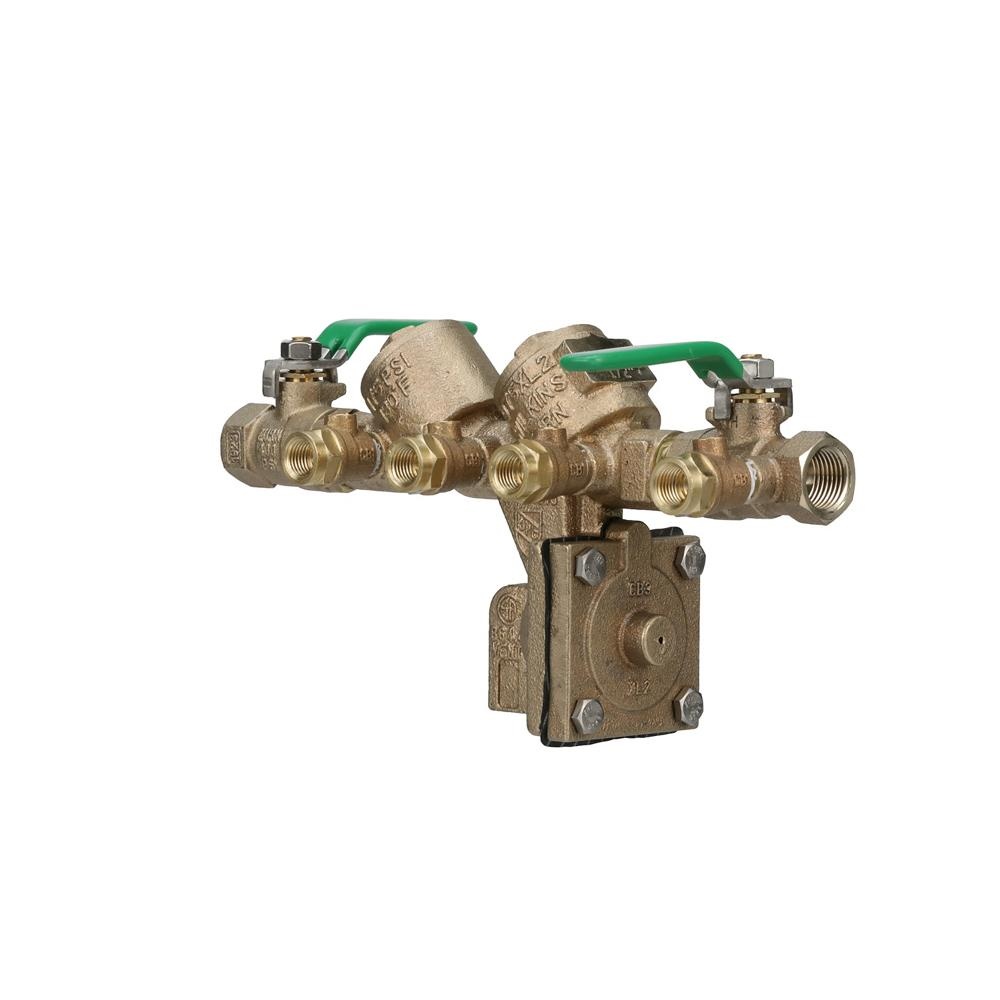

Zurn® Wilkins Backflow Preventer, Series: 975XL2, 1/2 in Nominal, FNPT, 175 psi, 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Backflow, Full Port, Media: Water, Bronze Body, 13-1/2 in L, Import
| Series | : | 975XL2 |
| Nominal Size | : | 1/2 in |
| End Style | : | FNPT |
| Pressure Rating | : | 175 psi |
| Temperature Rating | : | 180 deg F |
| Ball Valve/Gate Valve Type | : | Quarter-Turn Ball Valve |
| Backflow Type | : | Reduced Pressure |
| Port Type | : | Full |
| Media | : | Water |
| Body Material | : | Bronze |
| Dimensions | : | 13-1/2 in L |
| Domestic/Import | : | Import |
- Top access checks provide easy access for repairs in compact locations
- Short lay length eases replacement and installation costs
- Check and relief valve seats are easily replaceable
- All cast bronze body and stainless steel internals provide corrosion-resistance
Warranty Information
The 1/2" 975XL2 Reduced Pressure Principle Backflow Preventer is used in high health hazard, potable water applications for protection from both backsiphonage and backpressure of contaminated water into the potable water supply. The wye pattern, bronze body design provides separate access to each check valve and the relief valve to reduce labor costs and repair time. Its short lay length eases replacement costs and installation time. The 975XL2 includes all the necessary components for managing your system, and is the simplest, best, and most reliable backflow preventer in the irrigation market today.
