Zurn® Wilkins 112-600XL 12709
Send Print

Zurn® Wilkins 112-600XL

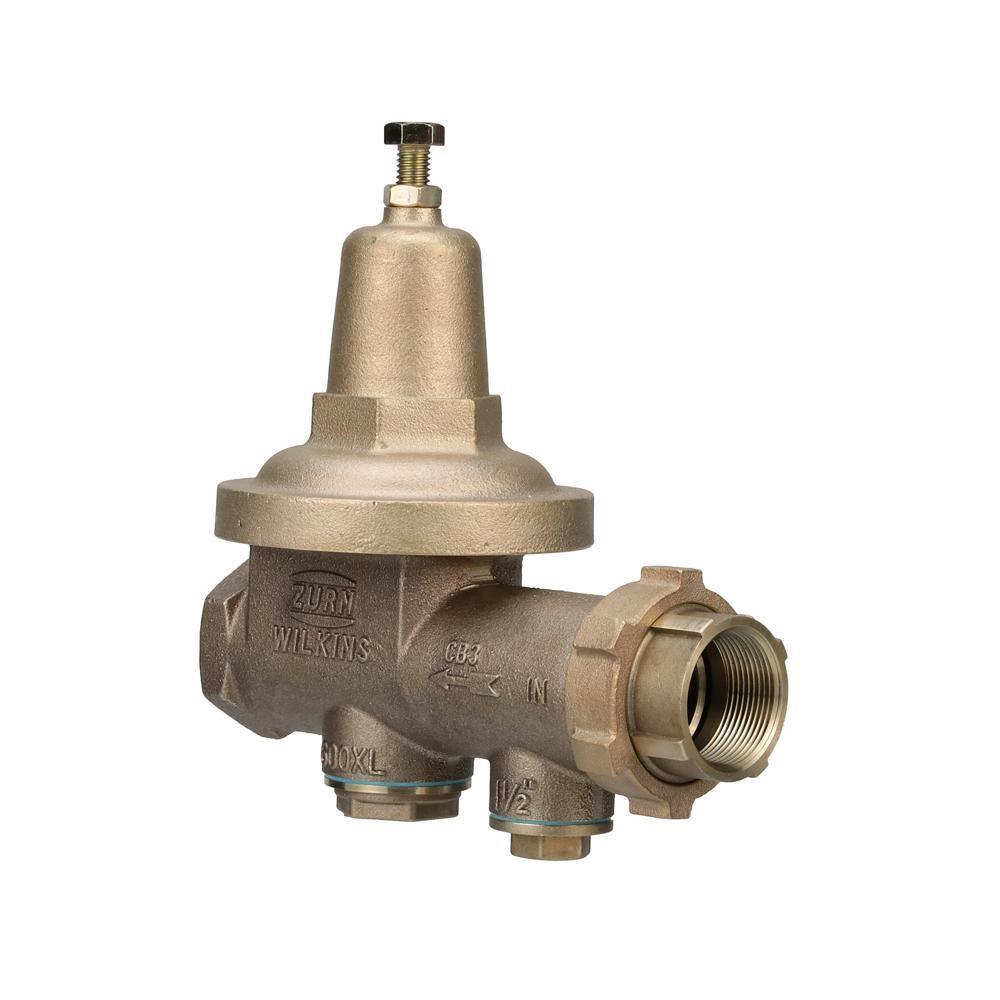

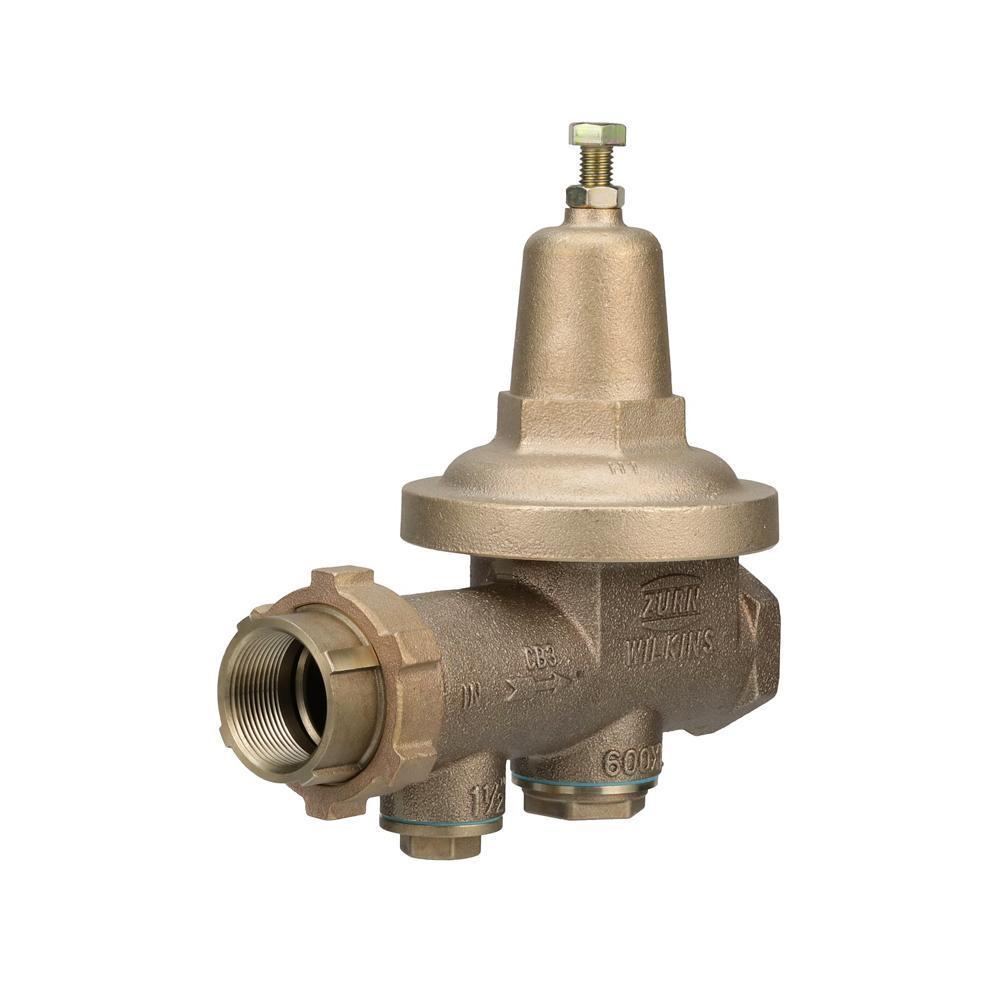

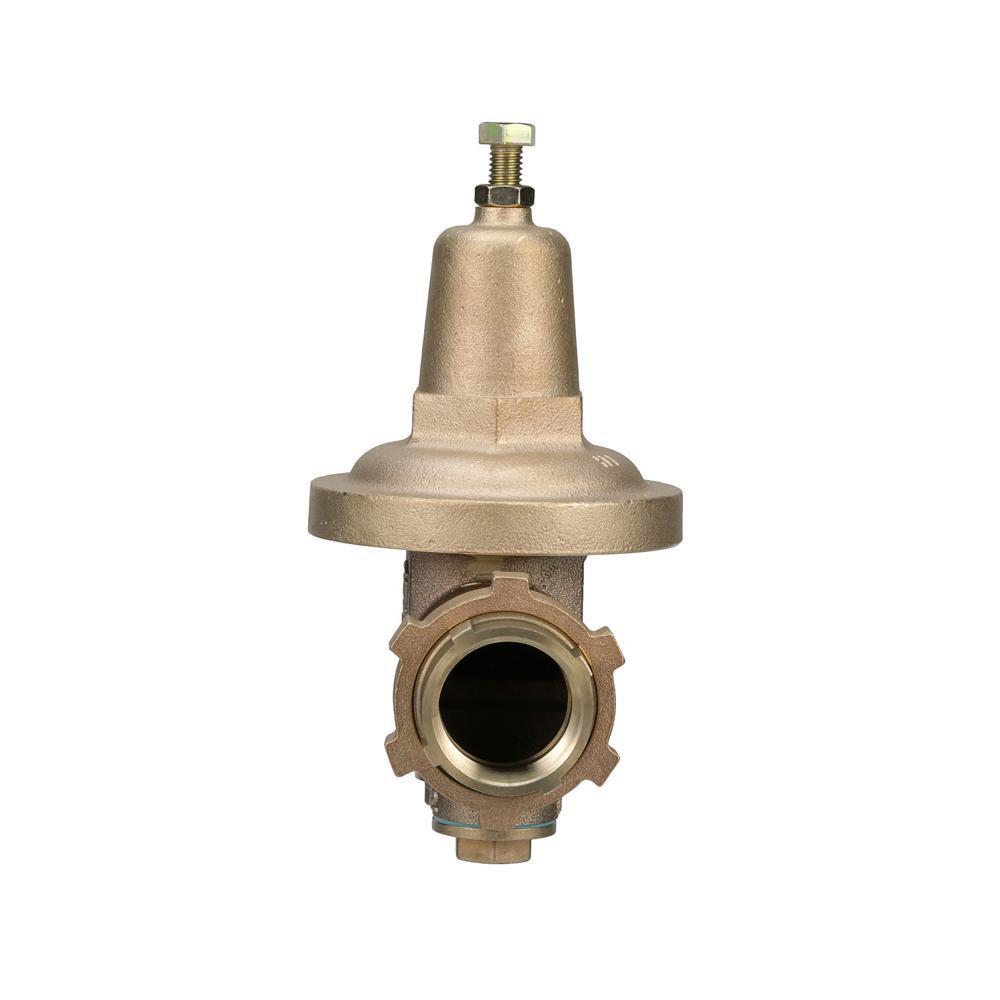

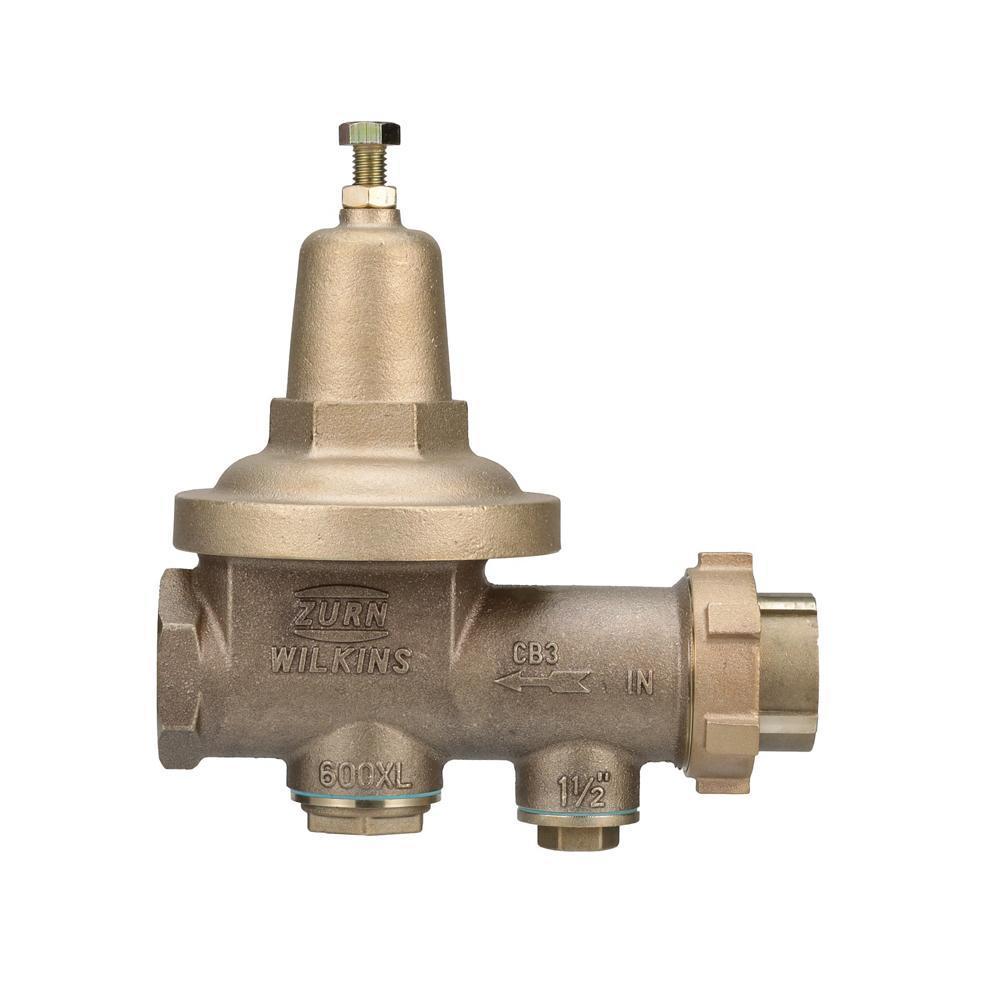

Zurn® Wilkins 112-600XL Pressure Reducing Valve With Integral By-pass Check Valve and Strainer, 1-1/2 in, FNPT Union x FNPT, 300 psi, Cast Bronze Body, Import

  • MPN: 112-600XL
  • TPN: 12709
  • UPC: 612052029603
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Zurn® Wilkins Pressure Reducing Valve, Lead Free, Series: 600XL, 1-1/2 in Nominal, FNPT Union x FNPT, 300 psi, 140 deg F, Media: Water, 9-1/8 in Inlet to Outlet Length, Cast Bronze Body, 300 Stainless Steel Seat Trim, Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin™) Cap Gasket, 10 in H, Import

Series      :      600XL
Nominal Size      :      1-1/2 in
End Style      :      FNPT Union x FNPT
Pressure Range      :      300 psi
Temperature Rating      :      140 deg F
Media      :      Water
Inlet to Outlet Length      :      9-1/8 in
Body Material      :      Cast Bronze
Trim Material      :      300 Stainless Steel Seat
Softgoods Material      :      Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin™) Cap Gasket
Dimensions      :      10 in H
Domestic/Import      :      Import
  • Fiber union gasket ensures fast installation
  • Durable construction ensures low maintenance and lifecycle costs
  • Inlet pressure changes with balanced design features to protect the system
  • Threaded bell provides easier access than bolted on bells
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_P12-BG_Warranty.pdf
  • pdf Full Engineering Drawing https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Wilkins_2-600XL_Full_Engineering_Drawing.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Wilkins_34-600XL_Installation_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Wilkins_34-600XL_Specification_Sheet.pdf

The 1-1/2" 600XL Pressure Reducing Valve handles sandy, debris-laden water systems for high-flow capacity in residential, commercial, and new construction applications. It meets compliance with universal plumbing code. The stainless steel strainer includes a standard 20 mesh configuration and separate-access cover for simplified cleaning, while the bronze threaded bell provides superior corrosion-resistance and speeds access to the internals – together, cutting labor time up to 50%. Internal components of the 600XL utilize a balanced design, providing accurate downstream pressure without consideration of the incoming pressure.
