Zurn® Wilkins 2-NR3XL 56099
Send Print

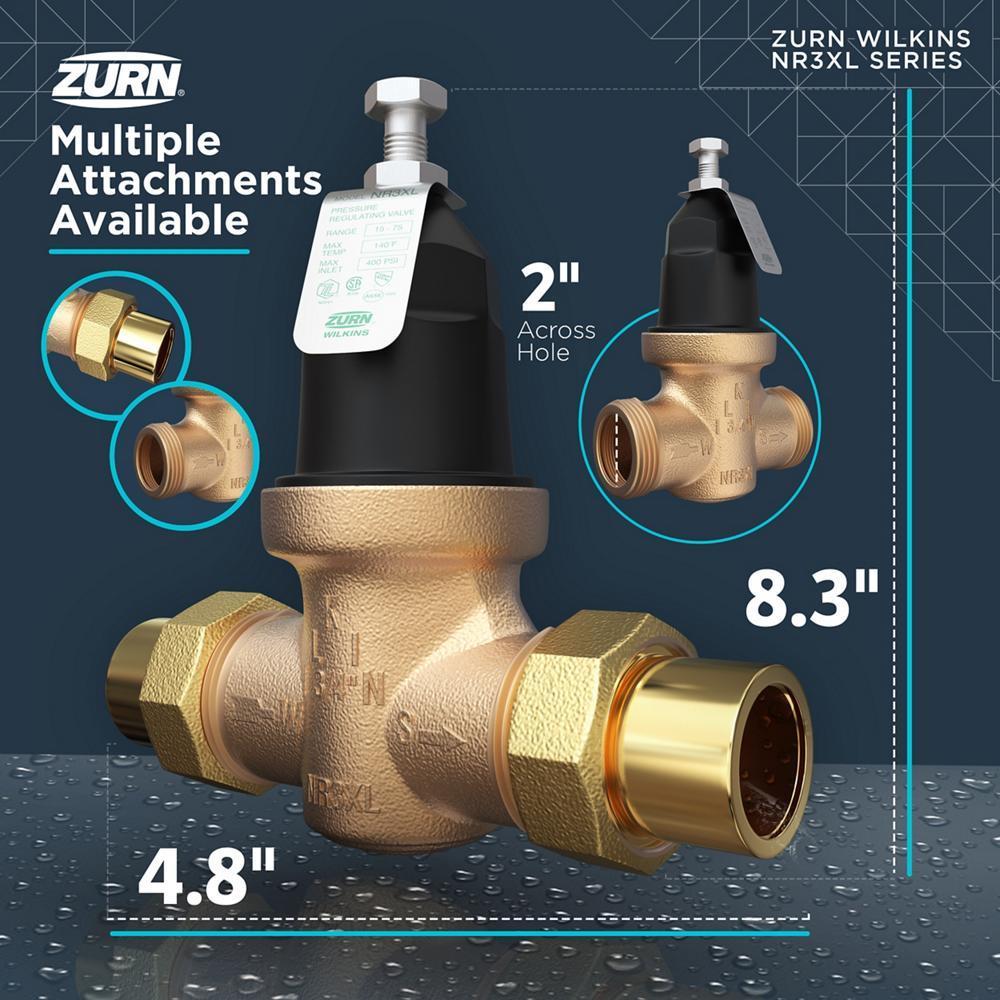

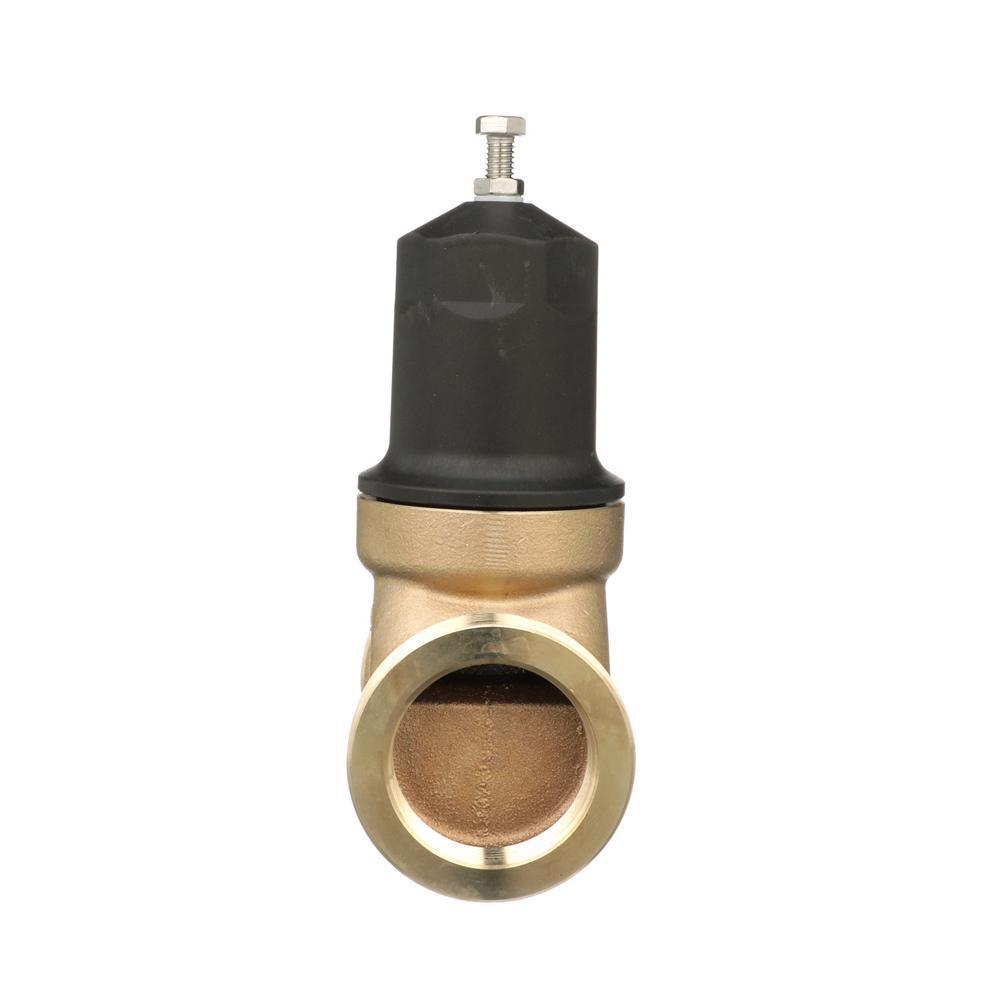

Zurn® Wilkins 2-NR3XL

Zurn® Wilkins 2-NR3XL NR3XL Pressure Reducing Valve With Integral By-Pass Check Valve and Strainer, 2 in Nominal, FNPT Union x FNPT End Style, 300 psi Pressure, Cast Bronze Body, Import

  • MPN: 2-NR3XL
  • TPN: 56099
  • UPC: 612052069579
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Zurn® Wilkins Pressure Reducing Valve, Lead Free, Series: NR3XL, 2 in Nominal, FNPT Union x FNPT, 300 psi, 140 deg F, Media: Water, 6-1/4 in Inlet to Outlet Length, Cast Bronze Body, Brass Stem/302 Stainless Steel Spring Trim, Buna Nitrile/EPDM Elastomers, 8-1/2 in H, Import

Series      :      NR3XL
Nominal Size      :      2 in
End Style      :      FNPT Union x FNPT
Pressure Range      :      300 psi
Temperature Rating      :      140 deg F
Media      :      Water
Inlet to Outlet Length      :      6-1/4 in
Body Material      :      Cast Bronze
Trim Material      :      Brass Stem/302 Stainless Steel Spring
Softgoods Material      :      Buna Nitrile/EPDM Elastomers
Dimensions      :      8-1/2 in H
Domestic/Import      :      Import
  • Cartridge-loaded design simplifies repairs
  • Time- and labor-saving tailpiece options include threaded, PEX, copper sweat and CPVC
  • Highly durable, threaded bell resists corrosion and provides easy access to cartridge internals
  • Protects plumbing from excessive water pressures
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_10FSC_Catalog.pdf
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_P12-BG_Warranty.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Wilkins_34-NR3XLDUPEX_Installation_Manual.pdf
  • pdf Full Engineering Drawing https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Wilkins_34-NR3XLDUR_Full_Engineering_Drawing.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Zurn_Wilkins_34-NR3XL_Specification_Sheet.pdf

The versatile NR3XL pressure reducing valve is ideal for residential applications that require higher pressure ranges or frequent sediment and debris cleaning. The stainless steel screen filters out debris without buildup to protect your plumbing system and is easy to remove and clean. The cartridge design ensures easy repairs, with a corrosion-resistant polymer composite bell on top of a cast bronze body offers easy access to internals. Lowers lifetime costs by helping to conserve water; meets code and job site requirements and is ideal for irrigation, residential single and multifamily and more.
