WATTS® 0342629 48997
Send Print

WATTS® 0342629

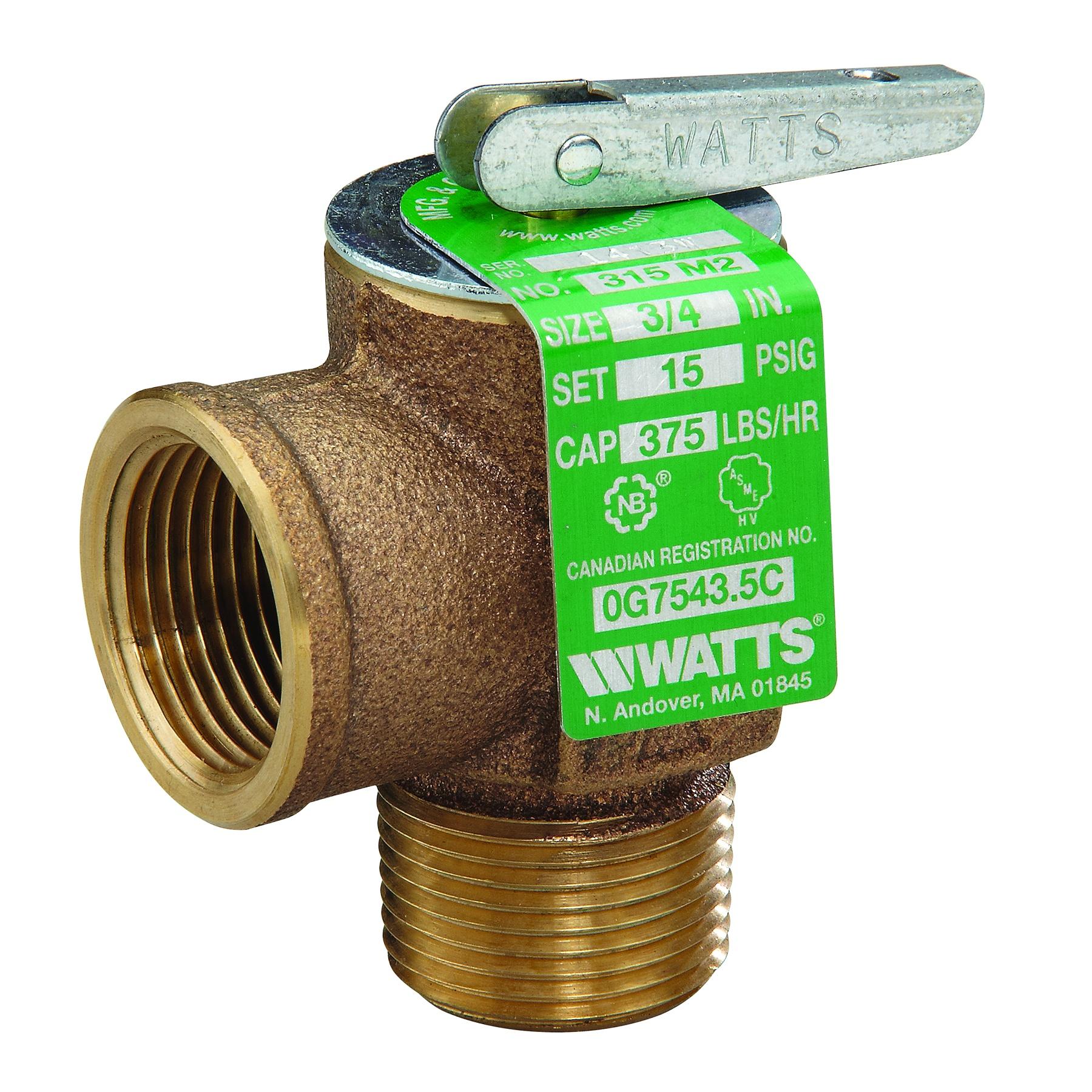

WATTS® 0342629 Safety Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 15 psi Pressure, Bronze Body

  • MPN: 0342629
  • TPN: 48997
  • UPC: 098268792034
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

WATTS® Safety Relief Valve, 3/4 in Nominal, MNPT x FNPT, 15 psi, Media: Steam, Bronze Body, Bronze Seat, 2-3/4 in H

Nominal Size      :      3/4 in
End Style      :      MNPT x FNPT
Pressure Rating      :      15 psi
Media      :      Steam
Body Material      :      Bronze
Softgoods Material      :      Bronze Seat
Dimensions      :      2-3/4 in H
  • Pressure for saturated steam service set at 15 psi
  • NPT male inlet x NPT female outlet
  • Top guided stem and non-stick PTFE disc to metal seat assures positive shutoff
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_0342629_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_342632_Specification_Sheet.pdf

This 3/4 x 3/4 inch high capacity safety relief valve is designed for low pressure, steam heating boilers and process equipment used in industrial and commercial applications. It features a bronze body, stainless steel spring, top guided stem, NPT threaded male inlet x threaded female outlet (drain) connection, and a non-stick PTFE(R) disc to metal seating ensures positive shutoff. The factory pressure setting for saturated steam service is set at 15 psi. This valve has an ASME, section IV rating.
