Milwaukee® 2217-20 21969
Send Print

Milwaukee® 2217-20

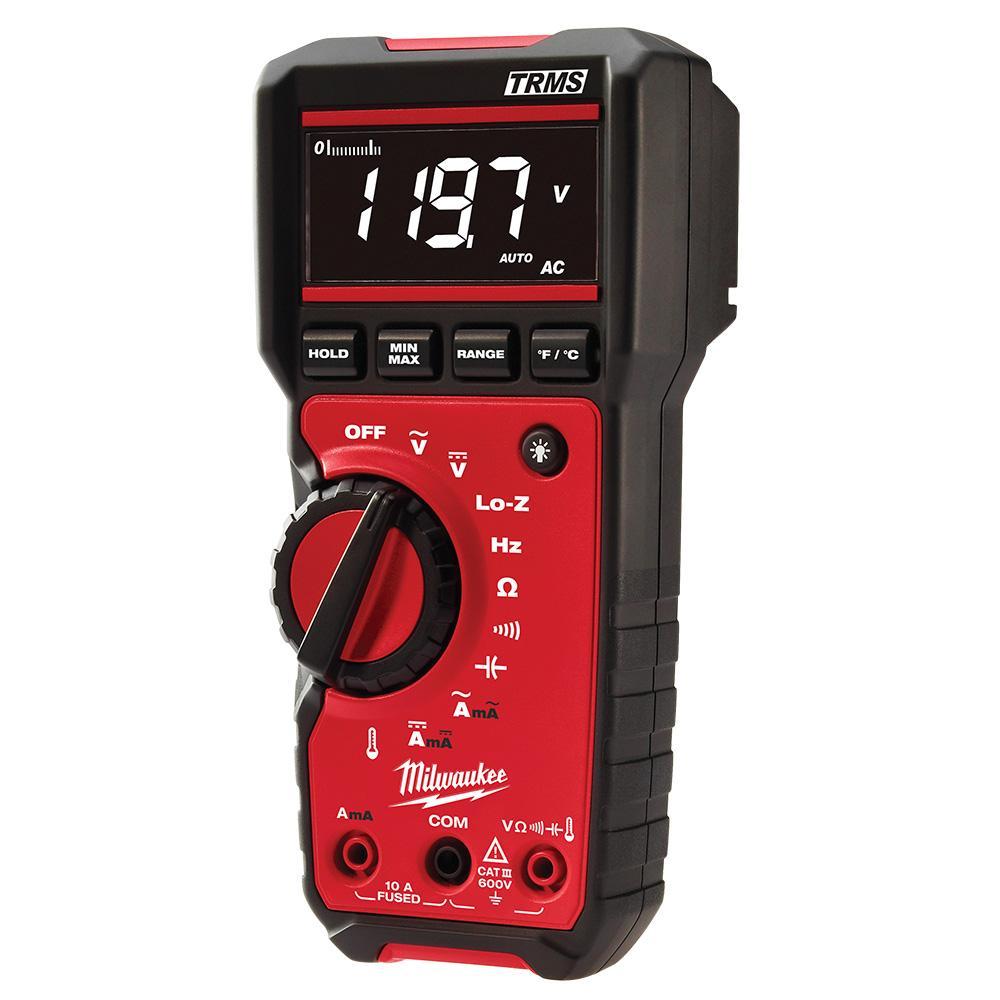

Milwaukee® 2217-20 Digital Multimeter, 600 V AC/DC, 10 A, 40 MOhm Measuring, 6 mV to 600 VAC, 600 mV to 600 VDC, 10 A, 600 Ohm to 40 MOhm, High Contrast White on Black Display

  • MPN: 2217-20
  • TPN: 21969
  • UPC: 045242173471
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Milwaukee® Digital Multimeter, 600 V AC/DC, 10 A, 40 MOhm Measuring, 6 mV to 600 VAC, 600 mV to 600 VDC, 10 A, 10 Hz to 50 kHz Frequency, 600 Ohm to 40 MOhm Resistance, Safety Rating: CAT III 600 VAC, 1000 uF Capacitance, +/-0.5% + 2 Digits Accuracy, High Contrast White on Black Display, AA Alkaline Battery, 6-1/2 in L Dimensions, -40 to 752 deg F

Measuring Range      :      600 V AC/DC, 10 A, 40 MOhm
Voltage Rating      :      6 mV to 600 V AC/600 mV to 600 V DC
Amperage Rating      :      10 A
Frequency Rating      :      10 Hz to 50 kHz
Resistance      :      600 Ohm to 40 MOhm
Safety Rating      :      CAT III 600 V AC
Capacitance      :      1000 uF
Accuracy      :      +/-0.5% + 2 Digits
Battery Type      :      AA Alkaline
Dimensions      :      6-1/2 in L
Temperature Rating      :      -40 to 752 deg F
  • Auto range to millivolts and milliamp ranges
  • Contact temperature measurement from -40 to 752 deg F
  • Measures up to 600A AC
  • 600micro a DC for Flame Rectification
  • Lo-Z measurement to eliminate ghost voltage
  • Rugged over-molding increases durability and user grip
  • pdf Full Engineering Drawing https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milwaukee_2217_20_Full_Engineering_Drawing.pdf

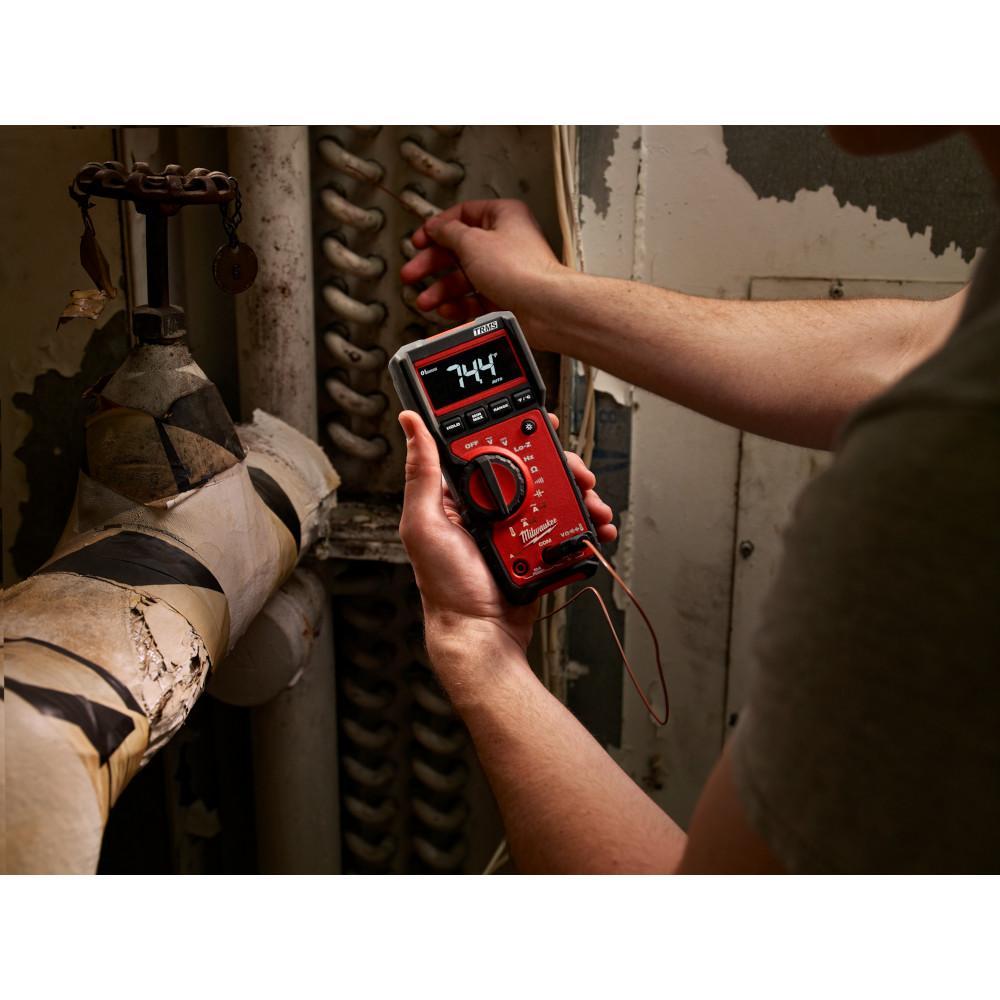

The MILWAUKEE® Digital Multimeter w/ Lo-Z is designed for professional, residential, and commercial electricians. Made with a high-contrast, white-on-black display, this meter provides the clearest readings. Equipped with TRMS and Lo-Z, the Digital Multimeter provides accurate measurements for the professional electrician. The meter is rated to CATIII 600V and meets UL safety specifications required by electrical users. This Milwaukee® meter is covered by our 5-Year Warranty.
