WATTS® 0009478

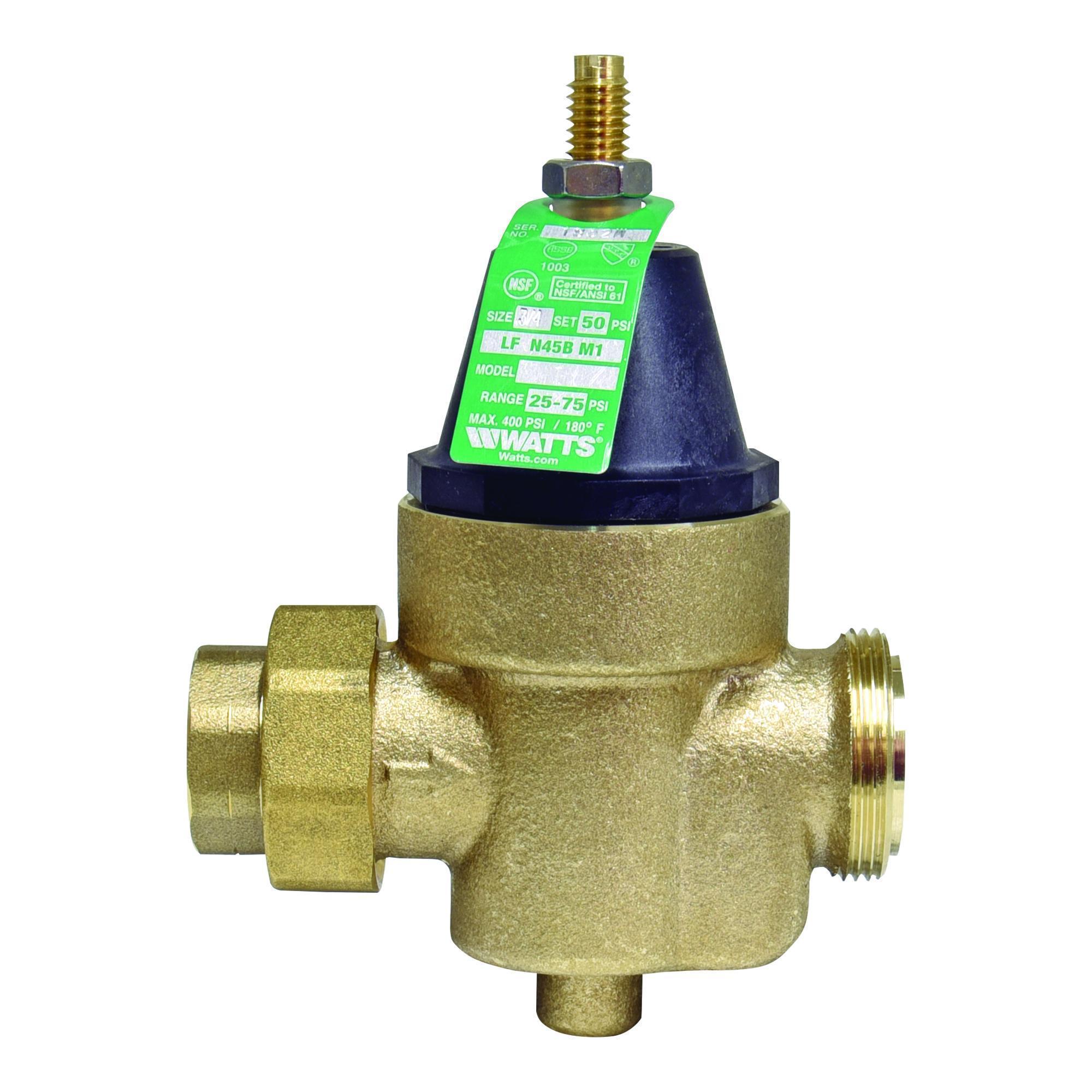

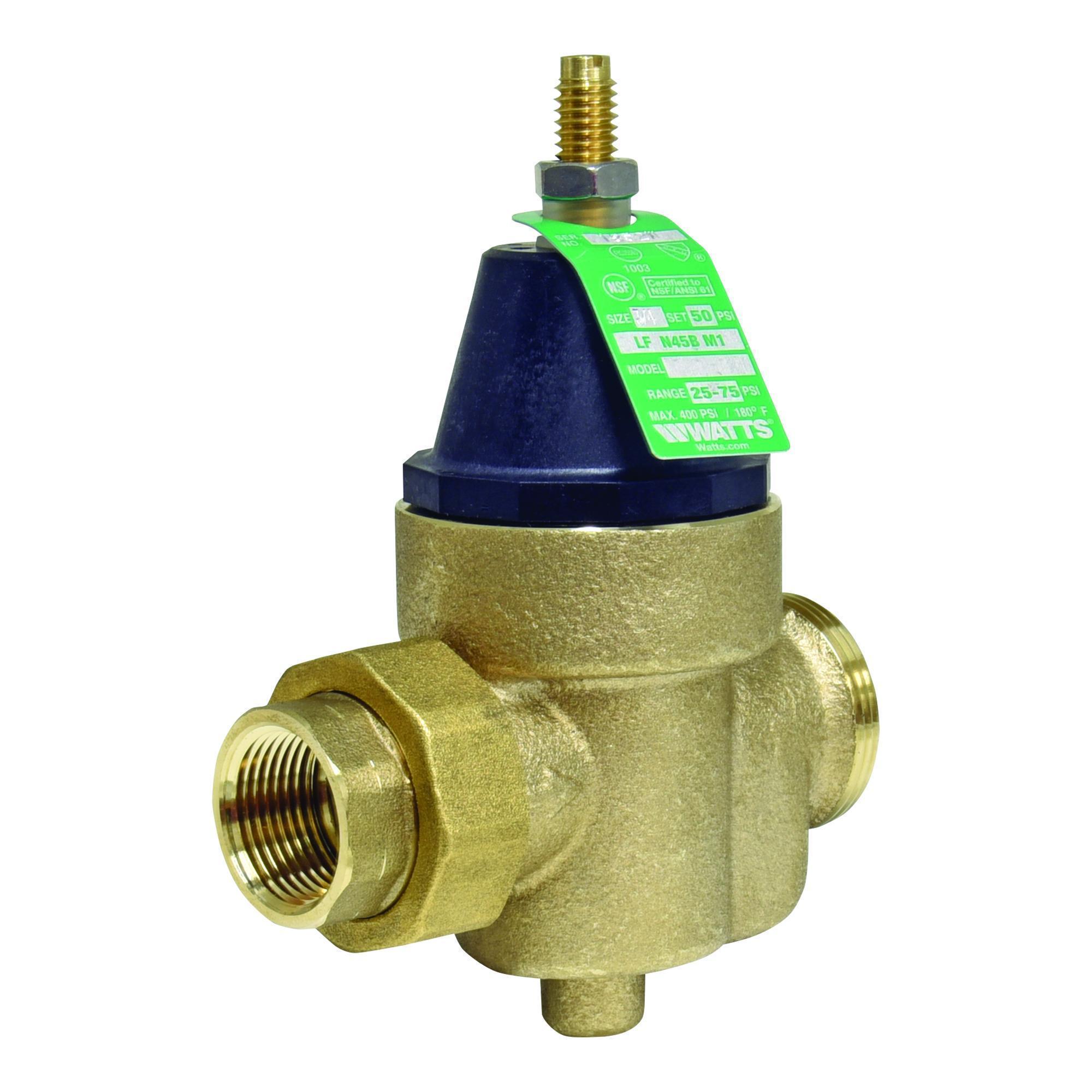

WATTS® 0009478 LFN45B Lead Free Pressure Reducing Valve, 3/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body

  • MPN: 0009478
  • TPN: 56786
  • UPC: 098268332407
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

WATTS®, 0009478, Pressure Reducing Valve, Lead Free, Series: LFN45B, 3/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 3-7/16 in Inlet to Outlet Length, 4-9/16 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Thermoplastic Seat/Reinforced EPDM Diaphragm Softgoods

Type      :      Lead Free
Series      :      LFN45B
Nominal Size      :      3/4 in
End Style      :      FNPT
Pressure Range      :      25 to 75 psi
Temperature Rating      :      33 to 180 deg F
Media      :      Water
Inlet to Outlet Length      :      3-7/16 in
Top to Inlet Center      :      4-9/16 in
Body Material      :      Cast Copper Silicon Alloy
Softgoods Material      :      Thermoplastic Seat/Reinforced EPDM Diaphragm
  • Sealed spring cage on all models for accessible outdoor or pit installations
  • Integral stainless steel strainer removable for cleaning
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_88009128_Installation_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_88009128_Specification_Sheet.pdf

This 3/4 inch lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free cast copper silicon alloy body construction, NPT threaded union inlet and NPT female outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
