WATTS® 0009309 41568
Send Print

WATTS® 0009309

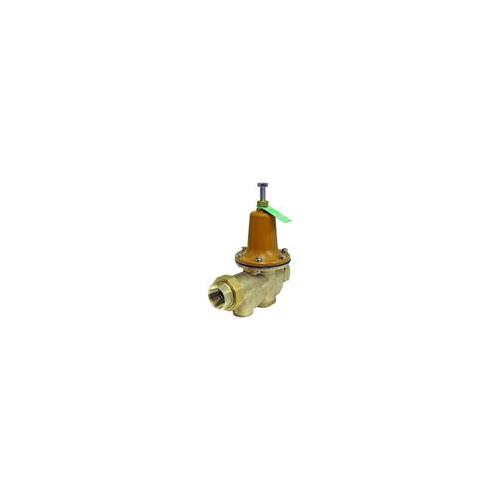

WATTS® 0009309 LF25AUB-Z3 Pressure Reducing Valve, 1 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body

  • MPN: 0009309
  • TPN: 41568
  • UPC: 098268330427
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

WATTS® Pressure Reducing Valve, Series: LF25AUB-Z3, 1 in Nominal, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 8-3/4 in Inlet to Outlet Length, 9 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat

Series      :      LF25AUB-Z3
Nominal Size      :      1 in
End Style      :      FNPT Union x FNPT
Pressure Range      :      25 to 75 psi
Temperature Rating      :      33 to 160 deg F
Media      :      Water
Inlet to Outlet Length      :      8-3/4 in
Top to Inlet Center      :      9 in
Body Material      :      Cast Copper Silicon Alloy
Softgoods Material      :      Reinforced EPDM Diaphragm/Polymer Seat
  • Integral stainless steel strainer removable for cleaning
  • Replaceable seat module
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • Sealed spring cage with stainless steel cage screws
  • Temperature range is 33 to 180 deg F
  • Designed to reduce incoming water pressure to protect plumbing systems
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_9392_Installation_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_9392_Specification_Sheet.pdf

This 1 inch lead free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
