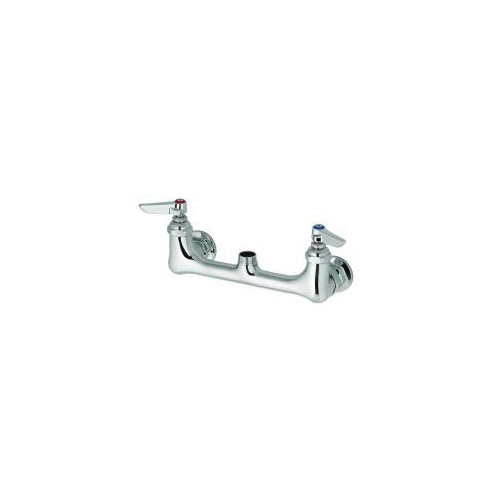

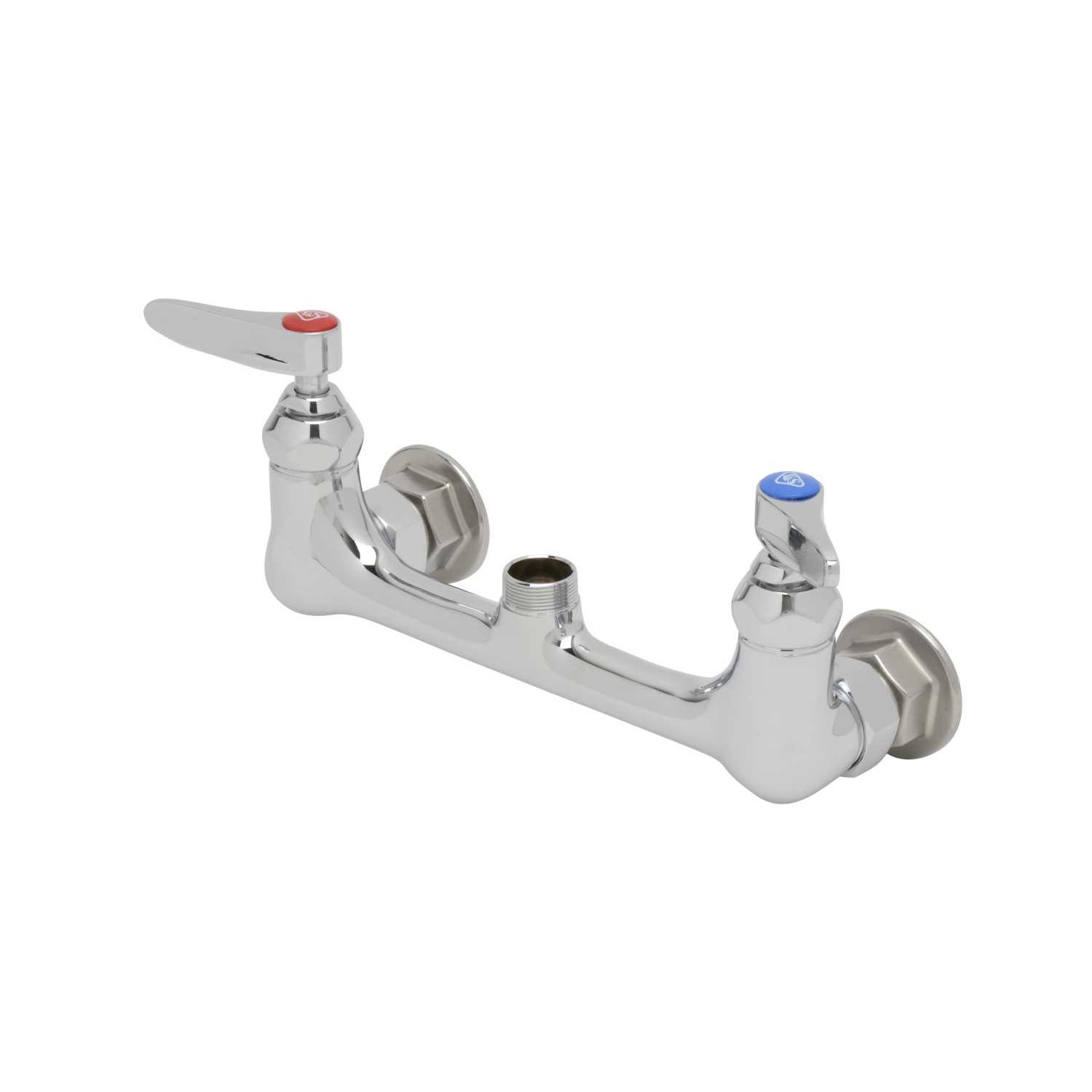

T & S Sink Mixing Faucet, 28.63 gpm Flow Rate, 8 in Center Distance, Swivel Spout, Lever Handle, 2 Handles, Side Spray(Y/N): No, 2 Faucet Holes, 1/2 in Connection, FNPT Connection, 3-1/8 in Maximum Deck Thickness, Wall Mounting, Eterna Compression, 12-1/2 in W Dimensions, Brass, Polished Chrome, Domestic
| Flow Rate | : | 28.63 gpm |
| Center Distance | : | 8 in |
| Spout Type | : | Swivel |
| Number of Handles | : | 2 |
| Number of Faucet Holes | : | 2 |
| Connection Size | : | 1/2 in |
| Connection Type | : | FNPT |
| Maximum Deck Thickness | : | 3-1/8 in |
| Mounting Type | : | Wall |
| Valve/Cartridge Type | : | Eterna Compression |
| Dimensions | : | 12-1/2 in W |
| Material | : | Brass |
| Finish/Color | : | Polished Chrome |
| Domestic/Import | : | Domestic |
- Swivel outlet accepts T&S swing nozzles
- Lever handle with color coded indexes
- 1/2 in NPT female eccentric inlets with 2 in diameter flanges
- Adjustable centers from 7-3/4 in to 8-1/4 in
- 40 to 160 deg F operating
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
Specification Sheet
