WATTS® 0559119

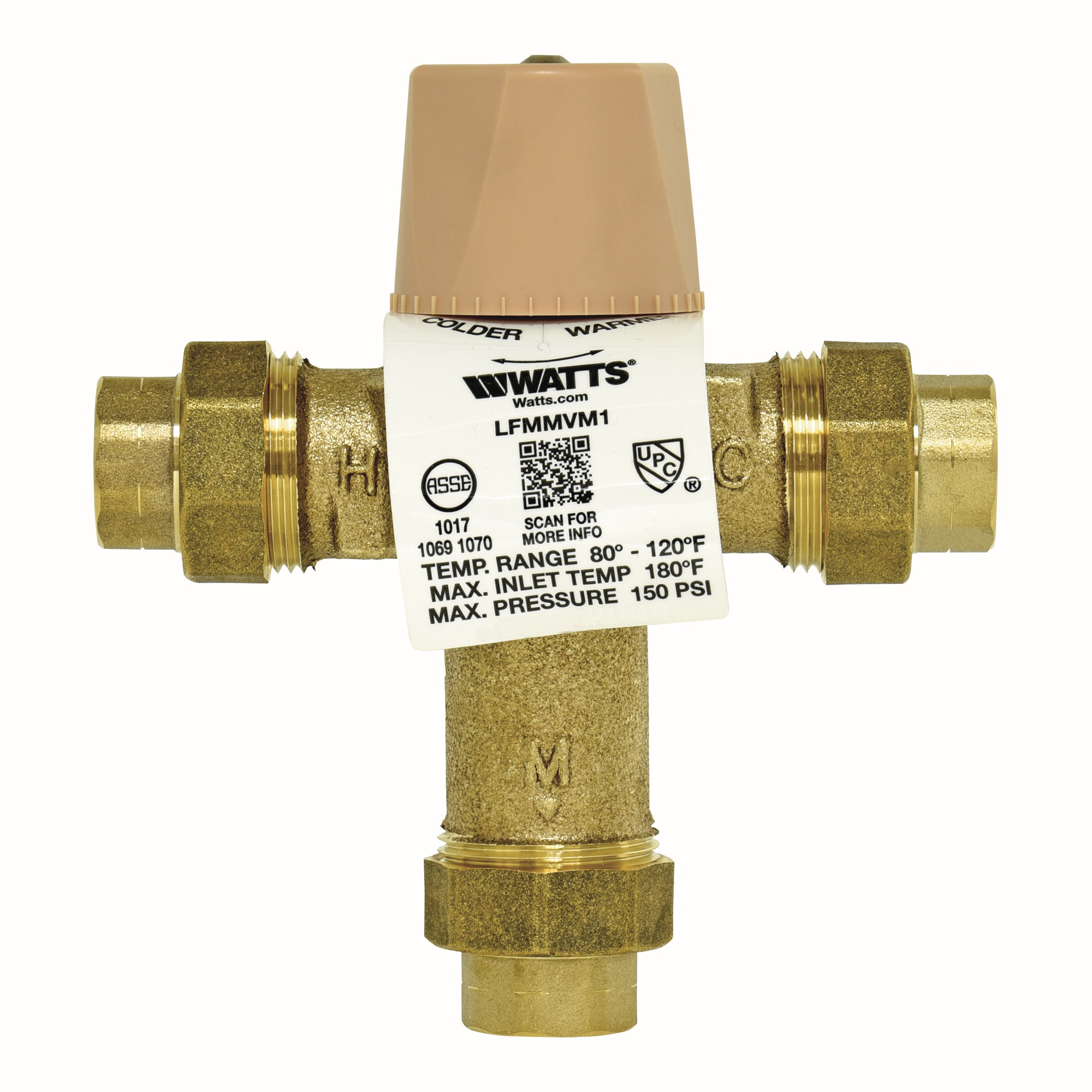

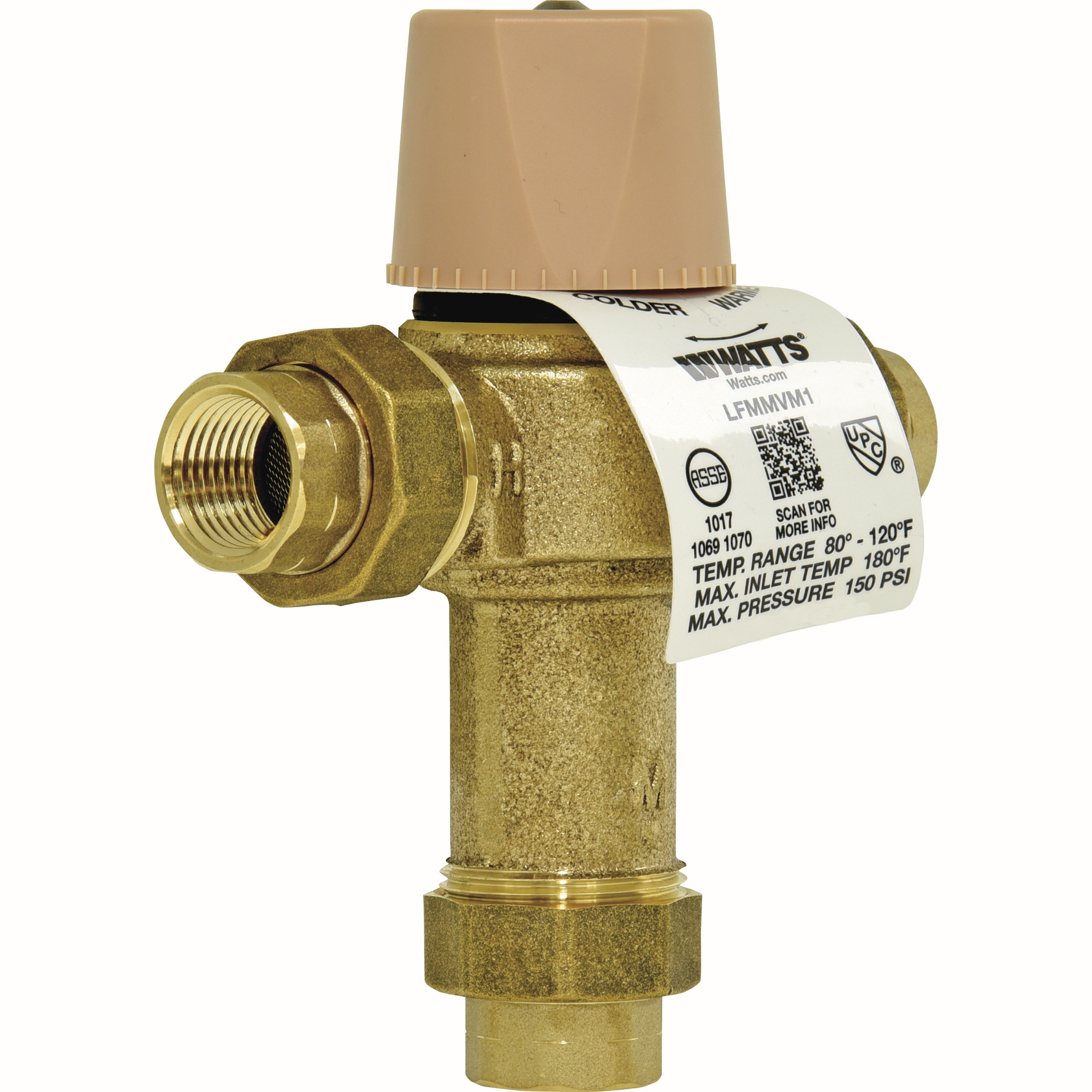

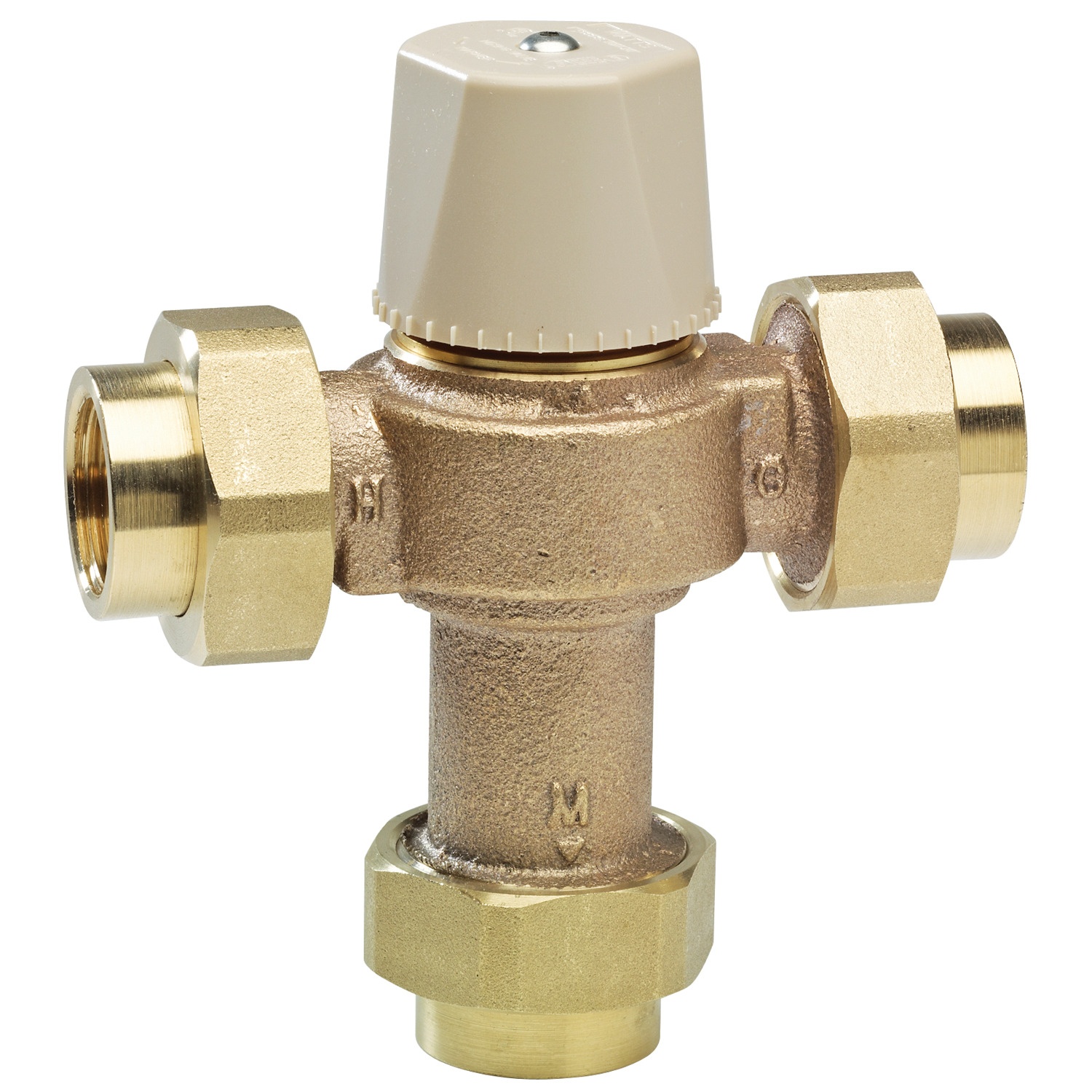

WATTS® 0559119 LFMMV Thermostatic Mixing Valve, 3/4 in Nominal, FNPT End Style, 150 psi Pressure, 0.5 to 20 gpm Flow, Copper Silicon Alloy Body

  • MPN: 0559119
  • TPN: 41569
  • UPC: 098268451825
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

WATTS® Thermostatic Mixing Valve, Series: LFMMV, 3/4 in Nominal, FNPT, 150 psi, 80 to 120 deg F, 0.5 to 20 gpm Flow, Media: Hot/Cold Water, Copper Silicon Alloy Body, Buna-N®/EPDM O-Ring

Series      :      LFMMV
Nominal Size      :      3/4 in
End Style      :      FNPT
Pressure Rating      :      150 psi
Temperature Rating      :      80 to 120 deg F
Flow Capacity      :      0.5 to 20 gpm
Media      :      Hot/Cold Water
Body Material      :      Copper Silicon Alloy
Softgoods Material      :      Buna-N®/EPDM O-Ring
  • Thermal actuation technology for precise temperature control
  • Locking mechanism secures temperature setting
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_0559117_Specification_Sheet.pdf
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_559119_Catalog.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_559119_Installation_Manual.pdf

This 3/4 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free copper silicon alloy body, threaded union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).
