Bradford White® RG150T6X-500 106268
Send Print

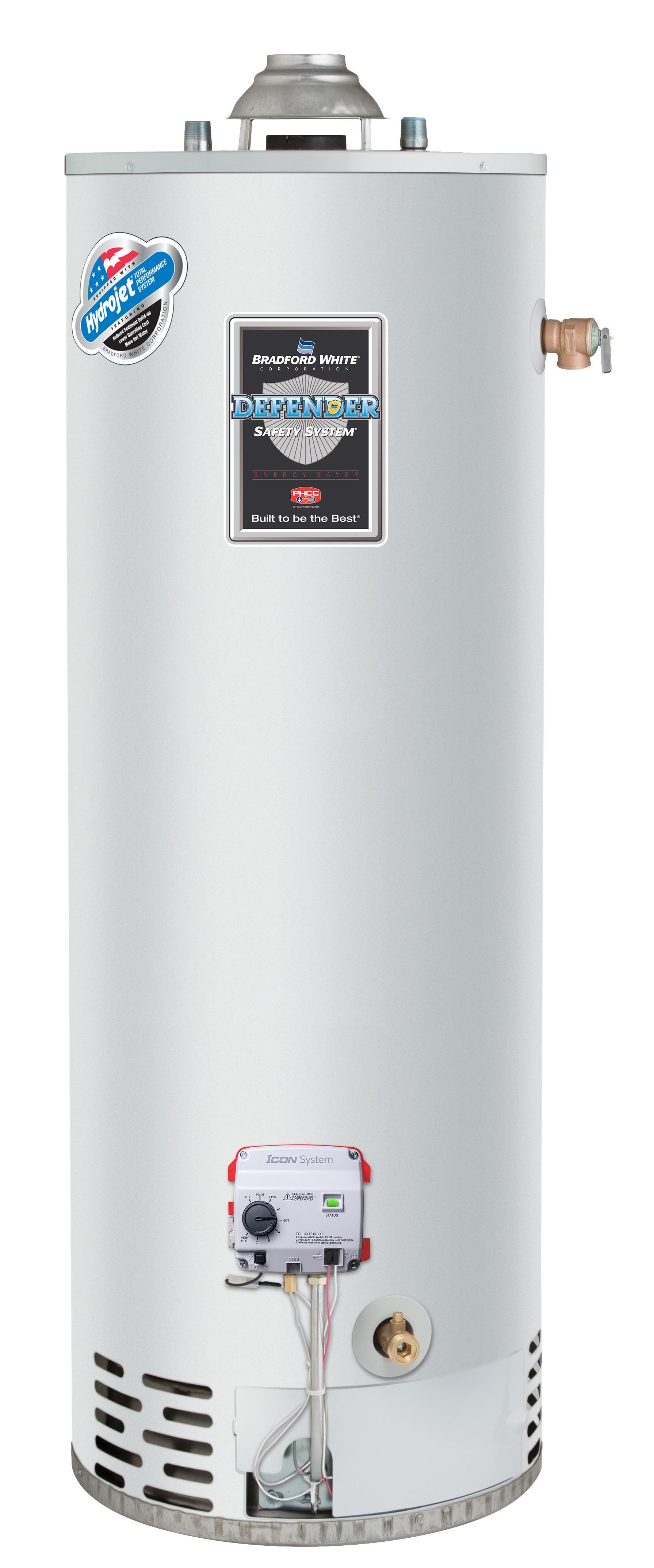

Bradford White® RG150T6X-500

Bradford White® RG150T6X-500 Gas Water Heater, 34000 Btu/hr Heating, 50 gal Tank, Liquid Propane Fuel, Atmospheric Vent, 37 gph at 90 deg F Rise Recovery, Tall, Domestic

  • MPN: RG150T6X-500
  • TPN: 106268
  • UPC: 671632905638
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Bradford White® Gas Water Heater, 34000 Btu/hr Heating, Liquid Propane, 1/2 in NPT Gas Connection, 50 gal Tank, Piezo Ignition, Atmospheric Vent, 3 in Vent, 37 gph at 90 deg F Rise Recovery, 0.63 Energy Factor, Surface Mount, 3/4 in NPT Water Connection, 150 psi, 160 deg F, Tall or Short: Tall, Ultra Low Nox: No, Steel, Vitraglas®, 20 in Dia x 23-1/2 in D x 60-1/8 in H, Domestic

Heating Capacity      :      34000 Btu/hr
Fuel Type      :      Liquid Propane
Gas Connection      :      1/2 in NPT
Tank Capacity      :      50 gal
Ignition Type      :      Piezo
Vent Type      :      Atmospheric
Vent Size      :      3 in
Recovery Rate      :      37 gph at 90 deg F Rise
Energy Factor      :      0.63
Mounting Type      :      Surface
Water Connection      :      3/4 in NPT
Pressure Rating      :      150 psi
Temperature Rating      :      160 deg F
Tall or Short      :      Tall
Ultra Low NOx      :      No
Material      :      Steel
Finish      :      Vitraglas®
Dimensions      :      20 in Dia x 23-1/2 in D x 60-1/8 in H
Domestic/Import      :      Domestic
  • Hydrojet® total performance system
  • FVIR Defender Safety System® featuring the patented advanced ScreenLok® technology flame arrestor design
  • Heat traps
  • Protective magnesium anode rod
  • Low restrictive brass drain valve
  • 1 in THK non-CFC foam insulation
  • White Rodgers control
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RE240L10_1NCPP_Warranty.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RG140T6X_475_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RG140T6X_475_Specification_Sheet.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RG150T6N-264_Installation_Manual.pdf
  • pdf Service Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RG150T6N-264_Service_Manual.pdf
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RG150T6N-394-600_Catalog.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RG150T6N-394-600_Installation_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RG150T6N-394-600_Specification_Sheet.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RG240T10X-394_Installation_Manual.pdf
  • pdf Owners/User Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RG240T10X-394_User_Manual.pdf
  • pdf Service Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RG240T6N-264-600_Service_Manual.pdf
  • pdf Service Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_RG250H6X_264_500_Service_Manual.pdf
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_URG2PV75H6N19_Warranty.pdf

Bradford White Defender Safety System®, 50 Gallon Tall Residential Gas (Liquid Propane) Atmospheric Vent Water Heater. 6-Year Tank Warranty, 34,000 BTU/Hr. The -500 indicates that this SKU comes with White Rodgers Mechanical Control.
