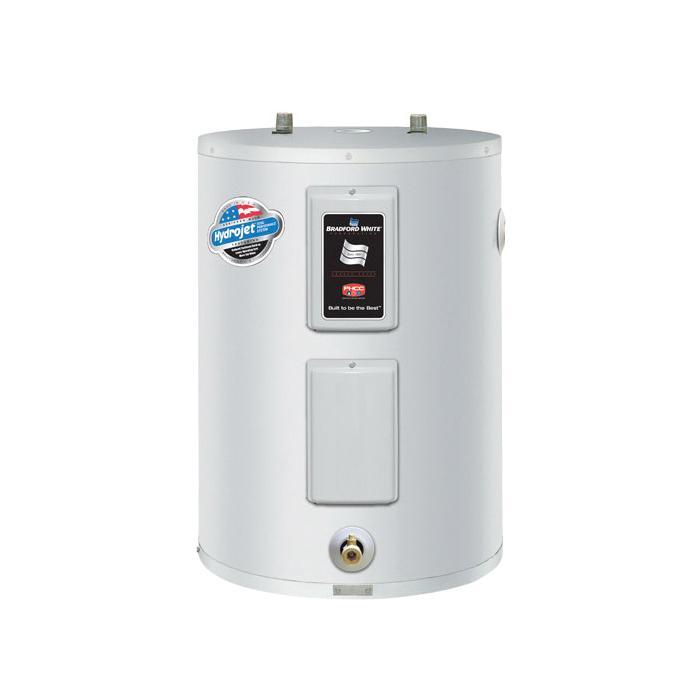

Bradford White® Electric Water Heater, Lowboy, Series: RE250L6, 47 gal Tank, 208 VAC, 4.5 kW Power, 1 ph, 3/4 in NPT Water Connection, 0.93 Energy Factor, 21 gph Recovery Rate, 150 psi Pressure, ASME Yes/No: No, Steel, 26 in Dia x 33-5/8 in H Dimensions, Domestic
| Type | : | Lowboy |
| Series | : | RE250L6 |
| Tank Capacity | : | 47 gal |
| Voltage Rating | : | 208 VAC |
| Power Rating | : | 4.5 kW |
| Phase | : | 1 |
| Water Connection | : | 3/4 in NPT |
| Energy Factor | : | 0.93 |
| Recovery Rate | : | 21 gph |
| Pressure Rating | : | 150 psi |
| ASME Yes/No | : | No |
| Material | : | Steel |
| Dimensions | : | 26 in Dia x 33-5/8 in H |
| Domestic/Import | : | Domestic |
- Low restriction brass drain valve: Durable tamper proof design
- Fully automatic controls
- Direct heat transfer with immersed element: Transfers heat directly and efficiently to the water screw-in style
- Factory installed Hydrojet® sediment reduction system
- Vitraglas® lining
- Non-CFC foam insulation
- Water connections: 3/4 in NPT factory-installed true dielectric fittings extend water heater life and simplify water line connections
- Factory installed heat traps
- Protective magnesium anode rod
- Design evaluated by ETL in accordance with part 280.707(d) of HUD mobile home construction and safety standards for energy efficiency
- Non-simultaneous operation
- Hydrojet® total performance system
Service Manual
Bradford White 47 Gallon (Blanketed) Residential Electric Lowboy Water Heater. 6-Year Tank Warranty, 4.5/3.5 kW, 240/208 Volts, Single Phase.
