Bradford White® EF100T199E3N2 690
Send Print

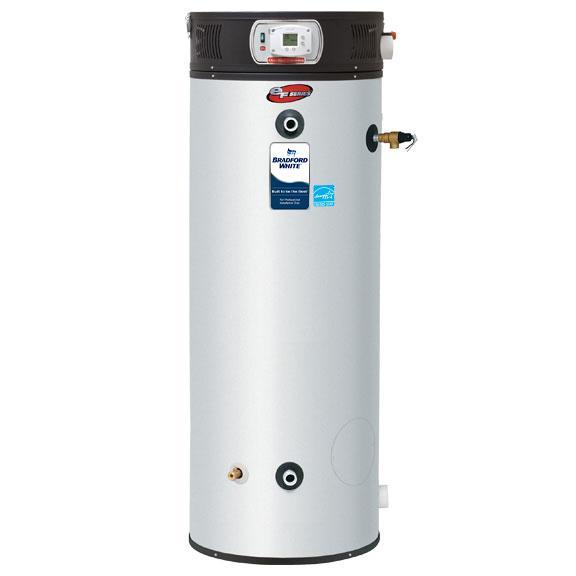

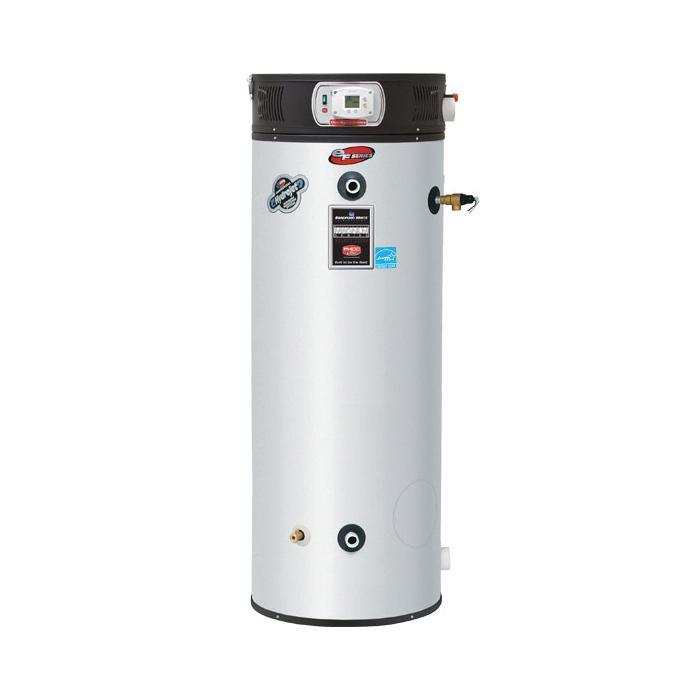

Bradford White® EF100T199E3N2

Bradford White® EF100T199E3N2 eF Series® Gas Water Heater, 100 gal Tank, Domestic, 199999 Btu/hr Heating, Natural Gas Fuel, Direct/Power Vent, 98.5 %

  • MPN: EF100T199E3N2
  • TPN: 690
  • UPC: 671632317394
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: EACH
  • Login to see Availability

Bradford White® Gas Water Heater, Series: eF Series®, 199999 Btu/hr Heating, Natural Gas, 3/4 in Gas Connection, 100 gal Tank, Direct Spark Ignition, Direct/Power Vent, 3 in Vent Size, 980 gph at 30 deg F Rise Recovery, 98.5 % Energy Efficient, 1-1/2 in NPT Water Connection, 150 psi, 180 deg F, Ultra Low NOx: Yes, ASME Yes/No: No, Steel, Vitraglas®, 28-1/4 in Dia x 85-3/8 in H, Domestic

Series      :      eF Series®
Heating Capacity      :      199999 Btu/hr
Fuel Type      :      Natural Gas
Gas Connection      :      3/4 in
Tank Capacity      :      100 gal
Ignition Type      :      Direct Spark
Vent Type      :      Direct/Power
Vent Size      :      3 in
Recovery Rate      :      980 gph at 30 deg F Rise
Energy Efficiency      :      98.5 %
Water Connection      :      1-1/2 in NPT
Pressure Rating      :      150 psi
Temperature Rating      :      180 deg F
Ultra Low NOx      :      Yes
Material      :      Steel
Finish      :      Vitraglas®
Dimensions      :      28-1/4 in Dia x 85-3/8 in H
Domestic/Import      :      Domestic
  • Thermal efficiency up to 99.1%
  • ICON HD™ - Intelligent proven design combines temperature control, diagnostic codes and system ignition functions into a single control board with a digital LCD display
  • Factory installed Hydrojet® sediment reduction system
  • Operation mode - Two different digitally displayed operation modes have the capability of adjusting the temperature setting up to 180 deg F, and adjusting the degree setting
  • Service mode - Eight different digitally displayed service modes can be easily cycled through by pressing the select button
  • Premix power burner
  • Flexible venting
  • Ultra quiet operation
  • A single exhaust pressure switch
  • 1 in NPT side connections for space heating
  • Sanitizing capability
  • Complies with the latest ultra low NOx requirement (14 ng/J NOx limit)
  • Durable tamper proof design low restriction brass drain valve
  • Ultra high efficiency gas water heater
  • Vitraglas® lining
  • -0.05 in WC
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_EF100T150_Catalog.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_EF60T150E5NA2_Manual.pdf
  • pdf Service Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_EF60T150E5NA2_Service_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_EF60T150E5NA2_Specification_Sheet.pdf
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_LE280T3_3NHTT_Warranty.pdf

ENERGY STAR Certified Bradford White High Efficiency Condensing Ultra Low NOx eF Series® 100 Gallon Commercial Gas (Natural) Water Heater. Designed for Venting Versatility, this water heater can be installed as a Power Vent or Power Direct Vent. 3-Year Tank Warranty, 199,999 BTU/Hr., 120 Volts, Single Phase, with Power Cord included.
