DELTA® Kitchen Faucet, Pull-Down, Series: Touch2O®, Essa® Collection, 1.8 gpm Flow Rate, 8 in Center Distance, Swivel Spout, 9-1/4 in Spout Reach, 15-3/4 in Spout Height, Lever Handle, 1 Handles, 1 Faucet Holes, 1-1/4 to 1-1/2 in Faucet Hole, 3/8 in Connection, Compression Connection, Function: Traditional, 2-1/2 in Maximum Deck Thickness, Deck Mounting, Electronic with Euro-Motion DIAMOND™ Seal Valve, Metal, Polished Chrome, Domestic
| Type | : | Pull-Down |
| Series | : | Touch2O® |
| Collection | : | Essa® |
| Flow Rate | : | 1.8 gpm |
| Center Distance | : | 8 in |
| Spout Type | : | Swivel |
| Spout Reach | : | 9-1/4 in |
| Spout Height | : | 15-3/4 in |
| Number of Handles | : | 1 |
| Number of Faucet Holes | : | 1 |
| Faucet Hole Size | : | 1-1/4 to 1-1/2 in |
| Connection Size | : | 3/8 in |
| Connection Type | : | Compression |
| Maximum Deck Thickness | : | 2-1/2 in |
| Mounting Type | : | Deck |
| Valve/Cartridge Type | : | Electronic with Euro-Motion DIAMOND™ Seal Valve |
| Material | : | Metal |
| Finish/Color | : | Polished Chrome |
| Domestic/Import | : | Domestic |
- Helps keep your faucet cleaner, because washing the mess off your hands shouldn't involve making a mess of your faucet
- LED light signals blue when touch mode is active and flash red when batteries are running low
- Automatic water flow shut-off after four minutes helps conserve water
- Integrated TempSense LED light shows water temperature, changing from blue to magenta to red as temperature increases
- Intuitive Touch2O technology can sense the difference between a touch and a grab, reducing the chances of false activation
- MagnaTite docking uses a powerful integrated magnet to snap your faucet spray wand precisely into place and hold it there so it stays docked when not in use and doesn't droop over time
- Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up with the touch of a finger
- Diamond Seal Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
- High-arc pull-down swivels 360 deg
- 1.8 gpm at 60 psi, 6.8 L/min at 414 kPa
- 3/8 in OD straight, staggered PEX supply tubes
- Red/Blue indicator markings
- Dual integral check valves in sprayer assembly

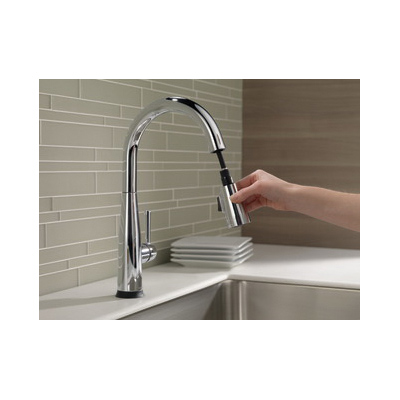

- With Touch2O Technology a simple touch anywhere on the spout or handle will start and stop the flow of water
- Battery operated 6 AA (included) with a battery life of approximately 1 year or 6 C (not included) with a battery life of approximately 3 years

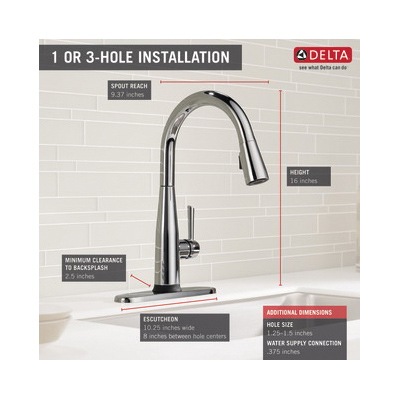

Full Engineering Drawing
Touch it on. Touch it off. Whether you have two full hands or 10 messy fingers, Delta® Touch2O® Technology helps keep your faucet clean, even when your hands aren’t. A simple touch anywhere on the spout or handle with your wrist or forearm activates the flow of water at the temperature where your handle is set. The Delta TempSense™ LED light changes color to alert you to the water’s temperature and eliminate any possible surprises or discomfort. Delta® MagnaTite® Docking uses a powerful integrated magnet to pull your faucet spray wand precisely into place and hold it there so it stays docked when not in use. Delta® faucets with DIAMOND™ Seal Technology perform like new for life with a patented design which reduces leak points, is less hassle to install and lasts twice as long as the industry standard*. Kitchen faucets with Touch-Clean® Spray Holes allow you to easily wipe away calcium and lime build-up with the touch of a finger. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty. Electronic parts are backed by our 5-year electronic parts warranty. *Industry standard is based on ASME A112.18.1 of 500,000 cycles.
