Delta® B4310LF-SS 33981
Send Print

Delta® B4310LF-SS

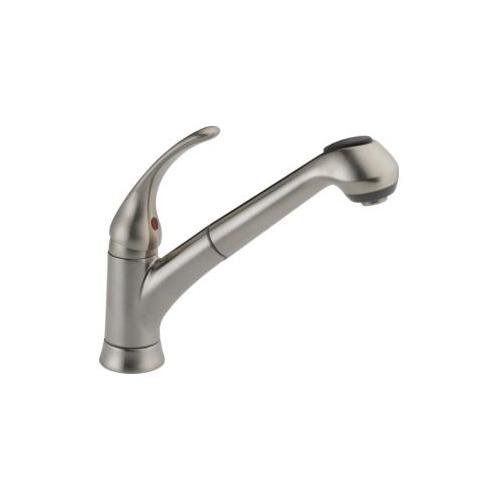

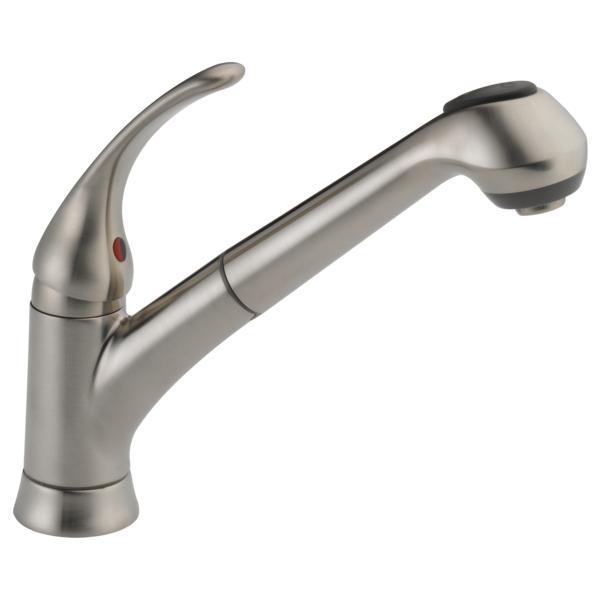

DELTA® B4310LF-SS Foundations® Kitchen Faucet, 1.8 gpm Flow Rate, Swivel Spout, Stainless Steel, 1 Handles, 1 Faucet Holes, Import

  • MPN: B4310LF-SS
  • TPN: 33981
  • UPC: 034449624466
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Login to see Availability

DELTA® Kitchen Faucet, Foundations®, 1.8 gpm, 8 in Center Distance, Swivel Spout, 8-3/4 in Spout Reach, 8-29/32 in Spout Height, Lever, 1 Handles, No Side Spray(Y/N), 1 Faucet Holes, 1-5/16 to 1-1/2 in Faucet Hole, 1/2 in, IPS, 2-1/2 in Maximum Deck Thickness, Deck Mount, Washerless Ball Valve/Cartridge, Zinc, Stainless Steel, Import

Collection      :      Foundations®
Flow Rate      :      1.8 gpm
Center Distance      :      8 in
Spout Type      :      Swivel
Spout Reach      :      8-3/4 in
Spout Height      :      8-29/32 in
Handle Style      :      Lever
Number of Handles      :      1
Number of Faucet Holes      :      1
Faucet Hole Size      :      1-5/16 to 1-1/2 in
Connection Size      :      1/2 in
Connection Type      :      IPS
Maximum Deck Thickness      :      2-1/2 in
Mounting Type      :      Deck
Valve/Cartridge Type      :      Washerless Ball
Material      :      Zinc
Finish/Color      :      Stainless Steel
Domestic/Import      :      Import
  • Pull-out spout swivels 120 deg
  • 1.8 gpm at 60 psi, 6.8 L/min at 414 kPa
  • All operating parts shall be replaceable from the top
  • Lever handle control mechanism is the rotating stainless steel ball type with replaceable non-metallic seats
  • Control handle shall return to neutral position when valve is turned off
  • Integral double check valves in spout
  • 59 in long hose provides outstanding reach
  • pdf Full Engineering Drawing https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DELTA_B4310LF-SS_Full_Engineering_Drawing.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DELTA_B4310LF-SS_Installation_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/DELTA_B4310LF-SS_Specification_Sheet.pdf
  • pdf Line Drawing https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Delta_Faucet_B4310LF_Line_Drawing.pdf

You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
