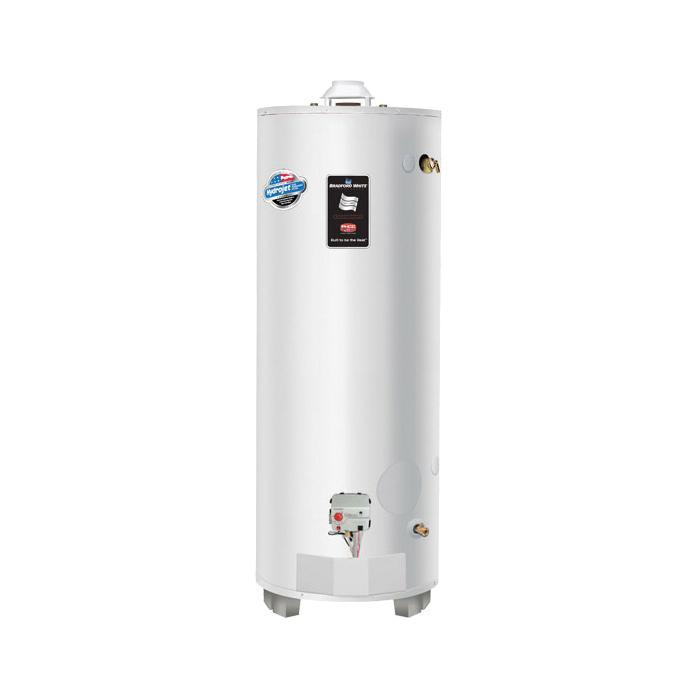

Bradford White® Gas Water Heater, High Input, 76000 Btu/hr Heating, Natural Gas Fuel, 1/2 in Gas Connection, 75 gal Tank, Piezo Ignition, Atmospheric Vent, 4 in Vent, 82 gph Recovery Rate, 0.59 Energy Factor, 1 in NPT Water Connection, 150 psi Pressure, Ultra Low Nox: No, 26 in Dia x 29-1/2 in D x 62-5/8 in H Dimensions, Domestic
| Type | : | High Input |
| Heating Capacity | : | 76000 Btu/hr |
| Fuel Type | : | Natural Gas |
| Gas Connection | : | 1/2 in |
| Tank Capacity | : | 75 gal |
| Ignition Type | : | Piezo |
| Vent Type | : | Atmospheric |
| Vent Size | : | 4 in |
| Recovery Rate | : | 82 gph |
| Energy Factor | : | 0.59 |
| Water Connection | : | 1 in NPT |
| Pressure Rating | : | 150 psi |
| Ultra Low NOx | : | No |
| Dimensions | : | 26 in Dia x 29-1/2 in D x 62-5/8 in H |
| Domestic/Import | : | Domestic |
- Bradford White® ICON System™: Intelligent gas control with proven millivolt powered technology and built-in piezo igniter off the shelf thermopile converts heat energy from the pilot flame into electrical energy to operate the gas valve and microprocessor, no need for external electricity
- Enhanced performance: Proprietary algorithms provide enhanced first hour delivery rating and tighter temperature differentials
- Advanced temperature control system: Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
- Intelligent diagnostics: An exclusive green led light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting
- Pilot on indication: Flashing green led provides positive indication that pilot is on
- Separate immersed thermowell: High strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve
- Factory installed Hydrojet® total performance system
- Vitraglas® lining
- Side connect model: 3/4 in NPT tapping's that allow easy connections for space heating applications
- Insulation system: Non-CFC foam covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity
- Pedestal base
- Water connections: Factory installed true dielectric fittings extend water heater life and simplify water line connections
- Protective magnesium anode rod: Provide added protection against corrosion for long-term, trouble free service
- Low restriction brass drain valve: Durable tamper proof design
- NOx emission: Less than 40 ng/J
Warranty Information
Bradford White 75 Gallon High Input Residential Gas (Natural) Atmospheric Vent Water Heater. 6-Year Tank Warranty, 76,000 BTU/Hr.
