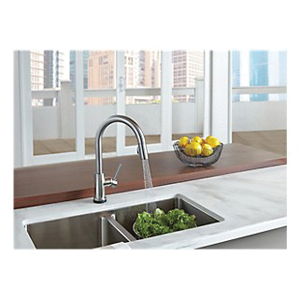

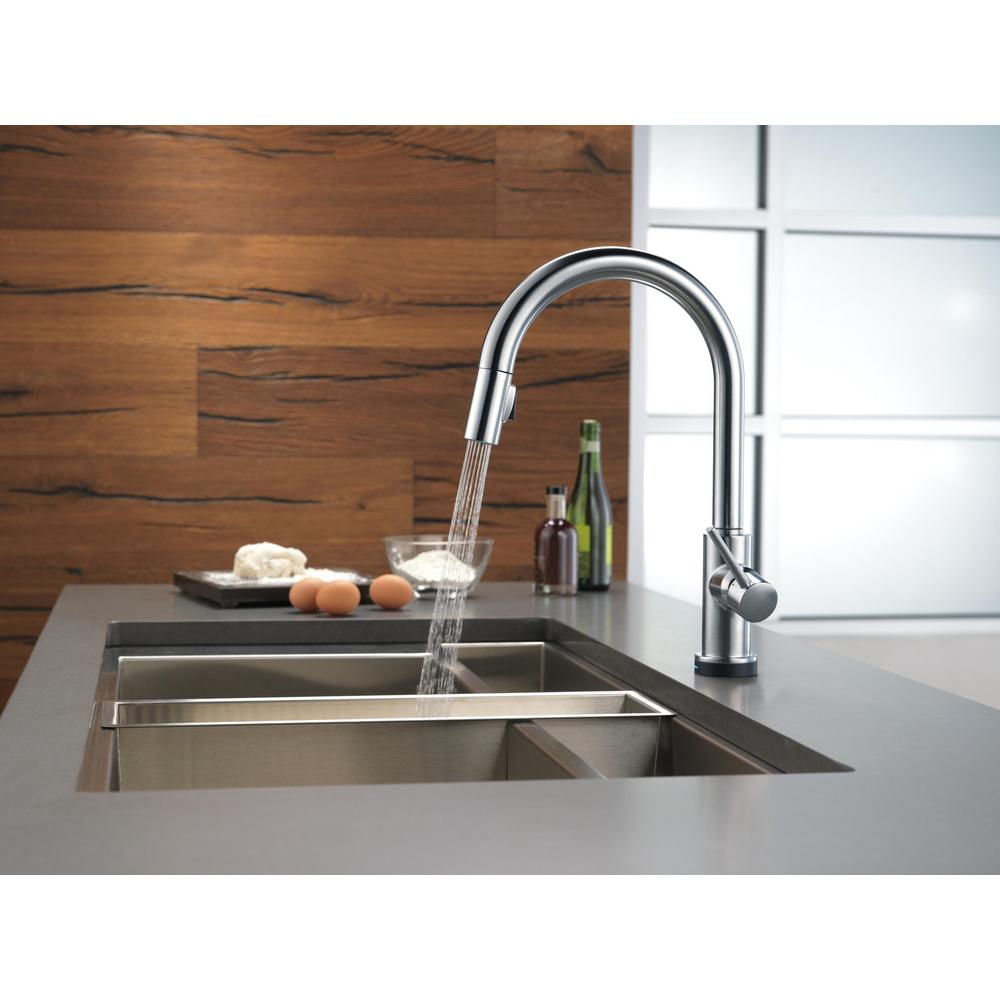

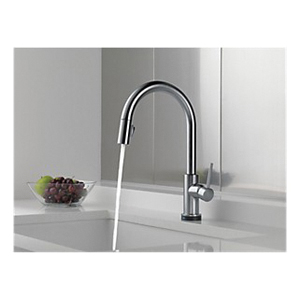

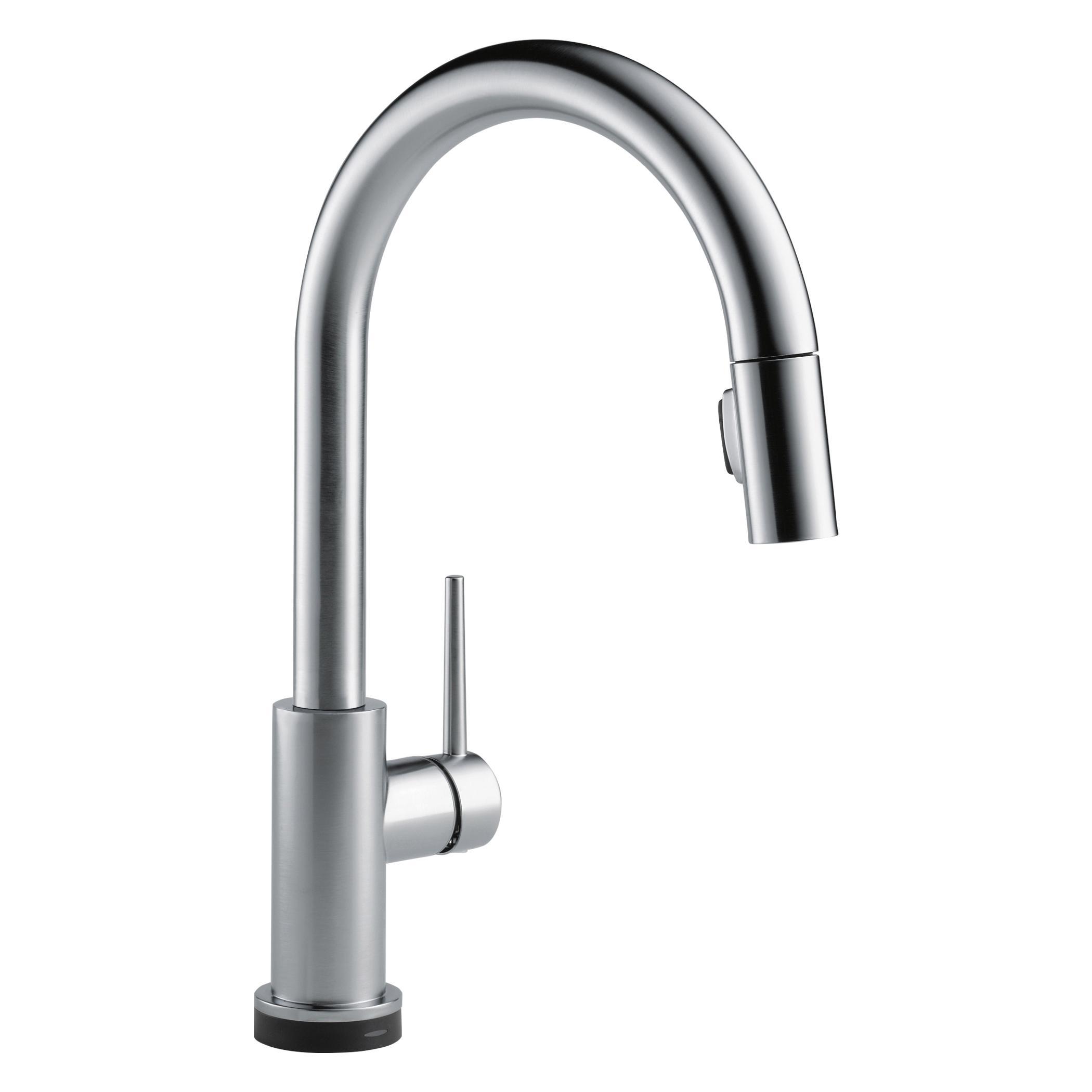

DELTA® Kitchen Faucet, Trinsic® Collection, 1.8 gpm Flow Rate, 8 in Center Distance, Pull-Down Diverter Spout, 9-1/2 in Spout Reach, 15-11/16 in Spout Height, 62 in Hose, Lever Handle, 1 Handles, 1 or 3 Faucet Holes, 3/8 in Connection, Compression Connection, Spray Pattern: Aerated Stream/Full Body, Function: Traditional, 2 Spray Functions, 3 in Maximum Deck Thickness, Deck Mounting, Euro-Motion DIAMOND™ Seal Valve, Arctic™ Stainless Steel, Domestic, Commercial Commercial/Residential
| Collection | : | Trinsic® |
| Flow Rate | : | 1.8 gpm |
| Center Distance | : | 8 in |
| Spout Type | : | Pull-Down Diverter |
| Spout Reach | : | 9-1/2 in |
| Spout Height | : | 15-11/16 in |
| Hose Size | : | 62 in |
| Power Source | : | (6) AA Battery |
| Connection Size | : | 3/8 in |
| Connection Type | : | Compression |
| Handle Style | : | Lever |
| Number of Handles | : | 1 |
| Number of Faucet Holes | : | 1 or 3 |
| Spray Pattern | : | Aerated Stream/Full Body |
| Number of Spray Functions | : | 2 |
| Maximum Deck Thickness | : | 3 in |
| Mounting Type | : | Deck |
| Valve/Cartridge Type | : | Euro-Motion DIAMOND™ Seal Valve |
| Finish/Color | : | Arctic™ Stainless Steel |
| Domestic/Import | : | Domestic |
| Commercial/Residential | : | Commercial |
- Inspired by the sleek elegance of modern European design, the Trinsic bath collection completes the look of any contemporary bath, from classic to rustic
- Touch activated faucet featuring touch
- Automatic water flow shut-off after four minutes if the water is left running
- Battery box can be mounted to cabinet with included mounting hardware
- MagnaTite docking keeps the kitchen pull-down spray wand firmly in place with a powerful integrated magnet, so it stays docked when not in use
- DIAMOND Seal technology features a valve embedded with diamonds to ensure like new operation for the life of the faucet
- Touch-Clean spray holes allow for easy removal of hard water buildup
- High-arc pull-down swivels 360 deg for complete sink access

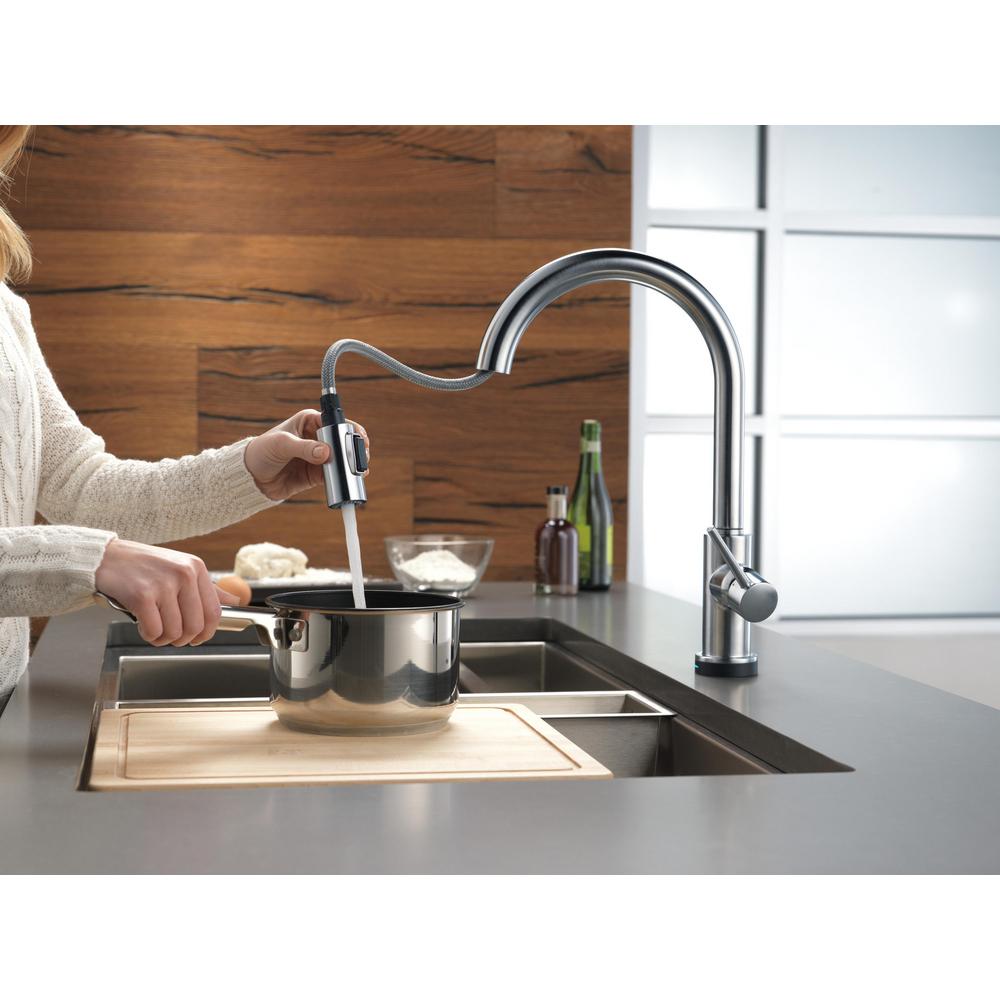

- Pull-down wand operates in an aerated or spray mode via ergonomic button
- 62 in long hose provides outstanding reach
- 3/8 in OD straight, staggered PEX supply lines
- Red/blue indicator markings
- 1.8 gpm at 60 psi
- With Touch2O Technology a simple touch anywhere on the spout or handle will start and stop the flow of water
- Helps keep your faucet cleaner, because washing the mess off your hands shouldn't involve making a mess of your faucet
- LED light signals blue when touch mode is active and flash red when batteries are running low
- Integrated TempSense LED light shows water temperature, changing from blue to magenta to red as temperature increases
- Battery operated 6 AA (included) with a battery life of approximately 1 year or 6 C (not included) with a battery life of approximately 3 years
- Intuitive Touch2O Technology can sense the difference between a touch and a grab, reducing the chances of false activation
Full Engineering Drawing
Touch it on. Touch it off. Whether you have two full hands or 10 messy fingers, Delta® Touch2O® Technology helps keep your faucet clean, even when your hands aren’t. A simple touch anywhere on the spout or handle with your wrist or forearm activates the flow of water at the temperature where your handle is set. The Delta TempSense™ LED light changes color to alert you to the water’s temperature and eliminate any possible surprises or discomfort. Delta® MagnaTite® Docking uses a powerful integrated magnet to pull your faucet spray wand precisely into place and hold it there so it stays docked when not in use. Delta® faucets with DIAMOND™ Seal Technology perform like new for life with a patented design which reduces leak points, is less hassle to install and lasts twice as long as the industry standard*. Kitchen faucets with Touch-Clean® Spray Holes allow you to easily wipe away calcium and lime build-up with the touch of a finger. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty. Electronic parts are backed by our 5-year electronic parts warranty. *Industry standard is based on ASME A112.18.1 of 500,000 cycles.
