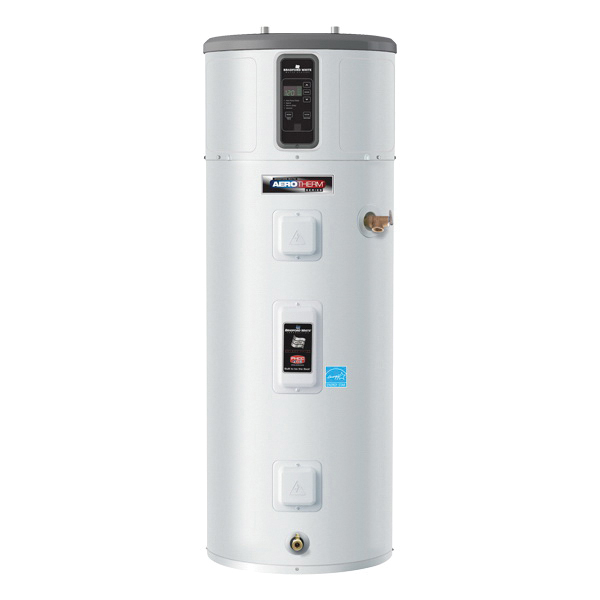

Bradford White®, RE2H80T10-1NCWT, Heater, Series: AeroTherm®, 80 gal Tank, 240/208 VAC, 4.5/3 kW Power, 1 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 3.48 Energy Factor, 21/14 gph at 90 deg F Rise Recovery Rate, 150 psi Pressure, 35 to 120 deg F, Steel, Vitraglas®, 25 in Dia x 73-1/2 in H Dimensions, Domestic
| Series | : | AeroTherm® |
| Tank Capacity | : | 80 gal |
| Voltage Rating | : | 240/208 VAC |
| Amperage Rating | : | 30 A |
| Power Rating | : | 4.5/3 kW |
| Phase | : | 1 |
| Water Connection | : | 3/4 in NPT |
| Heating Element | : | Screw-In Copper |
| Energy Factor | : | 3.48 |
| Recovery Rate | : | 21/14 gph at 90 deg F Rise |
| Pressure Rating | : | 150 psi |
| Temperature Rating | : | 35 to 120 deg F |
| ASME Yes/No | : | No |
| Material | : | Steel |
| Finish | : | Vitraglas® |
| Dimensions | : | 25 in Dia x 73-1/2 in H |
| Domestic/Import | : | Domestic |
- The AeroTherm® series control panel
- Operating modes offer flexibility
- Quiet operation
- Can be laid down for easier transportation
- Easily accessible top mounted washable air filter
- Backup electric heating elements
- Direct heat transfer with immersed elements
- 2 in THK non-CFC foam insulation
- Protective magnesium alloy anode rod
- Northern climate tier three capable
- Low restrictive brass drain valve
Catalog
ENERGY STAR® certified, AeroTherm™ Series water heaters are eligible for most rebate programs throughout the country resulting in initial savings to the consumer. Efficiencies up to 3.1 EF (Energy Factor) result in significant energy and money savings throughout product lifetime. First hour delivery ratings up to 92 gph and ultra-quiet operation ensure consumers get exceptional performance to meet their demands for hot water. And with four user-selectable operation modes (Heat Pump, Hybrid, Electric, Vacation), the new AeroTherm™ Series gives consumers greater control over their water heater's energy consumption.
