Bradford White® LE230S3-3NCWW 80999
Send Print

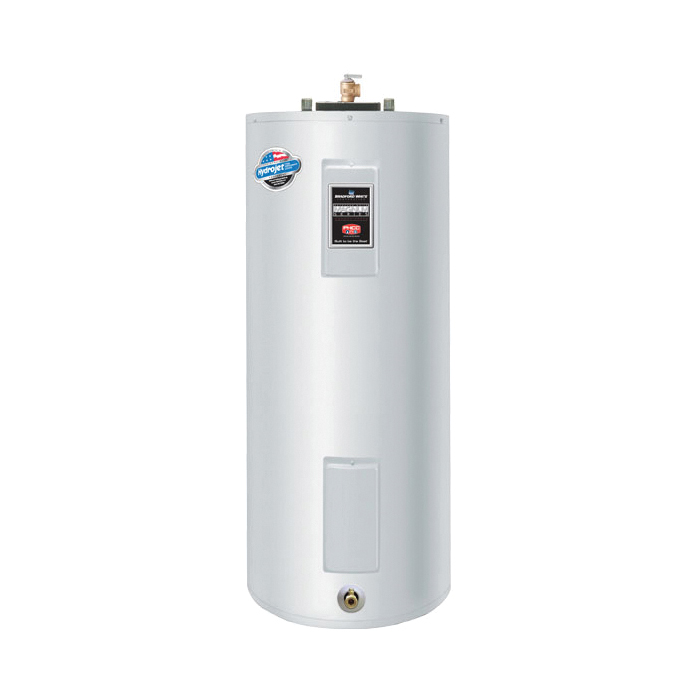

Bradford White® LE230S3-3NCWW

Bradford White® ElectriFLEX LD™ LE230S3-3NCWW Light Duty Upright Electric Water Heater, 30 gal Tank, 4.5 kW Power Rating, 208 VAC, 3 Phase , Short

  • MPN: LE230S3-3NCWW
  • TPN: 80999
  • UPC: 671632805884
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 1/PK
  • Login to see Availability

Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Upright, Series: LE230S3-3, 30 gal Tank, 208 VAC, 4.5 kW Power, 3 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 18 gph Recovery Rate, 150 psi Pressure, Short Tall or Short, ASME Yes/No: No, Steel, 18 in Dia x 48-1/8 in H Dimensions, Domestic

Type      :      Light Duty Upright
Series      :      LE230S3-3
Tank Capacity      :      30 gal
Voltage Rating      :      208 VAC
Power Rating      :      4.5 kW
Phase      :      3
Water Connection      :      3/4 in NPT
Heating Element      :      Screw-In Copper
Recovery Rate      :      18 gph
Pressure Rating      :      150 psi
Tall or Short      :      Short
ASME Yes/No      :      No
Material      :      Steel
Dimensions      :      18 in Dia x 48-1/8 in H
Domestic/Import      :      Domestic
  • Fully automatic thermostat control: Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
  • Direct heat transfer with immersed element: Transfers heat directly and efficiently to the water screw-in style
  • Factory installed Hydrojet® sediment reduction system
  • Vitraglas® lining
  • Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
  • Insulation system: 2 in non-CFC foam insulation covers the sides and top of the tank, reducing the amount of heat loss
  • Results in less energy consumption, improved operation efficiencies and jacket rigidity
  • Water connection: 3/4 in NPT factory installed true dielectric fittings extend water heater life and eases installation
  • Factory installed heat traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
  • Protective magnesium rod: Provides added protection against corrosion for long trouble free service
  • Steel tank: Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining
  • Field convertible: Units are shipped from factory standard 3 ph, non-simultaneous and can be converted to 1 ph and/or simultaneous operation in the field
  • Copper screw type immersion element
  • Hydrojet® total performance system
  • Non-simultaneous
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_120A-12-3-103G-AA_Catalog.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_LE280T3_3NHTT_Manual.pdf
  • pdf Service Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_LE280T3_3NHTT_Service_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_LE280T3_3NHTT_Specification_Sheet.pdf
  • pdf Warranty Information https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bradford_White_LE280T3_3NHTT_Warranty.pdf

Light Duty upright models, with available capacities from 30 to 119 gal, are the perfect choice for many moderate commercial applications and are field convertible for various wiring configurations.
