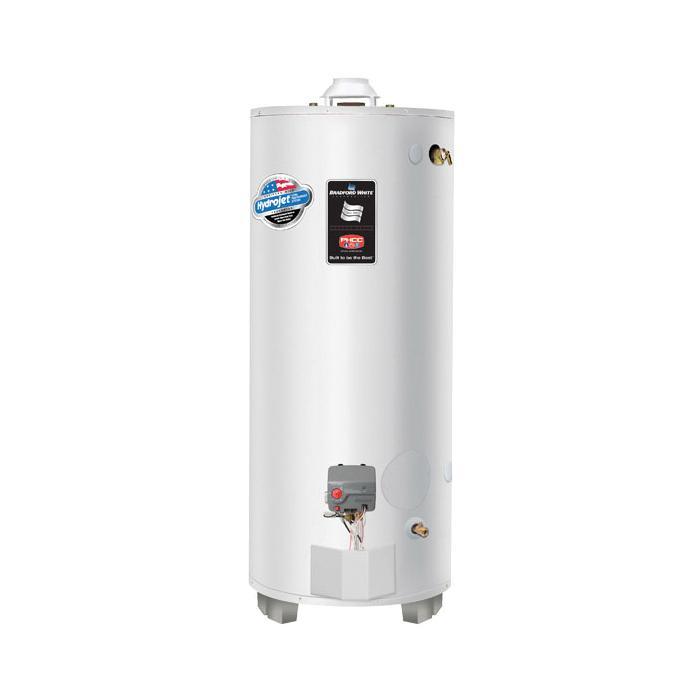

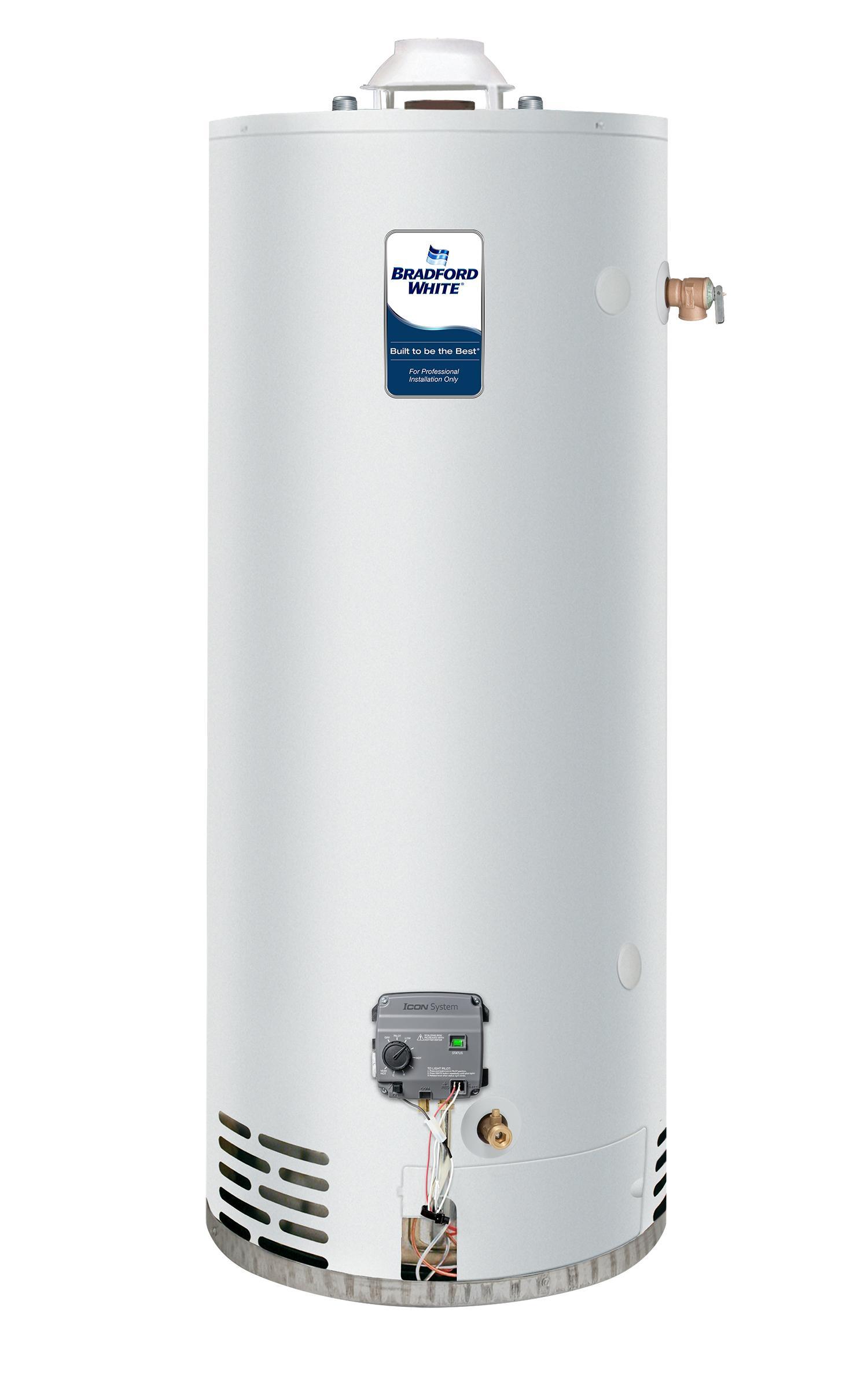

Bradford White® Gas Water Heater, 76000 Btu/hr Heating, Natural Gas, 1/2 in Gas Connection, 75 gal Tank, Piezo Ignition, Atmospheric Vent, 4 in Vent Size, 74 gph at 100 deg F Rise Recovery, 3/4 in NPT Water Connection, 150 psi, 180 deg F, Ultra Low NOx: No, ASME Yes/No: No, Steel, Vitraglas®, 24 in Dia x 62-5/8 in H, Domestic
| Heating Capacity | : | 76000 Btu/hr |
| Fuel Type | : | Natural Gas |
| Gas Connection | : | 1/2 in |
| Tank Capacity | : | 75 gal |
| Ignition Type | : | Piezo |
| Vent Type | : | Atmospheric |
| Vent Size | : | 4 in |
| Recovery Rate | : | 74 gph at 100 deg F Rise |
| Water Connection | : | 3/4 in NPT |
| Pressure Rating | : | 150 psi |
| Temperature Rating | : | 180 deg F |
| Ultra Low NOx | : | No |
| Material | : | Steel |
| Finish | : | Vitraglas® |
| Dimensions | : | 24 in Dia x 62-5/8 in H |
| Domestic/Import | : | Domestic |
- Bradford White® ICON System™ intelligent gas control with proven millivolt powered technology and built-in piezo igniter
- Enhanced performance
- Advanced temperature control system
- Intelligent diagnostics
- Pilot on indication
- Separate immersed thermowell
- Factory installed Hydrojet® 2 ™ sediment reduction system
- Vitraglas® lining
- Side connection - 3/4 in NPT tappings that allow easy connections for space heating applications
- Non-CFC foam insulation
- Water connections - Factory installed true dielectric fittings extend water heater life and simplify water line connections
- Protective magnesium anode rod
- 4 in snap lock draft diverter
- Low restriction brass drain valve
- Light duty atmospheric vent high input gas water heater
- 4 in WC
Catalog
Bradford White 75 Gallon Light-Duty Commercial Gas (Natural) Atmospheric Vent Water Heater. 3-Year Tank Warranty, 76,000 BTU/Hr.
