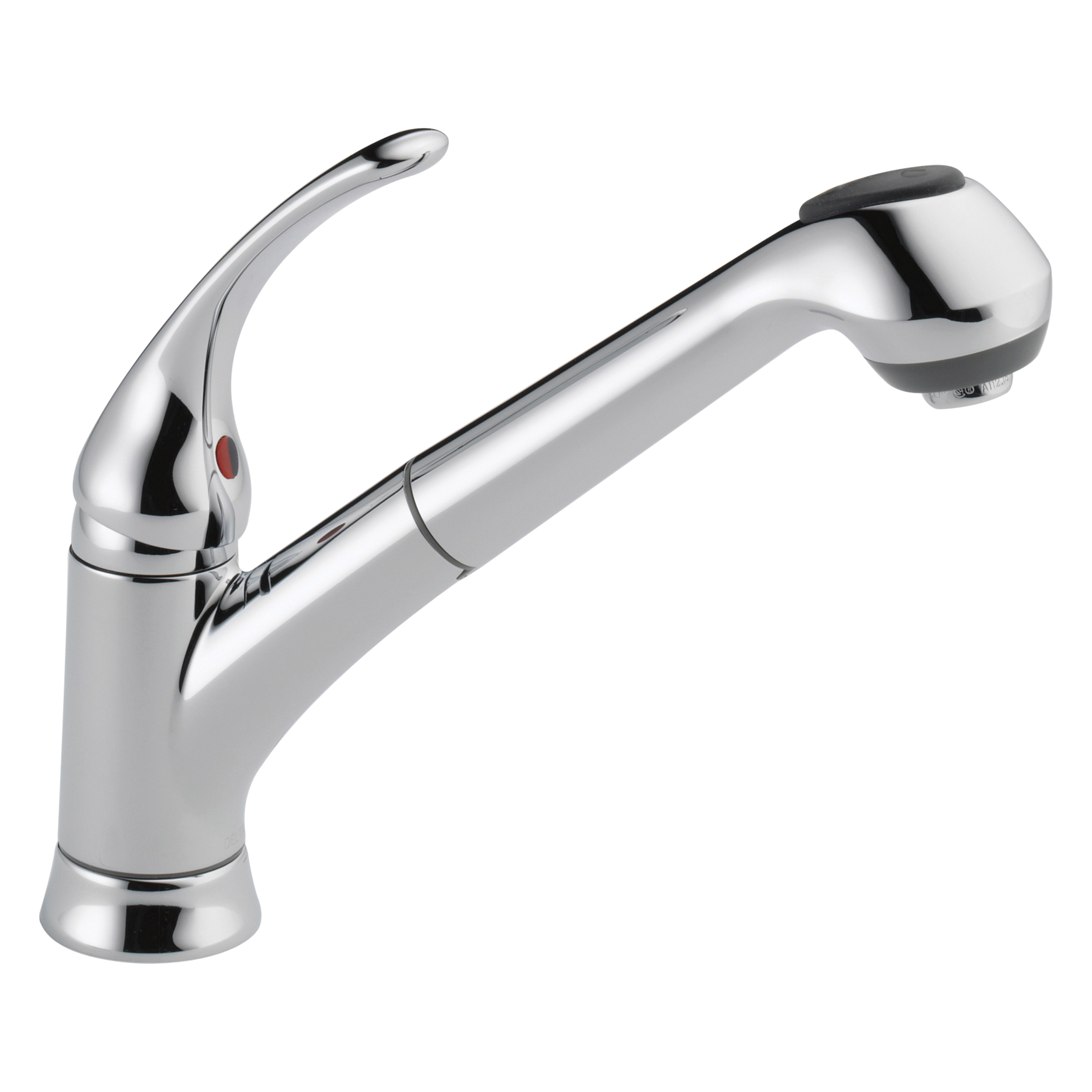

DELTA® Kitchen Faucet, Foundations®, 1.8 gpm, 8 in Center Distance, Swivel Spout, 8-3/4 in Spout Reach, 8-29/32 in Spout Height, Lever, 1 Handles, No Side Spray(Y/N), 1 Faucet Holes, 1-5/16 to 1-1/2 in Faucet Hole, 1/2 in, IPS, 2-1/2 in Maximum Deck Thickness, Deck Mount, Washerless Ball Valve/Cartridge, Zinc, Polished Chrome, Import
| Collection | : | Foundations® |
| Flow Rate | : | 1.8 gpm |
| Center Distance | : | 8 in |
| Spout Type | : | Swivel |
| Spout Reach | : | 8-3/4 in |
| Spout Height | : | 8-29/32 in |
| Handle Style | : | Lever |
| Number of Handles | : | 1 |
| Number of Faucet Holes | : | 1 |
| Faucet Hole Size | : | 1-5/16 to 1-1/2 in |
| Connection Size | : | 1/2 in |
| Connection Type | : | IPS |
| Maximum Deck Thickness | : | 2-1/2 in |
| Mounting Type | : | Deck |
| Valve/Cartridge Type | : | Washerless Ball |
| Material | : | Zinc |
| Finish/Color | : | Polished Chrome |
| Domestic/Import | : | Import |
- Pull-out spout swivels 120 deg
- 1.8 gpm at 60 psi, 6.8 L/min at 414 kPa
- All operating parts shall be replaceable from the top
- Lever handle control mechanism is the rotating stainless steel ball type with replaceable non-metallic seats
- Control handle shall return to neutral position when valve is turned off
- Integral double check valves in spout
- 59 in long hose provides outstanding reach
Full Engineering Drawing
You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
