Sloan® 3250325 24140
Send Print

Sloan® 3250325

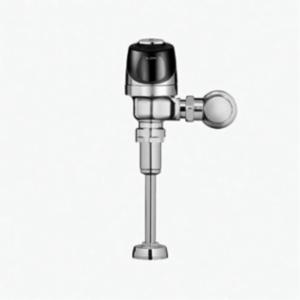

Sloan® ECOS® 3250325 8186 Single-Flush Sensor Exposed Flushometer, Battery, 0.125 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic

  • MPN: 3250325
  • TPN: 24140
  • UPC: 671254370616
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Login to see Availability

Sloan® ECOS® Sensor Exposed Flushometer, Single-Flush, Series: 8186, Urinal Fixture, Battery Power Source, 0.125 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic

Type      :      Single-Flush
Series      :      8186
Fixture Type      :      Urinal
Power Source      :      Battery
Flush Rate      :      0.125 gpf
Inlet Size      :      3/4 in IPS
Spud Coupling      :      3/4 in
Rough-In Size      :      11-1/2 in
Valve Design      :      Diaphragm
Connection Location      :      Top Spud
Sensor Range      :      15 to 30 in
Pressure Rating      :      15 to 80 psi
Material      :      Semi-Red Brass
Finish/Color      :      Polished Chrome
Domestic/Import      :      Domestic
  • Water efficient flush volume of either 0.13 gpf or 0.25 gpf
  • Automatically operates by means of an infrared sensor with multiple focused, lobular sensing fields for high and low target detection
  • User friendly 3 sec flush delay
  • High copper, low zinc brass castings for dezincification resistance
  • Fixed metering bypass and no external volume adjustment to ensure water conservation
  • Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass

Exposed, battery-powered, sensor-activated Sloan ECOS® electronic urinal flushometer with Smart Sense Technology™.
