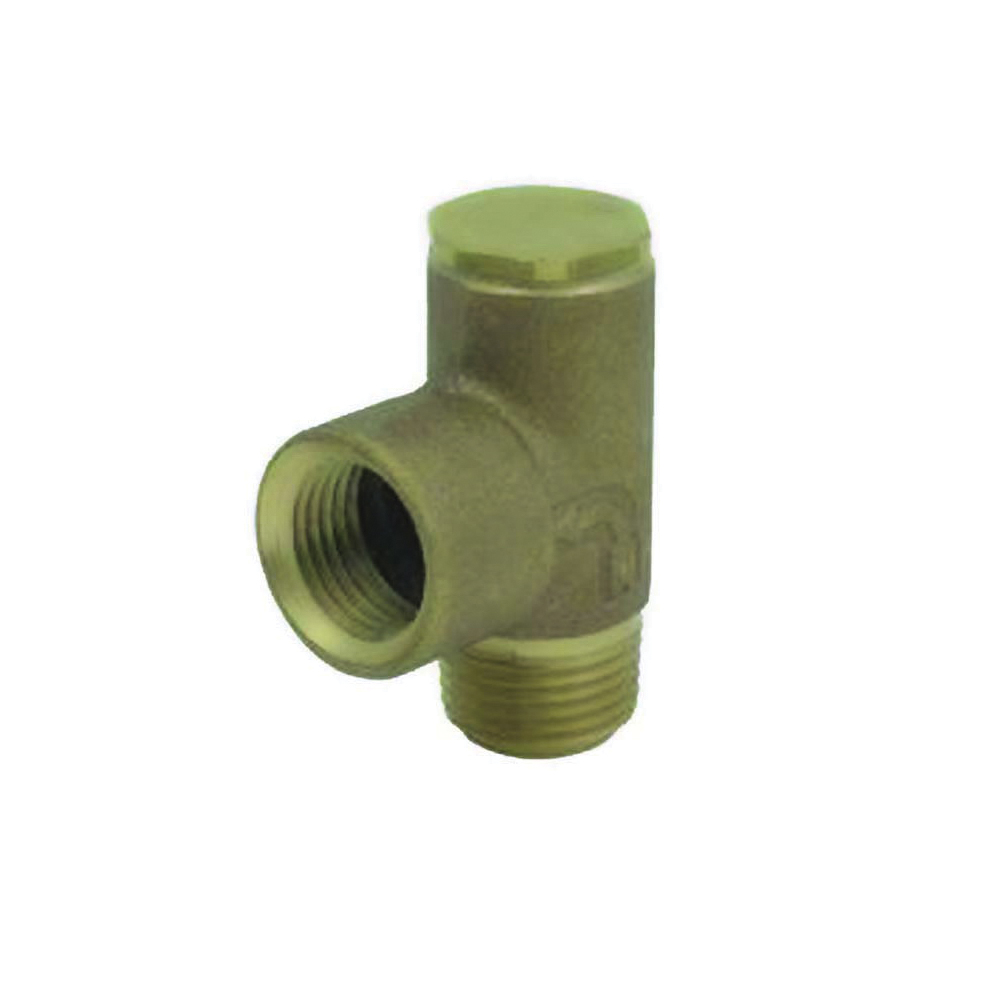

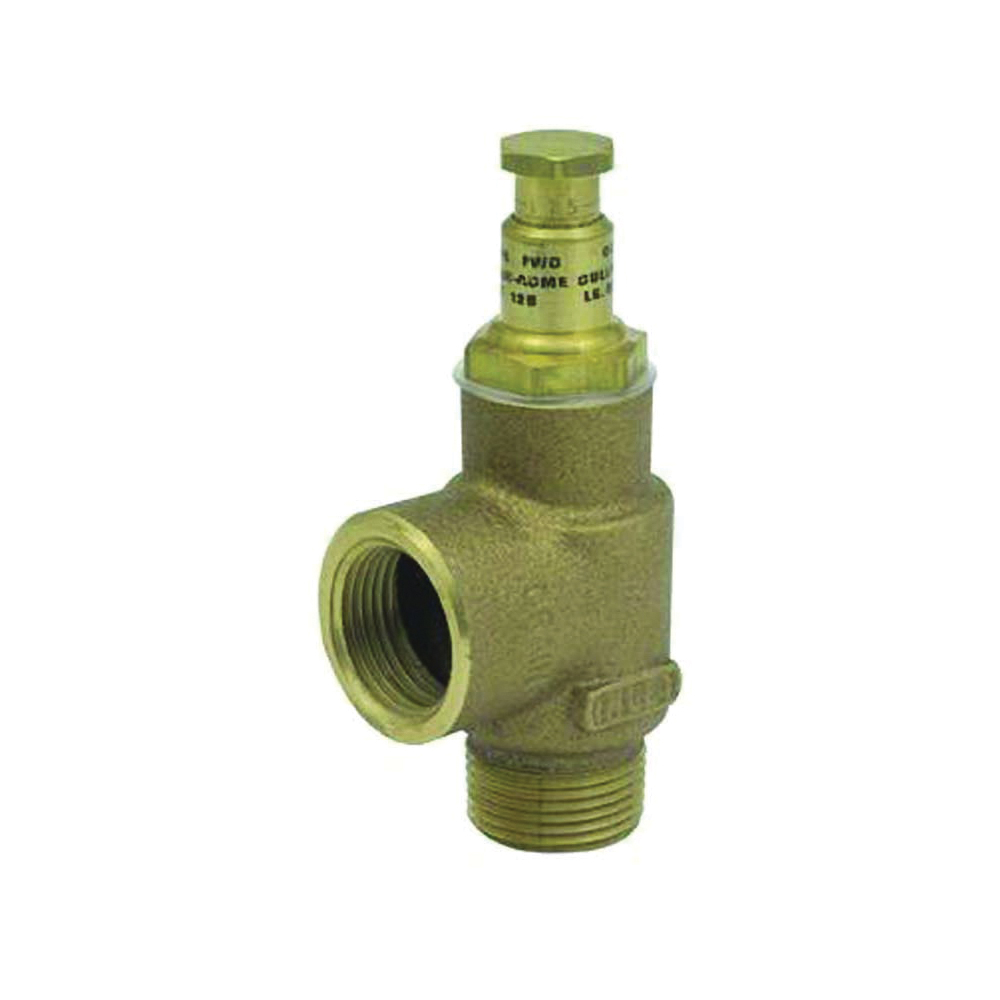

Cash Acme® Pressure Relief Valve, Miniature Adjustable, Series: FWC, 3/4 in Nominal, MNPT x FNPT, 25 to 175 psi, 210 deg F, Media: Water, Brass Body, Silicon Seat Disc
| Type | : | Miniature Adjustable |
| Series | : | FWC |
| Nominal Size | : | 3/4 in |
| End Style | : | MNPT x FNPT |
| Pressure Rating | : | 25 to 175 psi |
| Temperature Rating | : | 210 deg F |
| Media | : | Water |
| Body Material | : | Brass |
| Softgoods Material | : | Silicon Seat Disc |
- For commercial and industrial applications including thermal expansion protection, static pressure and over-pressure relief, low capacity pump relief and other uses of similar nature where tight shut-off is required
- Valves are non-code
- Offers protection against problematic and over-pressure conditions: Thermal expansion protection, static pressure and over-pressure relief, very low capacity pump relief and other uses of similar nature where tight shut-off is required
- Commercial and industrial applications: Designed to meet the needs of a wide variety of water systems
- Every valve is tested for performance prior to shipping: Specify and install with confidence
- Stainless steel pressure spring
- 125 psi factory setting
- Lead free
Reliance_7410_Specification_Sheet.pdf
The FW and FWC Valves are small, low-cost relief valves suitable for static over-pressure protection. Type FWC incorporates a calibrated adjusting screw for occasional changes in pressure setting without the use of a pressure gauge. Bronze bodies with male inlet and female outlet, silicone seats and stainless steel spring.
