Grundfos 98126802

Grundfos 98126802 MAGNA3 1-Head Circulator Pump, 46.7 gpm Flow Rate, 1.57 in Flange Inlet x 1.57 in Flange Outlet, 115 VAC, 1 Phase

  • MPN: 98126802
  • TPN: 114605
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Login to see Availability

Grundfos, 98126802, Circulator Pump, 1-Head, Series: MAGNA3, 46.7 gpm Flow Rate, 1.57 in Flange Inlet, 1.57 in Flange Outlet, 26.25 ft Maximum Head, 16 to 285 W Power, 115 VAC, 0.3 to 2.57 A, 60 Hz Frequency, 1 ph, 174.05 psi Maximum, 30% Glass Fiber Polyethersulfone Impeller, 32 to 104 deg F Ambient, X4D Enclosure, Thrust Bearing, 8-1/2 in H Dimensions

Type      :      1-Head
Series      :      MAGNA3
Flow Rate      :      46.7 gpm
Inlet Size      :      1.57 in Flange
Outlet Size      :      1.57 in Flange
Maximum Head      :      26.25 ft
Power Rating      :      16 to 285 W
Voltage Rating      :      115 VAC
Amperage Rating      :      0.3 to 2.57 A
Frequency Rating      :      60 Hz
Maximum Pressure      :      174.05 psi
Impeller Type      :      30% Glass Fiber Polyethersulfone
Temperature Rating      :      32 to 104 deg F Ambient
Enclosure Type      :      X4D
Bearing Type      :      Thrust

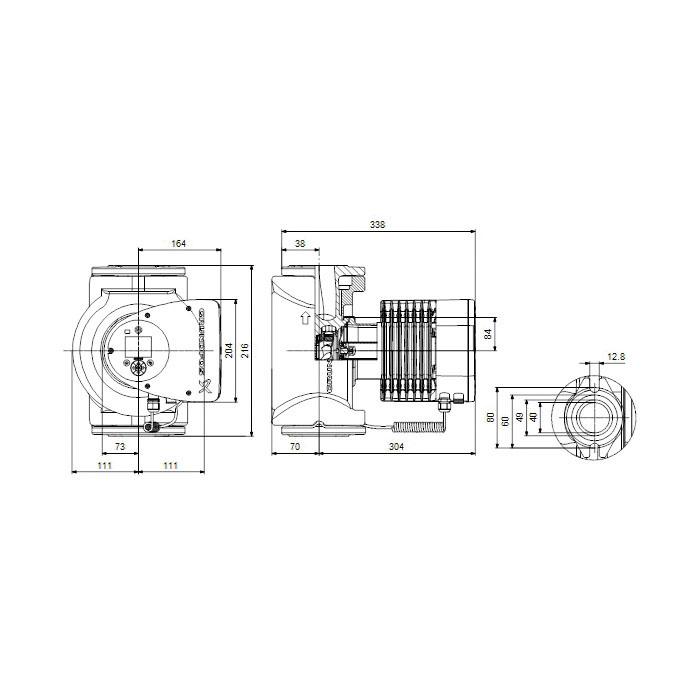

Dimensions      :      8-1/2 in H
  • Flow limit
  • FlowAdapt - a combination of the AutoAdapt control mode and flow limit function
  • Built-in Grundfos differential-pressure and temperature sensor
  • Proportional pressure control
  • Constant pressure control
  • Constant temperature control
  • Constant-curve duty
  • Maximum or minimum curve duty
  • Automatic night setback
  • Self-explanatory user interface with TFT display and high quality silicone push-buttons
  • Heat energy monitor
  • Wireless multi pump function
  • 8-9/16 in L port-to-port
  • Standard flange
  • Stainless steel pump housing
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Grundfos_98126802_Specification_Sheet.pdf
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Grundfos_98126862_Catalog.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Grundfos_98126862_Manual.pdf

The MAGNA3 is an innovative member of the Grundfos family of high quality circulator pumps. The MAGNA3 pumps make up a broad range of small, medium and large circulator pumps fitted with communication equipment and motors with electronic speed control based on permanent magnet (PM) and compact stator motor technology. With the MAGNA3, you can stop worrying about complicated pump settings. Simply install the pump and leave it on the factory, AutoAdapt. The MAGNA3 will automatically analyze the heating system, find the optimum setting and then continuously adjust its operation to changes in demand. The result is optimum comfort and minimum energy consumption. In addition, MAGNA3 pumps are extremely flexible and reliable and have low noise levels, long life and no maintenance requirements. They are fitted with IR communication and can offer external control and monitoring via expansion modules.
