AMSTD CE-20-AS 20 GALLON ELC 240-VOLT 6Y

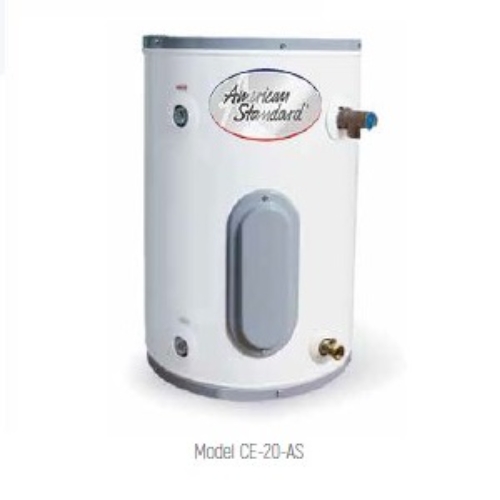

CE-20-AS American Standard 20 Gallon Point of Use Electric Water Heater
- Heavy Gauge Steel Tank.
- Inner Tank Glass-Lined - with Dura-Glas and fired at 1600 degrees F for optimum protection from the effects of corrosion.
- Non-CFC Energy-Saving Foam Insulation - reduces energy cost by maximizing heat retention.
- Anode Rod - to ensure longer tank life.
- Immersion Heating Element - applies heat directly to water.
- Fully Adjustable Thermostat Control - for variable temperature control to 160 degrees F.
- Factory Installed Energy Cut-off System.
- Top and Side Water Connections - on 6-20 Gallon Models affording choice of cold-in and hot-out connections.
- Factory Installed Temperature and Pressure Relief Valve
- Drain Valve Factory Installed - on all models for easy draining of tank.
- AMERICAN STANDARD Point-Of-Use Electric Water Heaters - are certified at 300 PSI test pressure and 150 PSI working pressure and all tanks are 100 percent hydrostatically tested at the factory.
- UL Listed.
Type
|
:
|
Upright
|
Tank Capacity
|
:
|
19 gal
|
Voltage Rating
|
:
|
240 VAC
|
Amperage Rating
|
:
|
18.75 A
|
Power Rating
|
:
|
4500 W
|
Phase
|
:
|
1 ph
|
Water Connection
|
:
|
3/4 in NPT
|
Heating Element
|
:
|
Screw-In Incoloy
|
Recovery Rate
|
:
|
21 GPH at 90 deg F rise
|
Pressure Rating
|
:
|
150 psi
|
Tall or Short
|
:
|
Short
|
ASME Yes/No
|
:
|
No
|
Material
|
:
|
Steel
|
Dimensions
|
:
|
18-1/2 in Dia x 24-7/8 in H in
|
