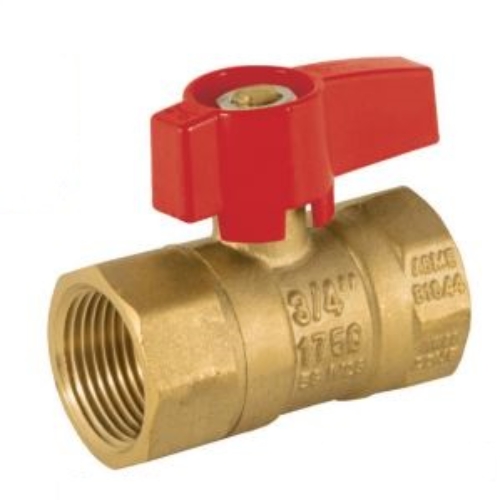

Jomar Valve® Gas Ball Valve, 2-Piece, 3/4 in Nominal, FNPT, 175 psig, -20 to 300 deg F, Chrome Plated Brass Ball, 2.35 in Inlet to Outlet Length, 1.57 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE/Buna-N Softgoods
| Type | : | 2-Piece |
| Nominal Size | : | 3/4 in |
| End Style | : | FNPT |
| Pressure Rating | : | 175 psig |
| Temperature Rating | : | -20 to 300 deg F |
| Ball Material | : | Chrome Plated Brass |
| Top to Inlet Center | : | 1.57 in |
| Body Material | : | Brass |
| Trim Material | : | Brass Stem and PTFE Seat |
| Softgoods Material | : | PTFE/Buna-N |
- Gland follower and single O-Ring stem design
- Valve can be locked in the open or closed position by reversing the handle
- 100% leak tested
- Red handle
- PTFE packing and Buna-N stem O-ring
