IPEX® 022640 8615
Send Print

IPEX® 022640

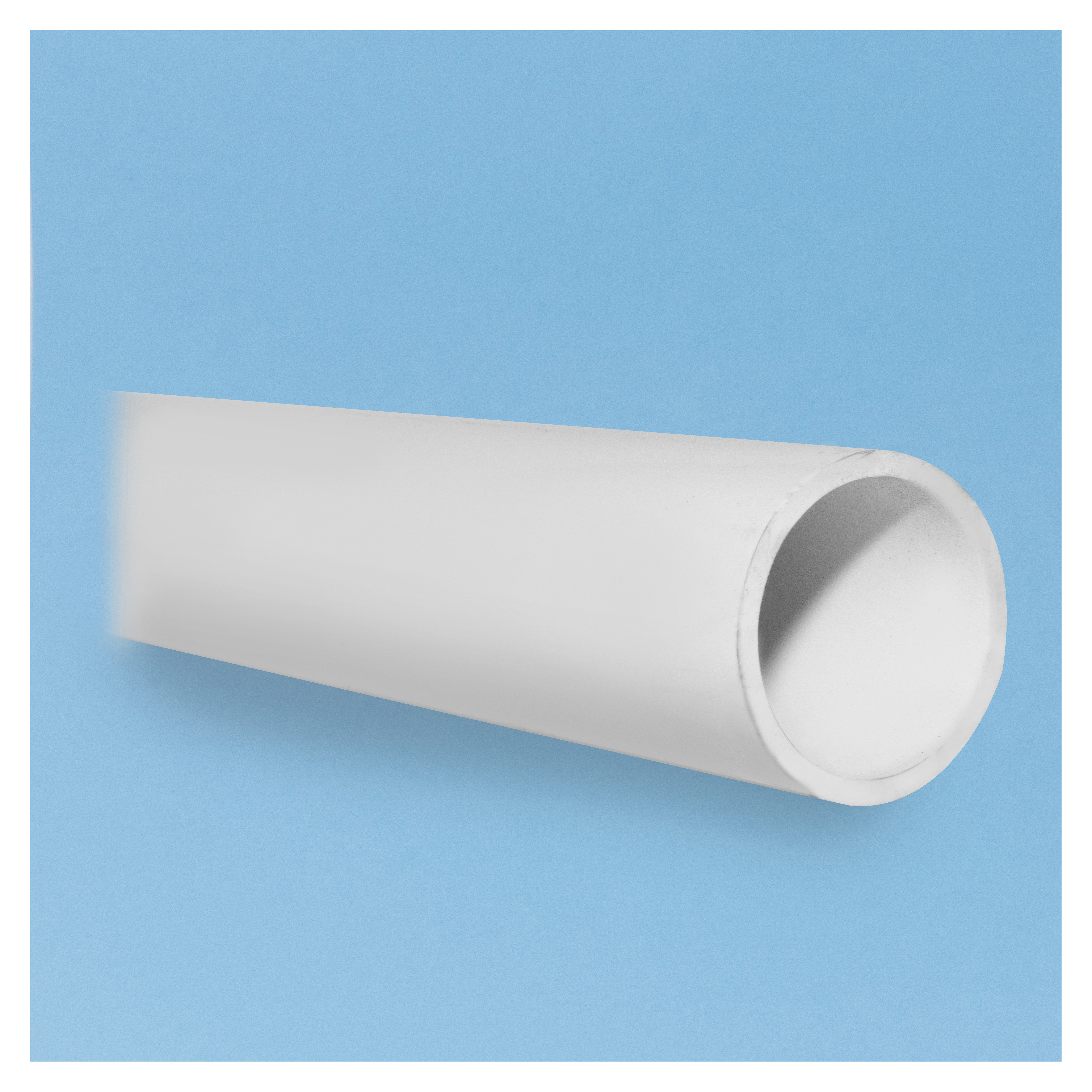

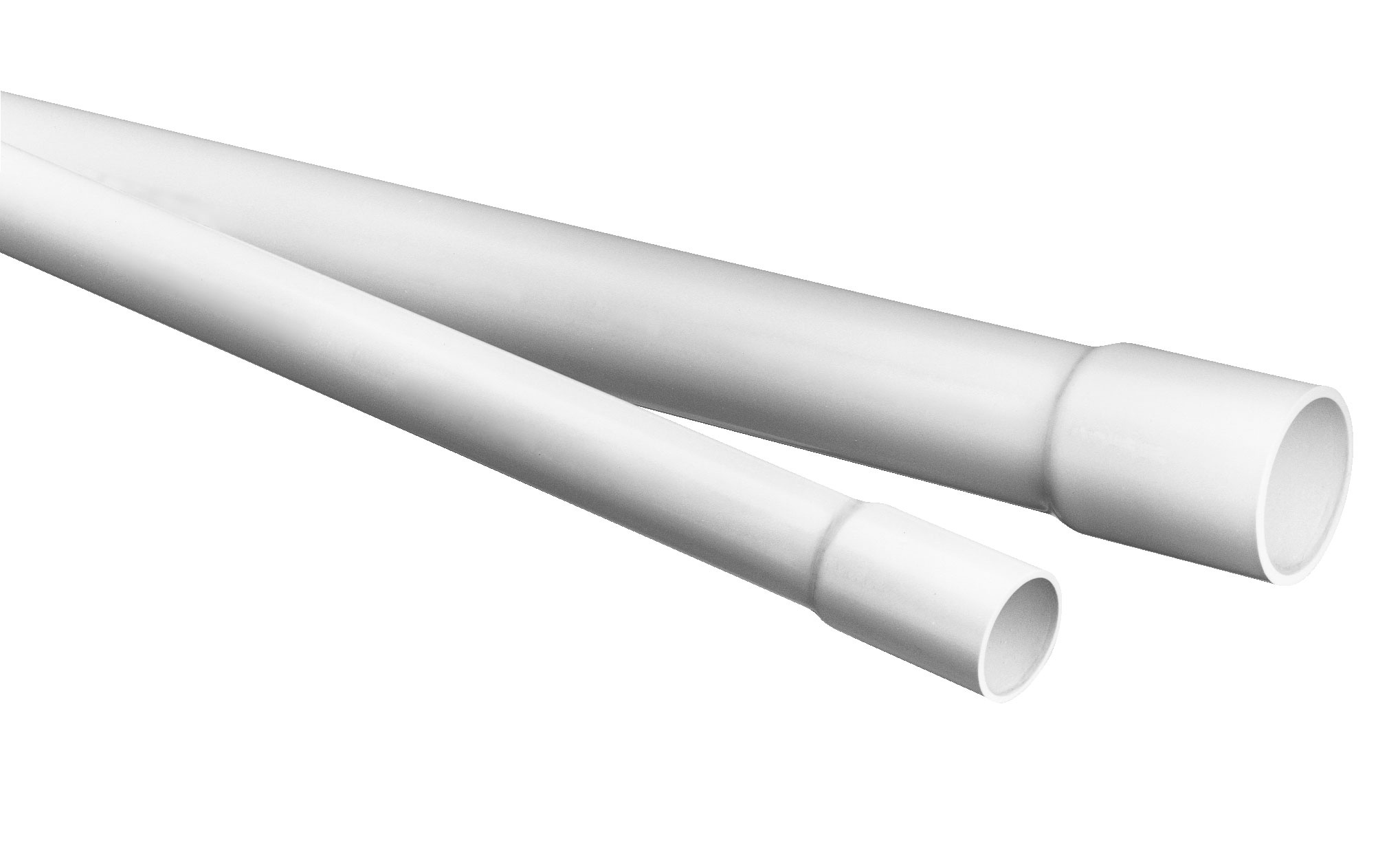

IPEX Xirtec® 140 022640 Pressure Pipe, 4 in, SCH 40/STD, Belled, PVC, 20 ft L, ASTM D1785, NSF 14, CSA B137.3

  • MPN: 022640
  • TPN: 8615
  • UPC: 622454226401
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Login to see Availability

IPEX Xirtec® 140 Pressure Pipe, 4 in Nominal, Belled, 3.998 in Inside Dia, 4-1/2 in Outside Dia, 20 ft Length, 0.237 in Wall Thickness, SCH 40/STD, 220 psi Working, 73 deg F, PVC, White, ASTM D1785, NSF 14, CSA B137.3

Type      :      SCH40
Nominal Size      :      4 in
End Style      :      Belled
Inside Diameter      :      3.998 in
Outside Diameter      :      4-1/2 in
Length      :      20 ft
Wall Thickness      :      0.237 in
Schedule Rating      :      SCH 40/STD
Working Pressure      :      220 psi
Temperature Rating      :      73 deg F
Material      :      PVC
Color      :      White
Specifications      :      ASTM D1785, NSF 14, CSA B137.3
  • Lower installation costs, easy handling
  • Extended life
  • Superior underground performance
  • Exceptional chemical resistance
  • Improved flow
  • Potable water approved
  • Exceptional temperature range IPEX vinyl system are designed to meet a broad range of service temperature
  • With a low thermal conductivity factor
  • Environmentally responsible with energy conservation a prime concern
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IPEX_019031_Specification_Sheet.pdf
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IPEX_156267_Catalog.pdf

Xirtec PVC Pipe is designed to meet the temperature, pressure and size requirements of piping systems used in chemical processes and other industrial applications. They feature outstanding resistance to photodegradation, creep stress and immunity to oxidation, and are exceptionally suited for use with a wide range of acids, alcohols, salts and halogens. The perfect extended service, low maintenance alternative to common and exotic metal systems.
