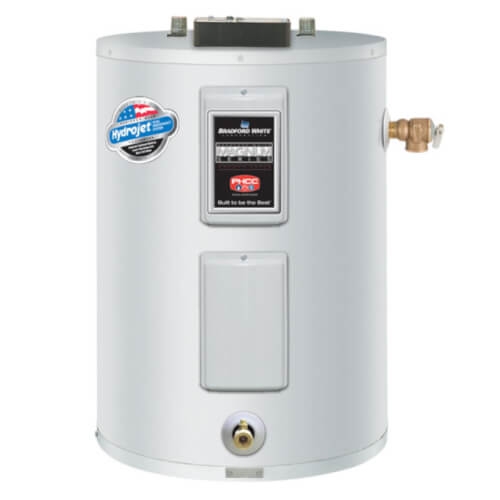

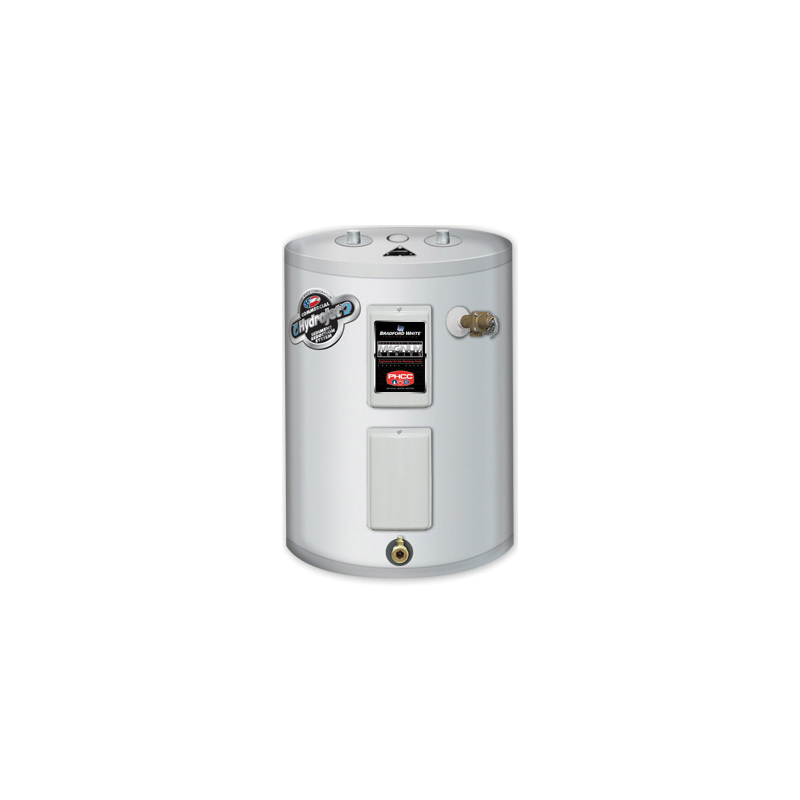

Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Lowboy, Series: LE120L3-3, 19 gal Tank, 208/240 VAC, 3500 W at 208 VAC/4500 W at 240 VAC, 3 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 18 gph at 100 deg F Rise Recovery, 150 psi, ASME Yes/No: No, Steel, 18 in Dia x 26 in H, Domestic
|
Type
|
:
|
Light Duty Lowboy
|
|
Series
|
:
|
LE120L3-3
|
|
Tank Capacity
|
:
|
19 gal
|
|
Voltage Rating
|
:
|
208/240 VAC
|
|
Power Rating
|
:
|
3500 W at 208 VAC/4500 W at 240 VAC
|
|
Phase
|
:
|
3 ph
|
|
Water Connection
|
:
|
3/4 in NPT
|
|
Heating Element
|
:
|
Screw-In Copper
|
|
Recovery Rate
|
:
|
18 gph at 100 deg F Rise
|
|
Pressure Rating
|
:
|
150 psi
|
|
ASME Yes/No
|
:
|
No
|
|
Material
|
:
|
Steel
|
|
Dimensions
|
:
|
18 in Dia x 26 in H
|
|
Domestic/Import
|
:
|
Domestic
|
- Fully automatic thermostat control - Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Direct heat transfer with immersed element - Transfers heat directly and efficiently to the water
- Factory installed Hydrojet® sediment reduction system - Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank
- Vitraglas® lining - An exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
- Insulation system - 1 in non-CFC foam insulation - Covers the sides and top of the tank, reducing the amount of heat loss
- Results in less energy consumption, improved operation efficiencies and jacket rigidity
- Water connection - 3/4 in NPT factory installed true dielectric fittings extend water heater life and eases installation
- Factory installed heat traps - Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
- Protective magnesium rod - Provides added protection against corrosion for long trouble free service
- Steel tank - Heavy gauge steel automatically formed, rolled and welded
- Field convertible - Units are shipped from factory standard 3 ph, non-simultaneous and can be converted to 1 ph and/or simultaneous operation in the field
- Lowboy models are ideal for installations where space is at a premium and are perfect for tight installations such as a closet or under a counter
- Copper screw type immersion element
Power in a short package is what you get with these convenient commercial electrics. They're perfect for under counter installations and are field convertible for various wiring configurations.
