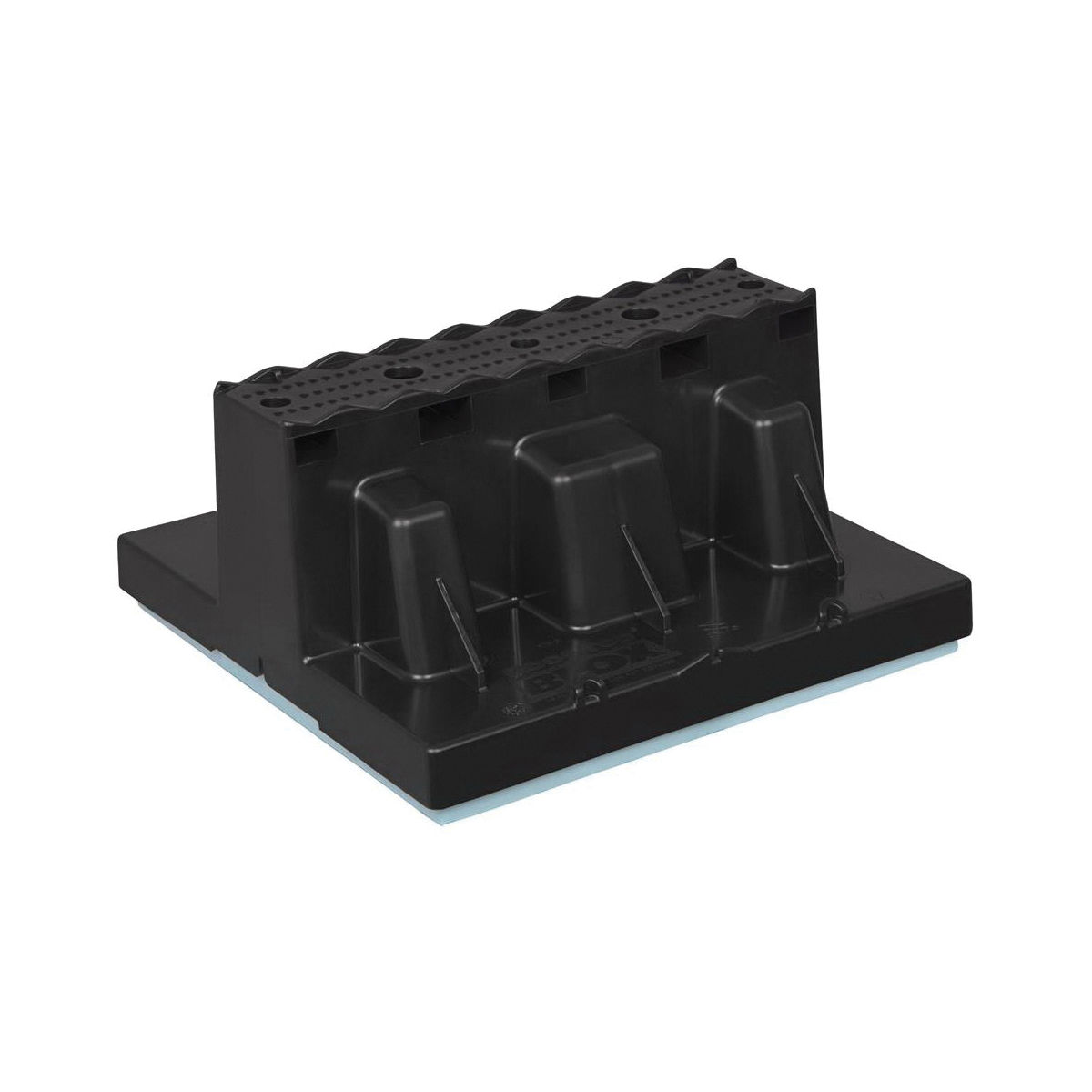

Roof Top Blox® Adjustable Pipe Support, Polypropylene Copolymer, Black, Wall Mount, 8-7/8 in L x 8-7/8 in W x 4-1/2 in H, Domestic
| Material | : | Polypropylene Copolymer |
| Color | : | Black |
| Mounting Type | : | Wall |
| Dimensions | : | 8-7/8 in L x 8-7/8 in W x 4-1/2 in H |
| Domestic/Import | : | Domestic |
- Molded of UV resistant polypropylene
- Heavy-duty load-bearing design
- Notched saddle-top design for easy pipe alignment
- Protective padded base
- Reinforced screw starter guides
- Wide stable design
- Pipe saddle-top design to hold pipe in place until secured
- Extension rod holes
- Steel strut alignment trough
- Patented nut slots to assist in securing extension rods
- On-board pipe strap to quickly secure up to a 2 in pipe
- Interlocking end-to-end tabs to connect multiple roof top blox
- Base Material: 1 in thick by 25 psi, type 4 closed cell structural foam
- Load Bearing: maximum load per Blox-Single point Load: 250 lb/113 kg
- Space blox approximately every 7 ft along all piping
- Pipe Fastening: screw indents guide fastening screws into special internal engineered thread gripping fastening
- #10 sheet metal screws recommended
- Blox supplied with 3/4 in galvanized universal quick clamping strap for up to 2 in pipe
- Top surface easily adapts to all types of piping clamps, clips, slotted strut and 3/8 in or 1/2 in threaded rod and all pipe fastening and adjustments done from top side only
Specification Sheet
Roof Top Blox® are the solution for piping and equipment support on any flat commercial roof surface. The Roof Top Blox system is designed for quick installation on a multitude of applications.
