BrassCraft® S1-20DW F 109067
Send Print

BrassCraft® S1-20DW F

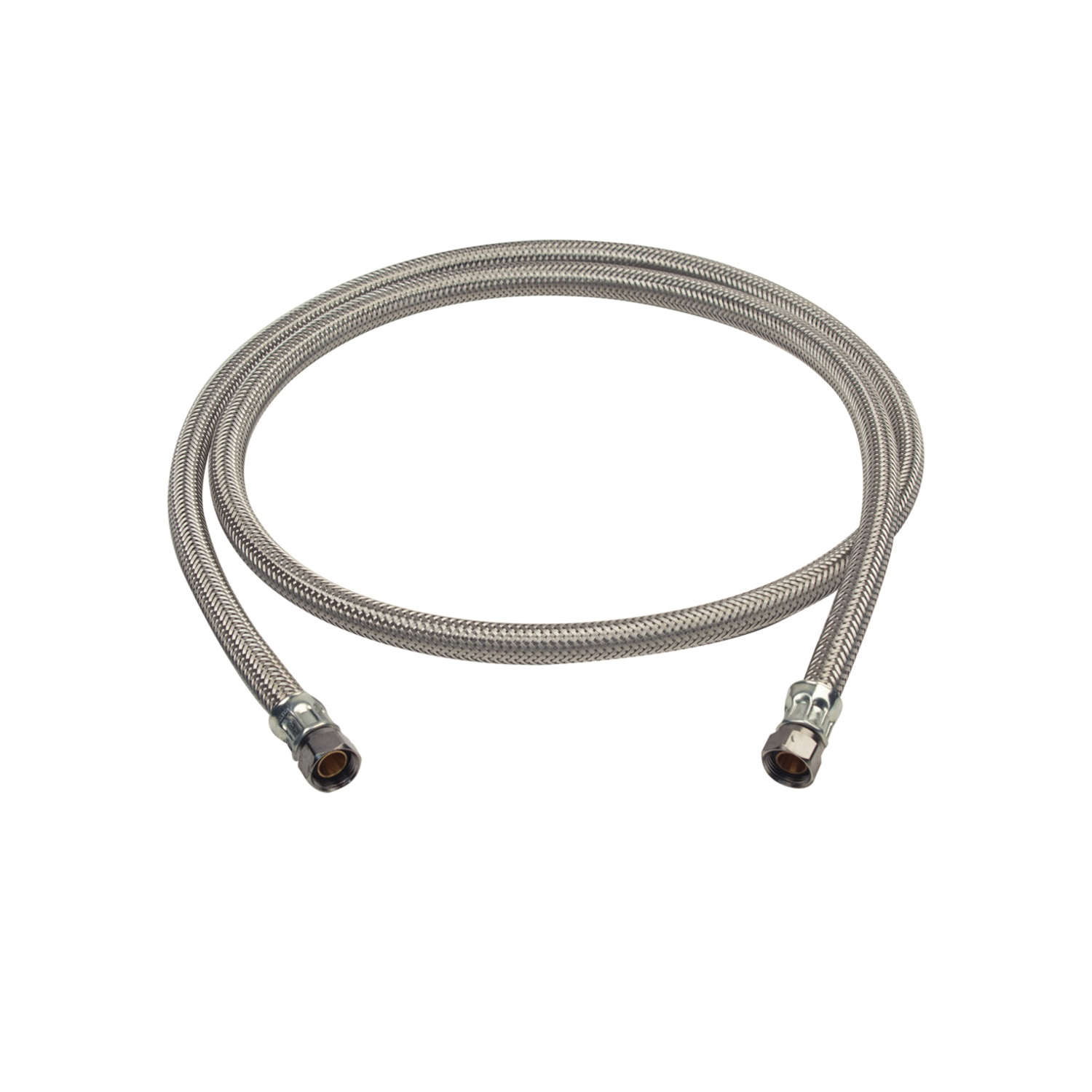

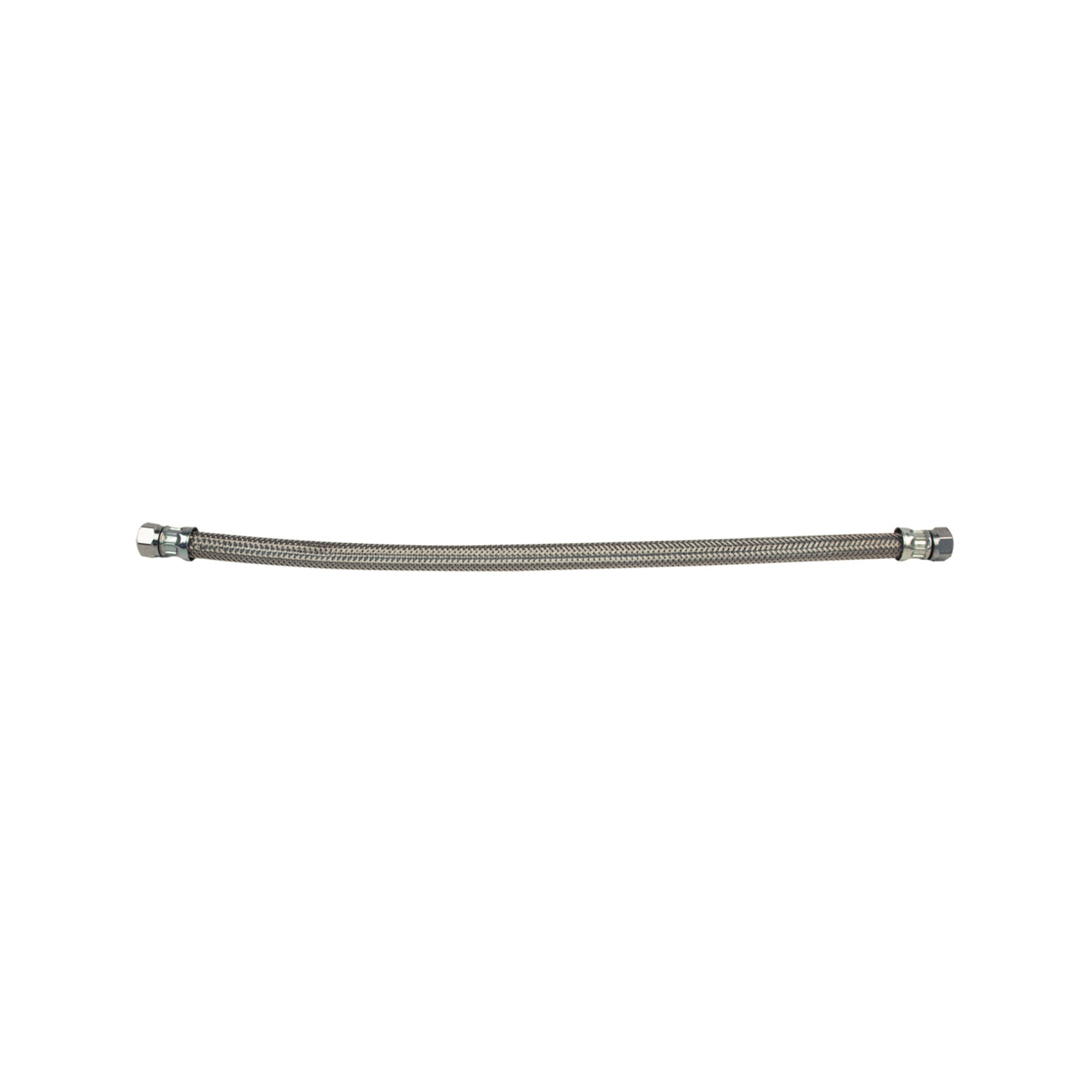

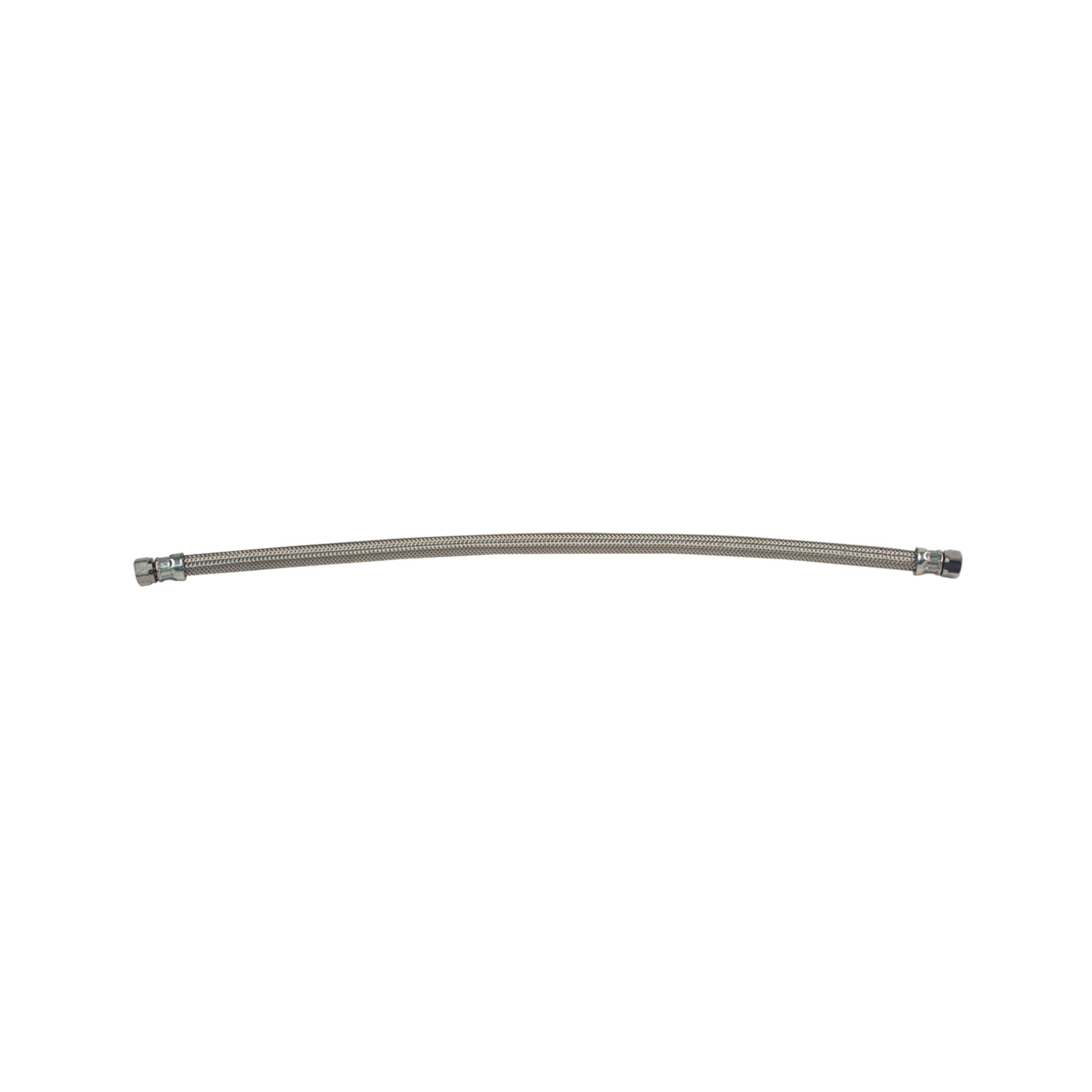

BrassCraft® Speedi Plumb® S1-20DW F Flexible Braided Water Dishwasher Connector, 3/8 in, Compression, 20 in L, 125 psi, Stainless Steel, Domestic

  • MPN: S1-20DW F
  • TPN: 109067
  • UPC: 026613158839
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Login to see Availability

BrassCraft® Speedi Plumb® Lead Free Braided Water Dishwasher Connector, Flexible, Series: S1-DW, 3/8 in Nominal, Compression, 0.3 in Inside Dia, 0.55 in Outside Dia, 20 in Length, 125 psi Working, 40 to 140 deg F, Stainless Steel, Domestic

Type      :      Flexible
Series      :      S1-DW
Nominal Size      :      3/8 in
End Style      :      Compression
Inside Diameter      :      0.3 in
Outside Diameter      :      0.55 in
Length      :      20 in
Working Pressure      :      125 psi
Temperature Rating      :      40 to 140 deg F
Material      :      Stainless Steel
Domestic/Import      :      Domestic
  • Durable, flexible water connector requires no cutting or soldering during installation
  • Reinforced PVC inner hose is braided with stainless steel
  • Brass hex nuts are plated for corrosion resistance
  • 8-sided pneumatic crimp ensures reliable nut-to-hose connection
  • Internal corrosion resistance to harsh water conditions
  • For use in potable water distribution systems in accessible locations only
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Brass_Craft_S1-12DW_F_Specification_Sheet.pdf
  • link Video Link https://youtu.be/V0_B4UAcgM4

BrassCraft® Speedi Plumb® 3/8 in Compression inlet x 3/8 in Compression outlet flexible braided stainless steel water connector. Used to connect the water supply to your dishwasher, this durable, flexible water connector features reinforced PVC inner hose, braided with stainless steel. On the inside, our tough PVC tubing resists attack by chlorine, chloramines and other corrosive elements.
