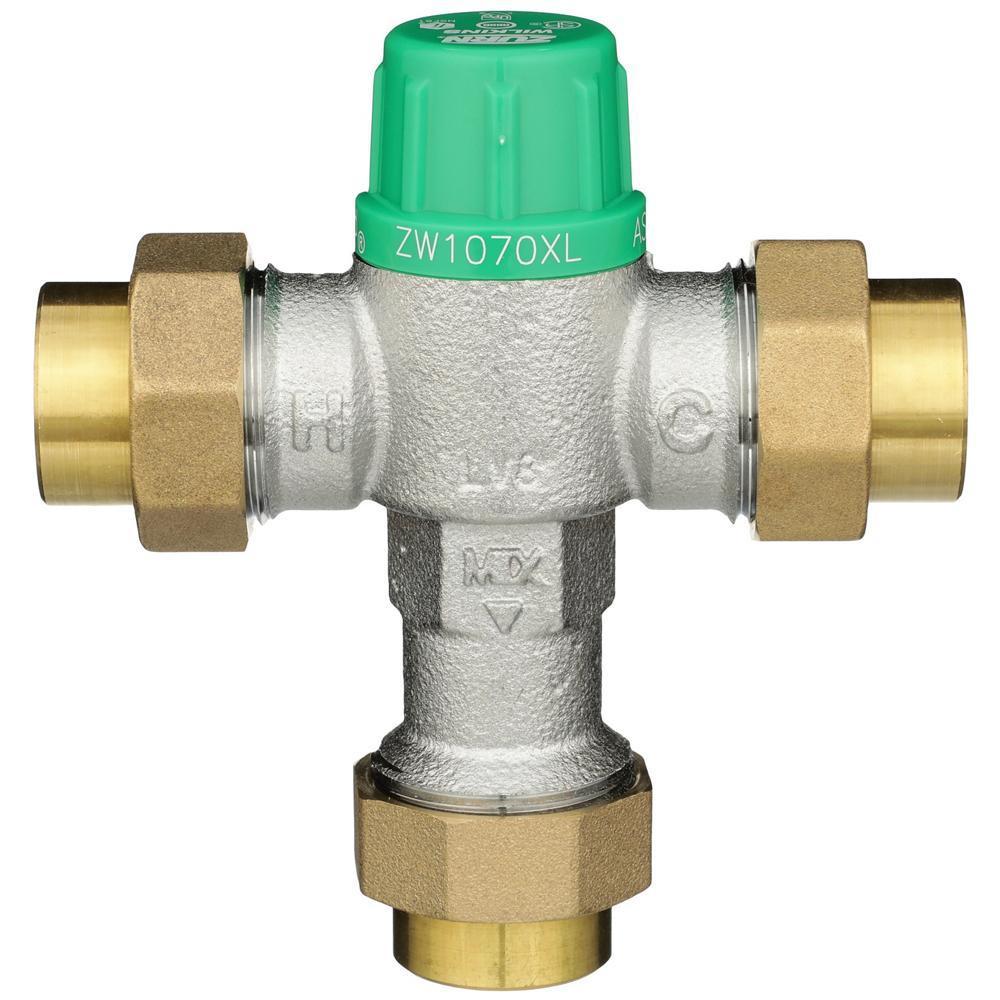

The Aqua-Gard® ZW1070XL Thermostatic Mixing Valve is designed to be installed at the point of use (residential and most light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.
Zurn® Wilkins Aqua-Gard® Lead-Free Thermostatic Mixing Valve, Series: ZW1070XL, 3/4 in Nominal, FNPT, 145 psi, 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply, 10 gpm Flow, Media: Water, 5-7/16 in Inlet to Outlet Length, 2 in Top to Inlet Center, Cast Bronze Body, 300 Stainless Steel Spring Trim, FKM Seal/Noryl GFN2 Guide Tube, Nickel Plated, 5-1/2 in H
| Series | : | ZW1070XL |
| Nominal Size | : | 3/4 in |
| End Style | : | FNPT |
| Pressure Rating | : | 145 psi |
| Temperature Rating | : | 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply |
| Flow Capacity | : | 10 gpm |
| Media | : | Water |
| Inlet to Outlet Length | : | 5-7/16 in |
| Top to Inlet Center | : | 2 in |
| Body Material | : | Cast Bronze |
| Trim Material | : | 300 Stainless Steel Spring |
| Softgoods Material | : | FKM Seal/Noryl GFN2 Guide Tube |
| Finish | : | Nickel Plated |
| Dimensions | : | 5-1/2 in H |
- Designed for installation at the point of use
- Suitable for multiple fixtures
- 10 gpm flow rate at 45 psi pressure loss
