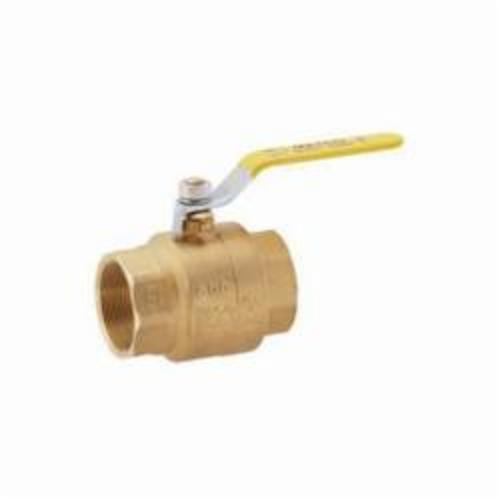

Matco-Norca™ Ball Valve, 2-Piece, 1-1/2 in Nominal, IPS End Style, 600 psi WOG Pressure, Full Port, Media: Air/Gas/Oil/Steam/Water, Lever Operated Actuator, Brass Ball, 3.51 in Inlet to Outlet Length, Brass Body, Brass Stem and PTFE Seat Trim, EPDM Softgoods, Import
| Type | : | 2-Piece |
| Nominal Size | : | 1-1/2 in |
| End Style | : | IPS |
| Pressure Rating | : | 600 psi WOG |
| Port Type | : | Full |
| Media | : | Air/Gas/Oil/Steam/Water |
| Actuator Type | : | Lever Operated |
| Ball Material | : | Brass |
| Body Material | : | Brass |
| Trim Material | : | Brass Stem and PTFE Seat |
| Softgoods Material | : | EPDM |
| Domestic/Import | : | Import |
- Blow-out proof stem
- Steel hex nut/handle
- Brass packing nut
- PTFE packing gland
- UNS C37700 brass bonnet
- 150 psi steam working pressure
- EPDM O-ring
