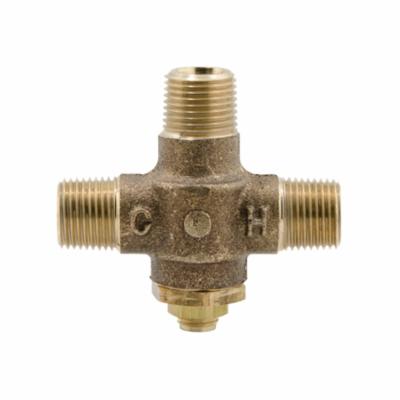

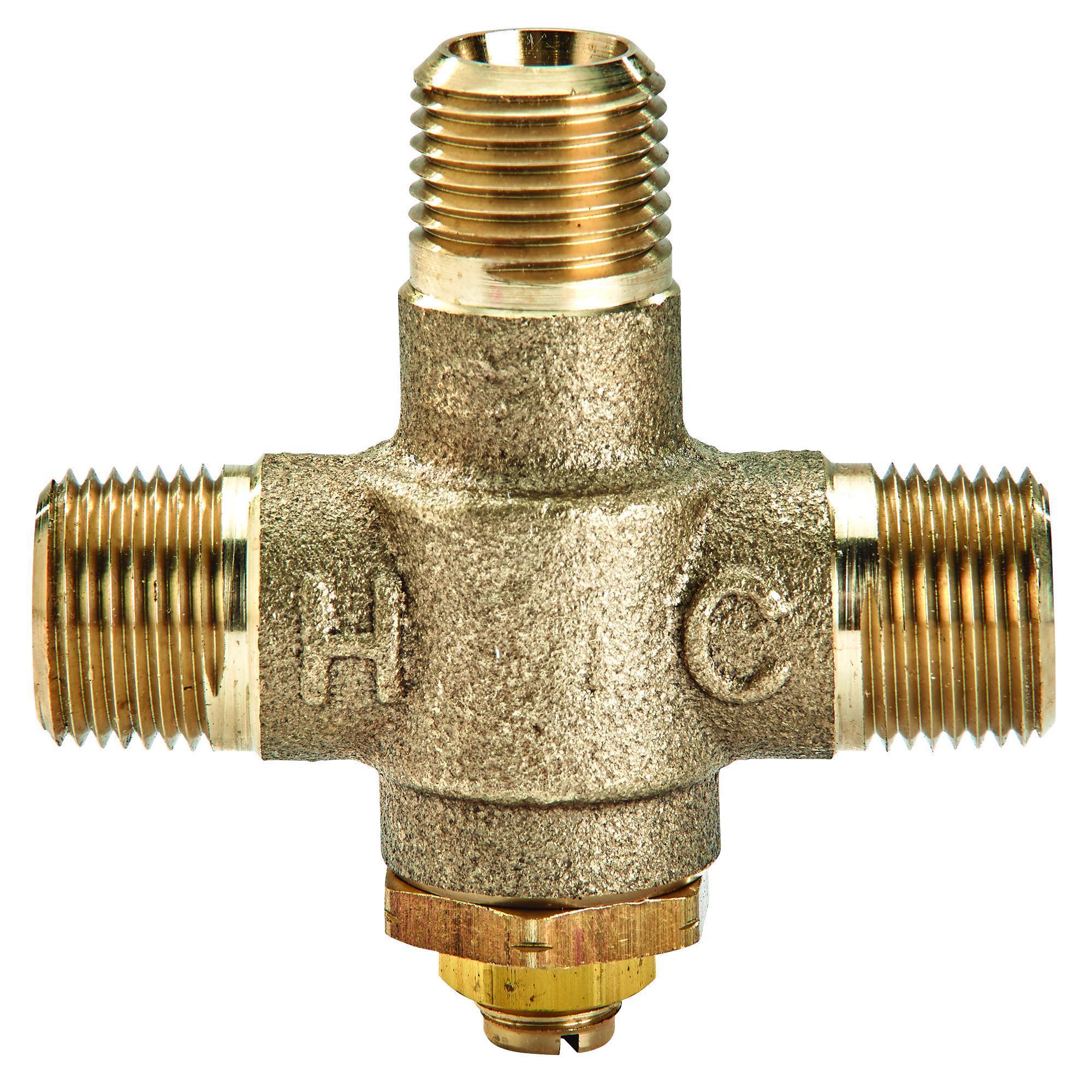

This lead free HydroGuard® under the counter combination tempering valve for low flow control is designed for lavatory applications where the temperature of hot water must be controlled for safe, economic use. An advanced thermal actuator quickly senses and compensates for outlet temperature fluctuations induced by water temperature and pressure changes in the supply line. It features a rough bronze finish, 1/2 in NPT connections, corrosion resistant internal components, integral checks to prevent cross flow and inlet screens to filter out debris. The temperature adjustment stem is simple to adjust and has a locking nut to prevent unauthorized or accidental adjustment. Factory temperature is set at 105 deg F.
Powersâ„¢ Lavatory Tempering Valve, Series: LFe480, 1/2 in Nominal, NPT, 125 psi, 80 to 120 deg F, 0.5 gpm, Brass Body, Rough Brass, 2-15/16 in H, Domestic
Series
|
:
|
LFe480
|
Nominal Size
|
:
|
1/2 in
|
End Style
|
:
|
NPT
|
Pressure Rating
|
:
|
125 psi
|
Temperature Rating
|
:
|
80 to 120 deg F
|
Flow Rate
|
:
|
0.5 gpm
|
Body Material
|
:
|
Brass
|
Finish
|
:
|
Rough Brass
|
Dimensions
|
:
|
2-15/16 in H
|
Domestic/Import
|
:
|
Domestic
|
- Solid brass construction for enhanced durability
- Adjustable temperature selection with locknut to prevent tampering
- Advanced thermal actuator improves performance
- Temperature controls to ASSE 1070, down to 0.5 gpm
- Lead free brass body for durability and to comply with lead free installation requirements
- Corrosion resistant internal components for extended life
- Integral checks with screens prevents cross flow and filter out debris
- Factory set to 105 deg F
- 4 gpm flow at 45 psi
- 5 to 180 deg F hot water
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
-
