Anvil® Top Beam C-Clamp, Wide Throat, Series: FIG 94, 5/8 in Rod, 1200 lb, 60 in-lbs Torque, Ductile Iron, Black Oxide, 450 deg F
| Type | : | Wide Throat |
| Series | : | FIG 94 |
| Rod Size | : | 5/8 in |
| Load Capacity | : | 1200 lb |
| Specifications | : | 60 in-lbs Torque |
| Material | : | Ductile Iron |
| Finish | : | Black Oxide |
| Temperature Rating | : | 450 deg F |
- Provides clamping to bar joists which are directly under roof installations
- Provides for vertical hanger rod installed offset from the edge of the beam flange
- Malleable iron body assures full thread engagement of rod
- Size of clamp is determined by size of rod to be used
- Follow maximum recommended set screw torque values PEX MSS-SP-69
- Hardened steel cup point set screw and locknut

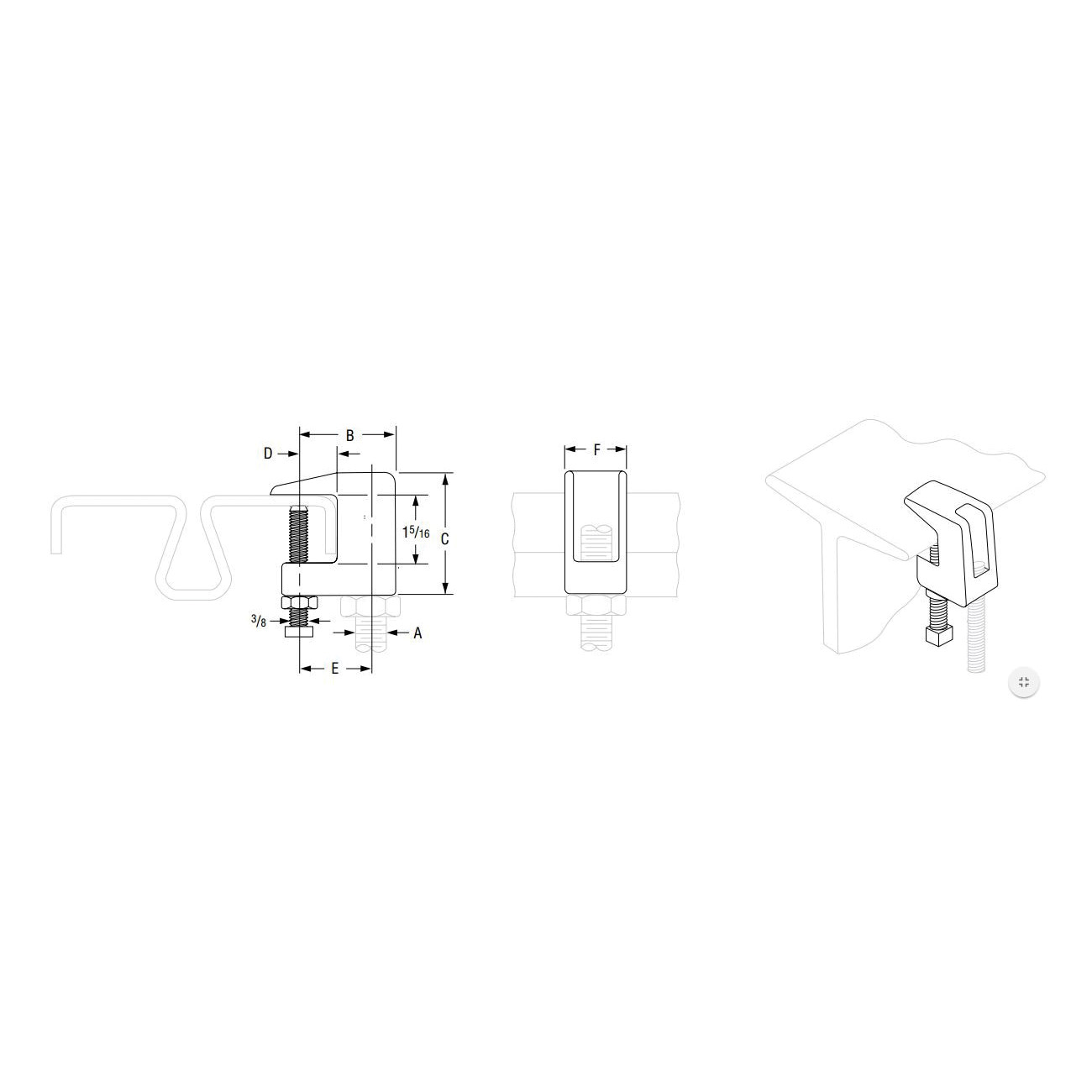

- For use under roof installations with bar joist type construction, or for attachment to the top flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of joists or flange does not exceed 1-5/16 in
