Sharkbite® SBBV54 111012
Send Print

Sharkbite® SBBV54

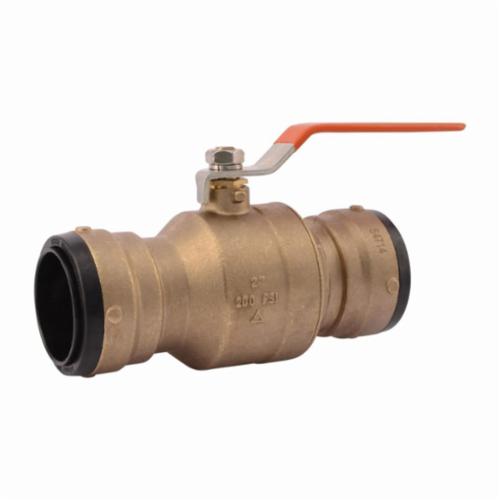

Sharkbite® SBBV54 2XL Large Diameter Ball Valve, 2 in Nominal, Push-Fit End Style, Brass Body, Full Port, Import

  • MPN: SBBV54
  • TPN: 111012
  • UPC: 697285001442
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Login to see Availability

Sharkbite® Ball Valve, Large Diameter, Series: 2XL, 2 in Nominal, Push-Fit, 200 psi, 20 to 200 deg F, Full Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 7.58 in Inlet to Outlet Length, Brass Body, PTFE Seat Trim, Import

Type      :      Large Diameter
Series      :      2XL
Nominal Size      :      2 in
End Style      :      Push-Fit
Pressure Rating      :      200 psi
Temperature Rating      :      20 to 200 deg F
Port Type      :      Full
Media      :      Water
Actuator Type      :      Lever Operated
Ball Material      :      316 Stainless Steel
Body Material      :      Brass
Trim Material      :      PTFE Seat
Domestic/Import      :      Import
  • DZR Brass-Lead free alloy body and cap
  • Mild steel handle
  • DZR Lead free brass spindle

SharkBite® Large Diameter Ball Valves are the easiest way to install or replace a shut-off valve into your potable water or hydronic water heating system. The push-fit connections allow you to join to Copper, PEX, CPVC, PE-RT and HDPE pipe in any combination without a need for soldering, clamps, glue or unions. The valve is easily rotated after installation making it easier to reach the shut-off, or to work in tight spaces. Large Diameter PEX Stiffeners are required when connecting to PEX tubing.
