Oatey® 39016 34700
Send Print

Oatey® 39016

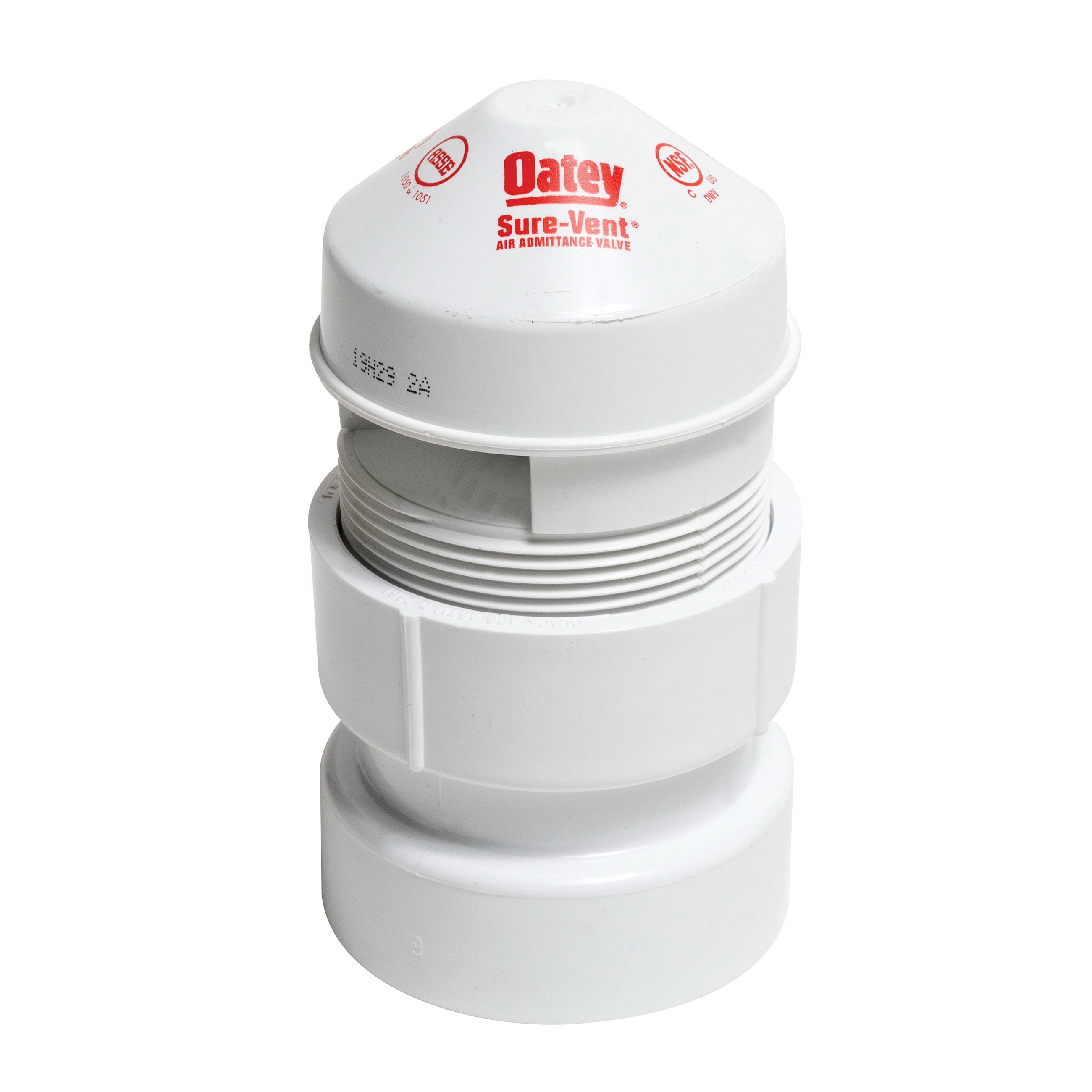

Oatey® 39016 Air Admittance Valve With 1-1/2 x 2 in PVC SCH 40/STD Adapter, 1-1/2 to 2 in Nominal, NPT End Style, 20 DFU Flow Rate, PVC Body

  • MPN: 39016
  • TPN: 34700
  • UPC: 038753390161
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 6/PK
  • Login to see Availability

Oatey® Air Admittance Valve, 1-1/2 to 2 in Nominal, NPT End Style, -40 to 150 deg F, 20 DFU Flow Rate, 2.46 in Inlet to Outlet Length, PVC Body, 4.53 in H

Nominal Size      :      1-1/2 to 2 in
End Style      :      NPT
Temperature Rating      :      -40 to 150 deg F
Flow Rate      :      20 DFU
Inlet to Outlet Length      :      2.46 in
Body Material      :      PVC
Dimensions      :      4.53 in H
Domestic/Import      :      Domestic

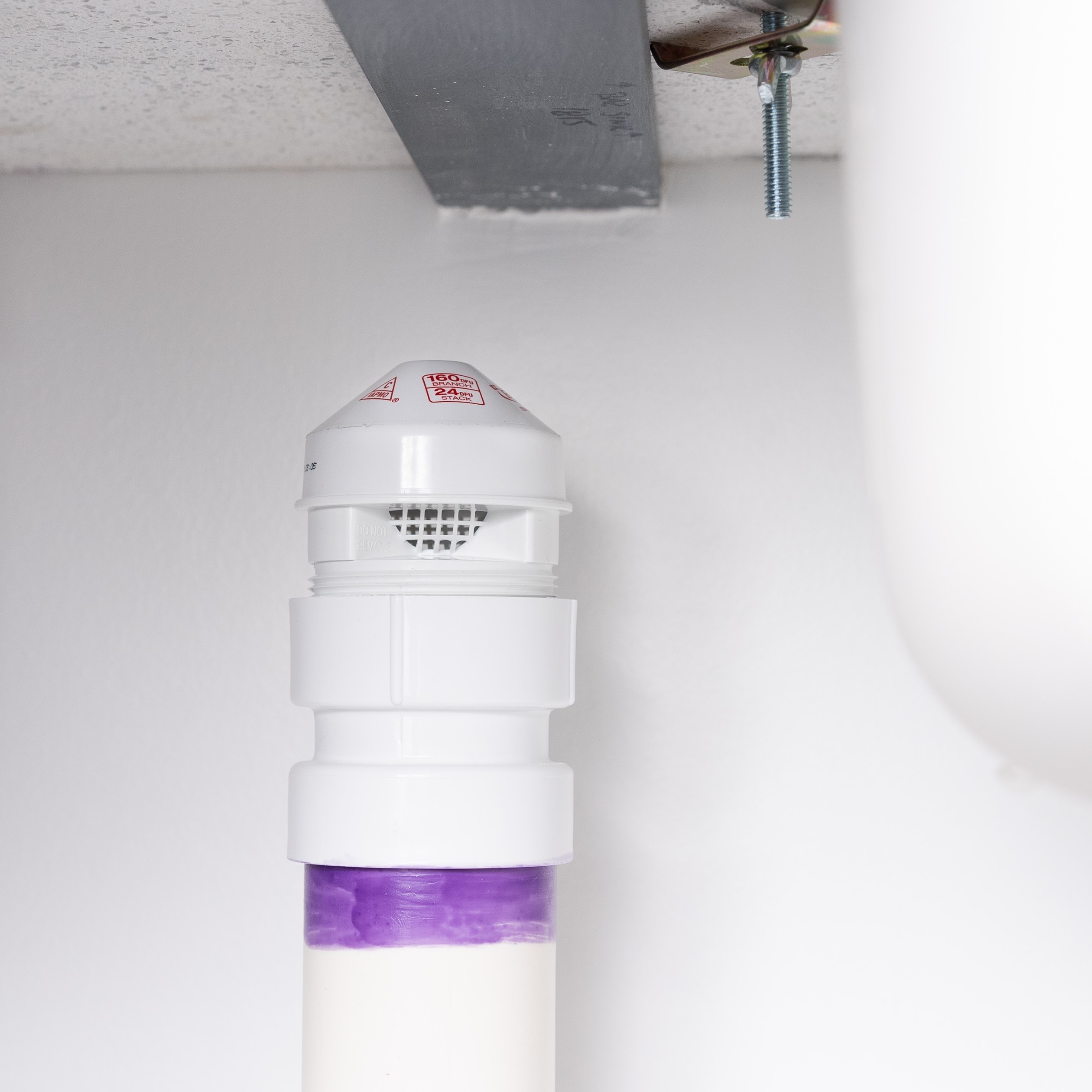

  • Use as an alternative to a secondary vent in a DWV system

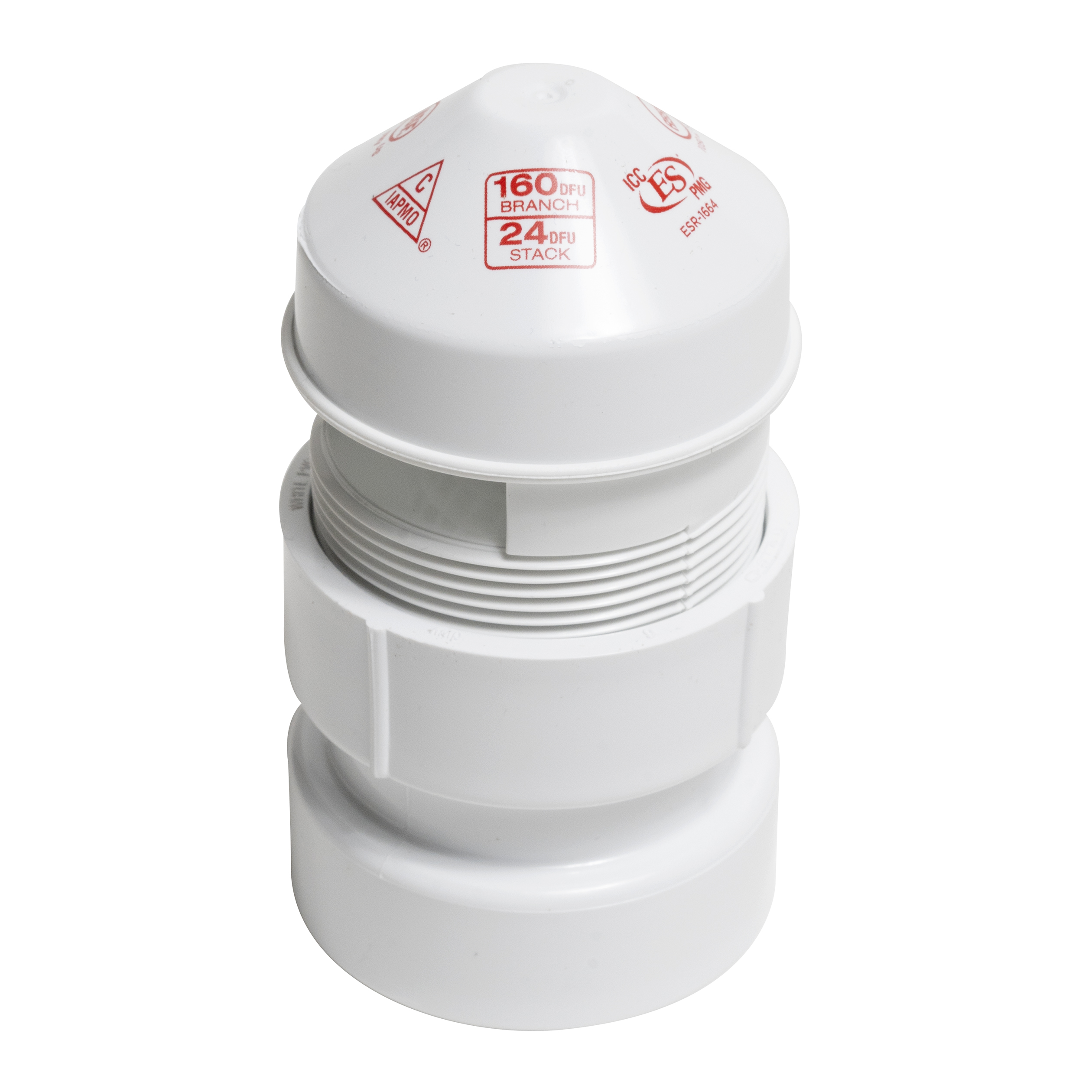

  • Vents up to 160 DFU Branch or 24 DFU Stack
  • One size approved to handle 1-1/2 in to 2 in vent pipe
  • Protective sleeve provides grip for installation and keeps valve free from debris
  • 100% functionally tested at 1/4 in H2O and 30 in H2O, ensuring trouble-free performance
  • pdf Catalog https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Oatey_31318_Catalog.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Oatey_39012_Specification_Sheet.pdf

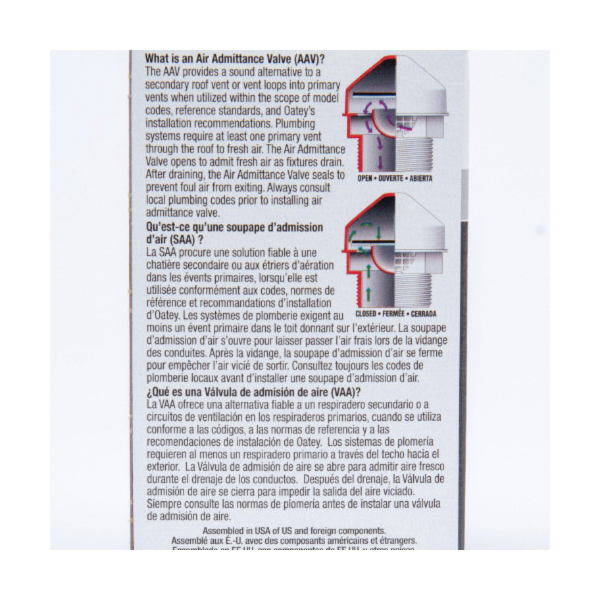

Oatey® Sure-Vent® Air Admittance Valves provide the ideal venting solution for island sinks, remote bathrooms and remodel jobs by eliminating the need for a stack vent. They are designed to block sewer gases in DWV systems by opening and closing when the slightest change in pressure is detected. Available with PVC or ABS adapters, this Sure-Vent air admittance valve vents up to 160 DFU (branch) or 24 DFU (stack) and fit 1-1/2 in.–2 in. pipes. Oatey products have earned the trust of plumbing professionals for over 100 years.
