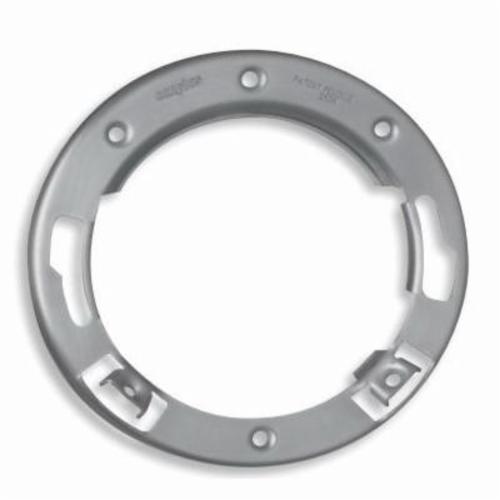

IPEX Closet Flange Repair Ring, Stainless Steel
Material
|
:
|
Stainless Steel
|
- One piece construction
- Replaces both metal and plastic closet flange ring with an inside diameter greater than 5 in
- Grade 304-2B stainless steel
- Stronger than two-piece repair ring
- Will not rust (paint coated flange are susceptible to rust)
- Paint coating not required
- Adjustable for ease of installation
- Installation: Remove the damaged closet flange ring
- Slide the protruding lip on the interior edge of the repair ring into the grooved channel of the flange body, lay the ring fat on the foor then rotate the ring until the closet bolt slots are in the desired position
- Using a screwdriver, bend the repair ring "claws" into the grooved channel of the closest flange body to clamp it in place
- Insert the toilet bolt in the closet bolt slots
- Fasten screws to the foor through the holes located on the ring and on the "claws" and Re-install toilet
- 4 x 3 in nominal size
-
