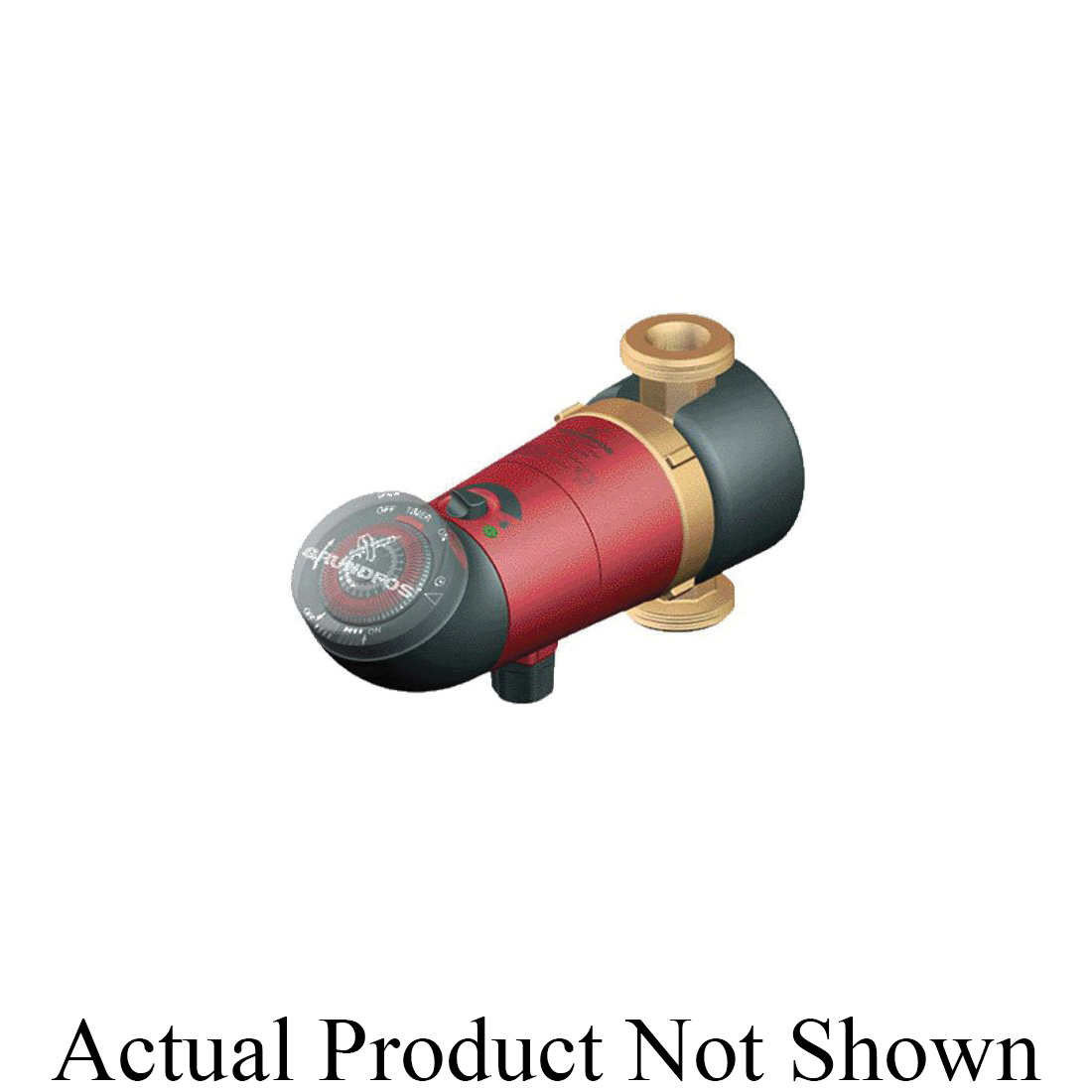

Grundfos 97525922

Grundfos 97525922 UP Series Circulator Pump, 0 to 3 gpm Flow Rate, 115 V AC, 1 ph

  • MPN: 97525922
  • TPN: 24680
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Login to see Availability

Grundfos Circulator Pump, Series: UP Series, 0 to 3 gpm, 5-1/4 ft Maximum Head, 25 W, 115 V AC, 0.23 A, 60 Hz, 1 ph, 145 psi Maximum, 35.6 to 203 deg F Liquid, IP42, 4-1/3 in H

Series      :      UP Series
Flow Rate      :      0 to 3 gpm
Maximum Head      :      5-1/4 ft
Power Rating      :      25 W
Voltage Rating      :      115 V AC
Amperage Rating      :      0.23 A
Frequency Rating      :      60 Hz
Maximum Pressure      :      145 psi
Temperature Rating      :      35.6 to 203 deg F Liquid
Enclosure Type      :      IP42
Dimensions      :      4-1/3 in H
  • Pump is characterized by self-adjusting, gimbal-mounted rotor bearing lubricated by pumped liquid
  • High-quality bearing material
  • Motor can be separated from the pump housing, enabling easy maintenance and replacement
  • Corrosion resistant impeller, stainless steel, EPDM, PPO, PTFE, graphite
  • Brass pump housing
  • 1 ph motor, no additional motor protection is required
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Grundfos_97525922_Specification_Sheet.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Grundfos_97525922_Specification_Sheet.pdf

The pump is equipped with a spherical motor. In contradistinction to the conventional canned rotor motors, the spherical motor does not have a rotating bearing shaft. The stator transfers the magnetic field to the rotor in the water conducting part of the pump. The pump is only suitable for pressurized hot water systems. The water conducting part of the pump is hermetically separated from the stator with a stainless steel spherical separator. The built-in timer enables the pump to start and stop automatically at set intervals of minimum 20 min. The built-in thermostat can be set to stop the pump at a preset liquid temperature.
