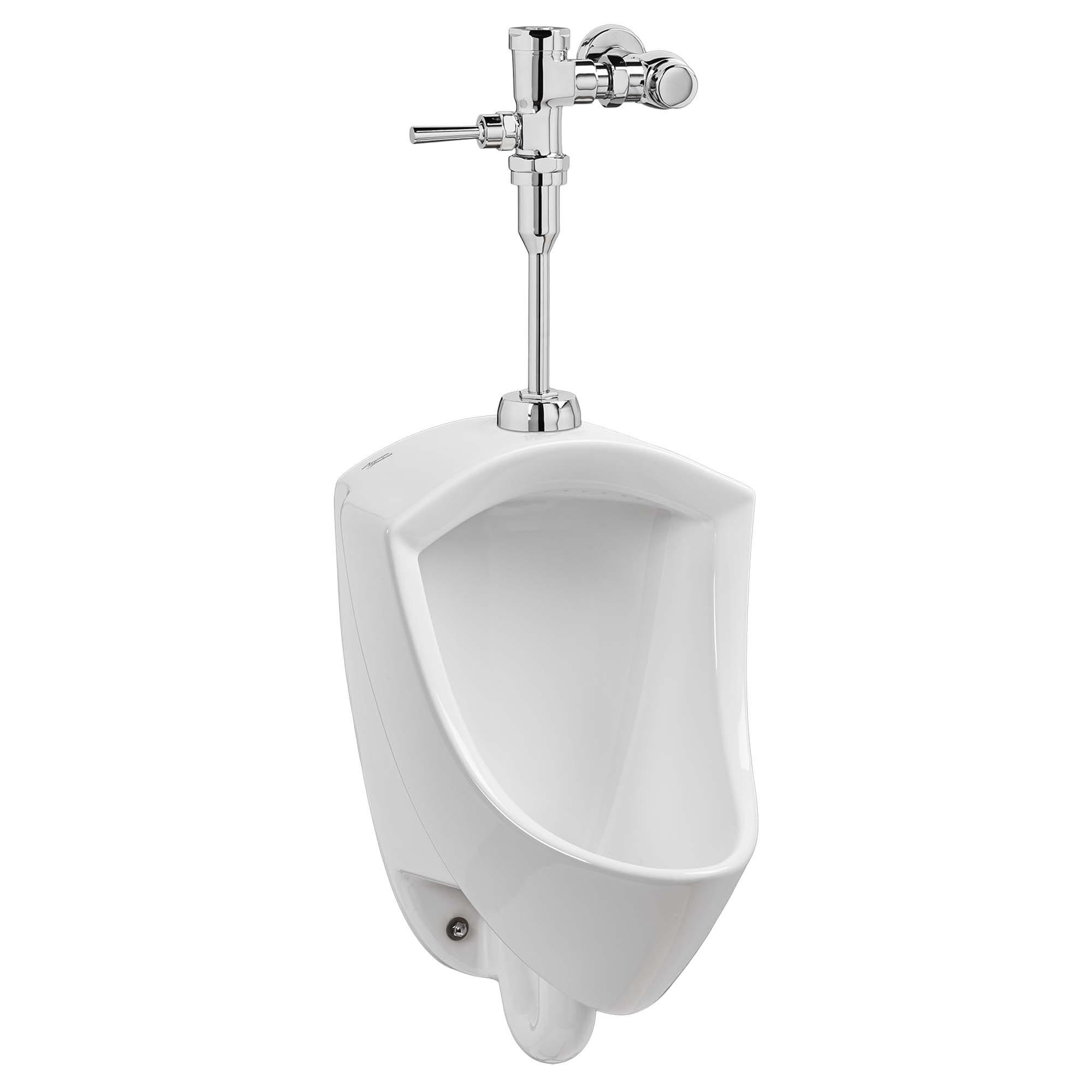

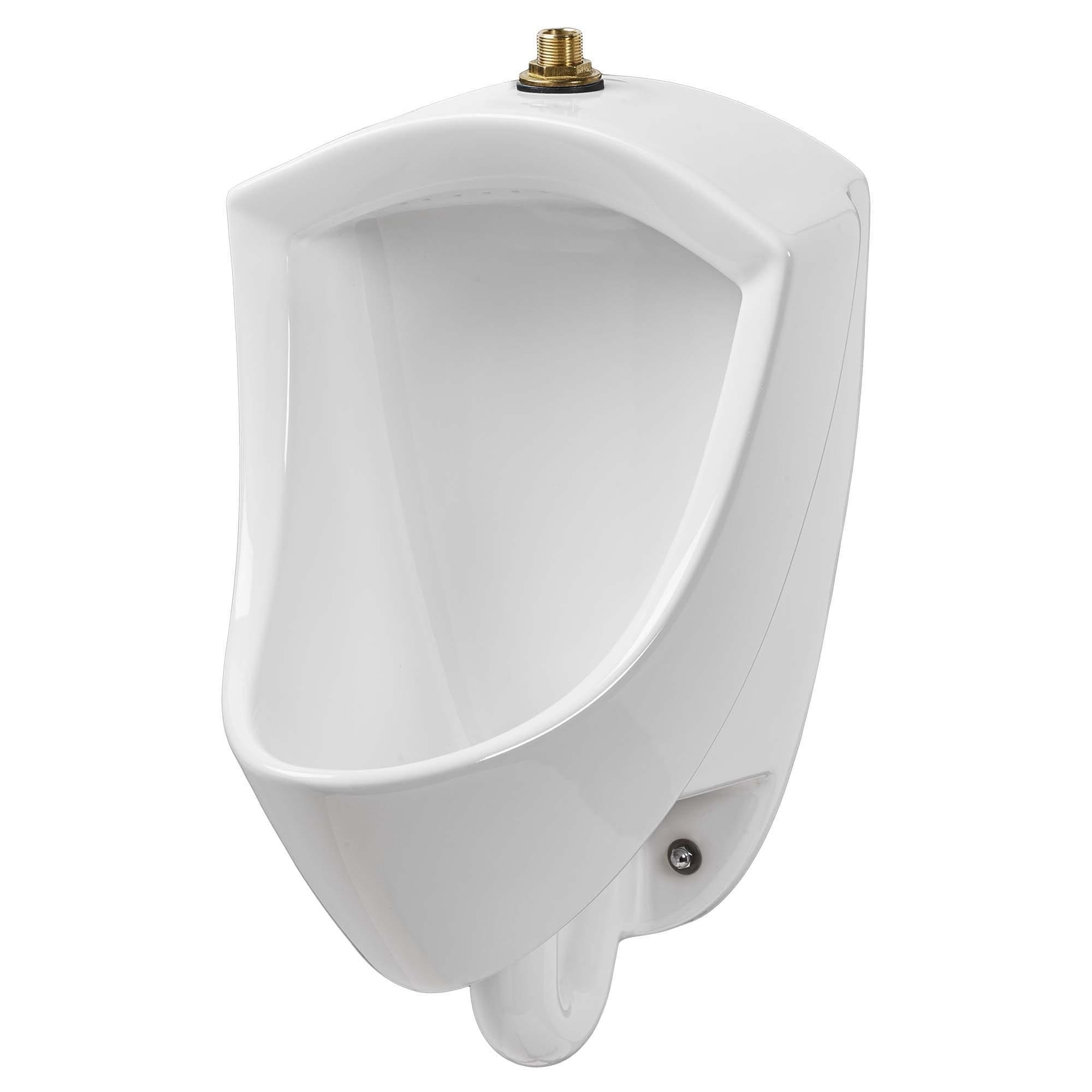

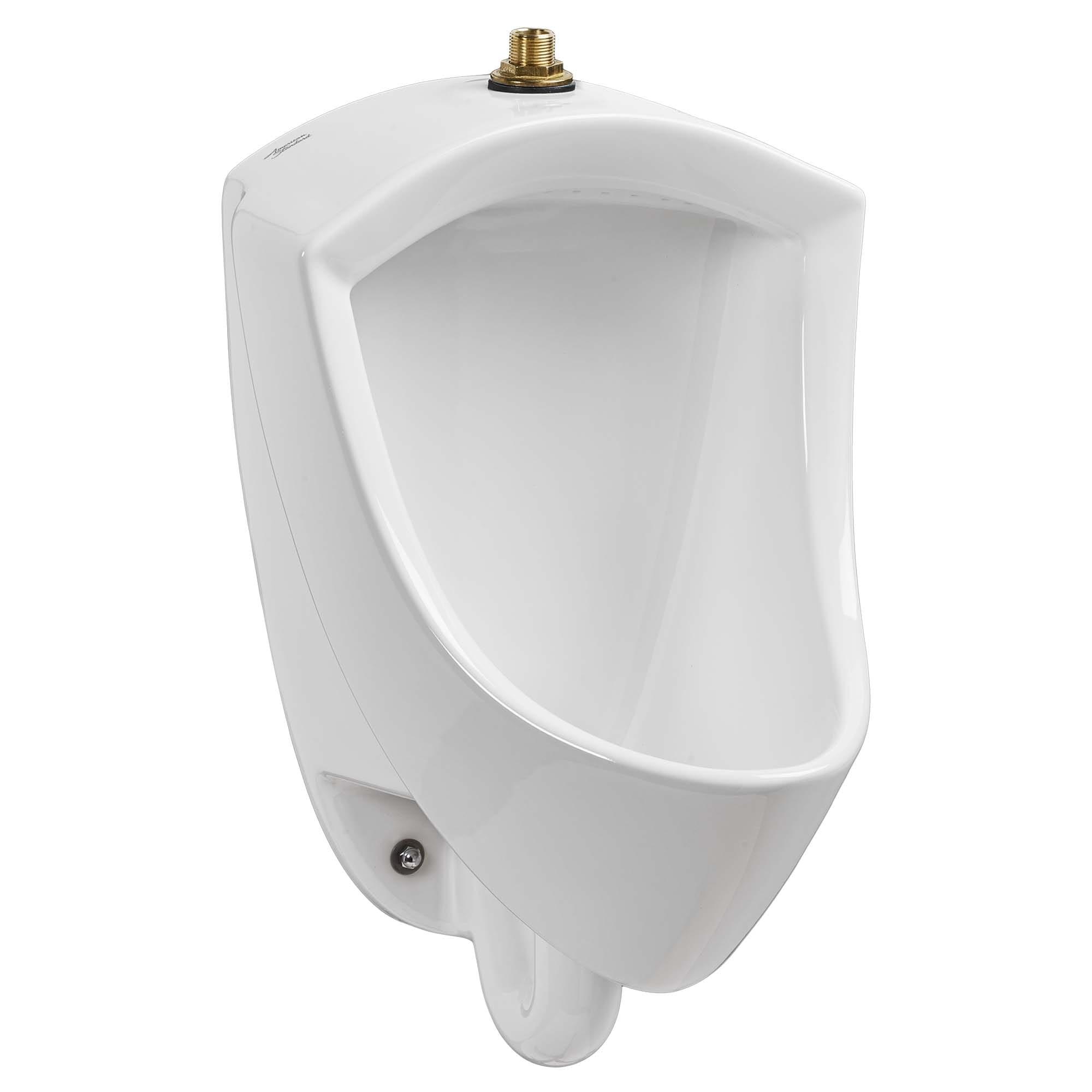

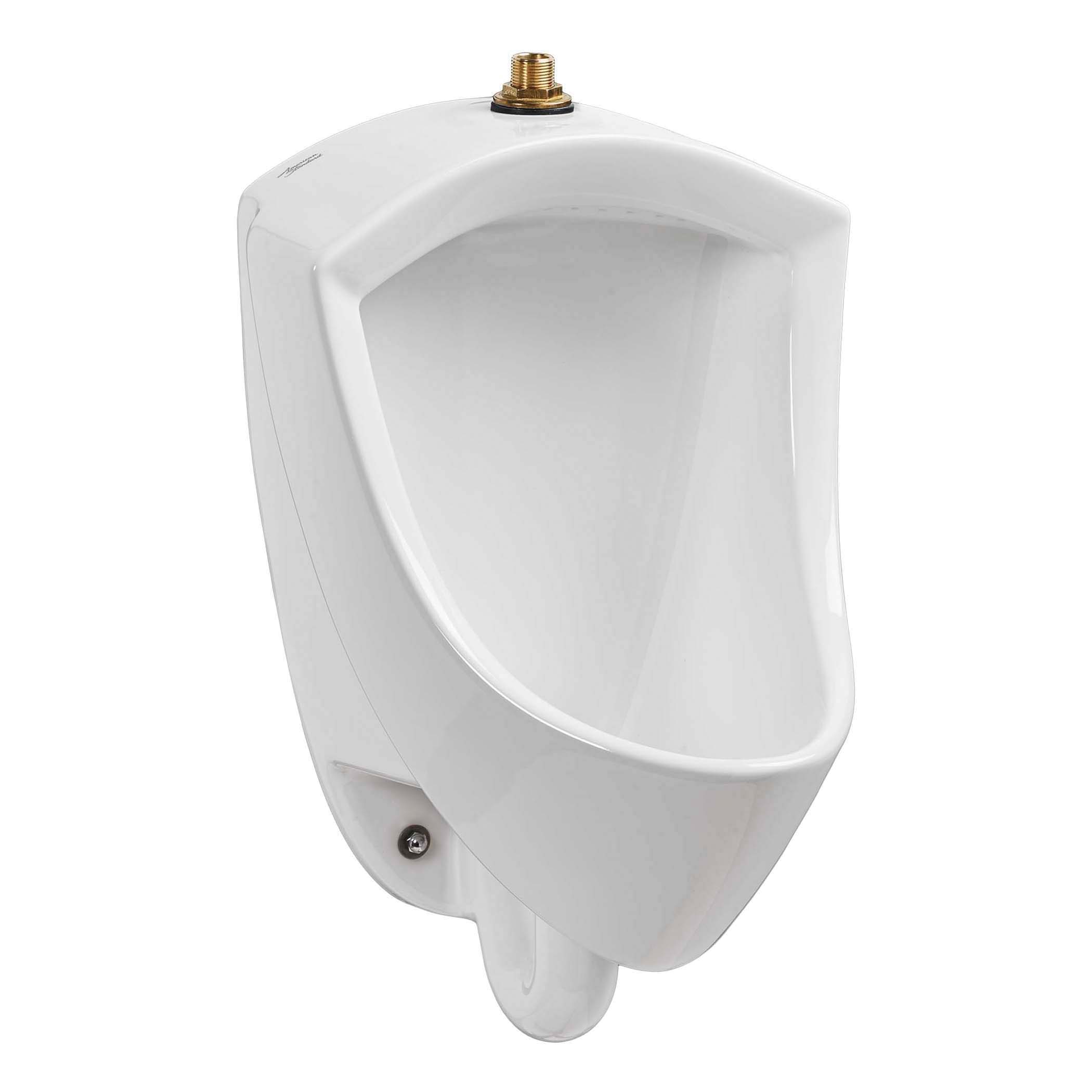

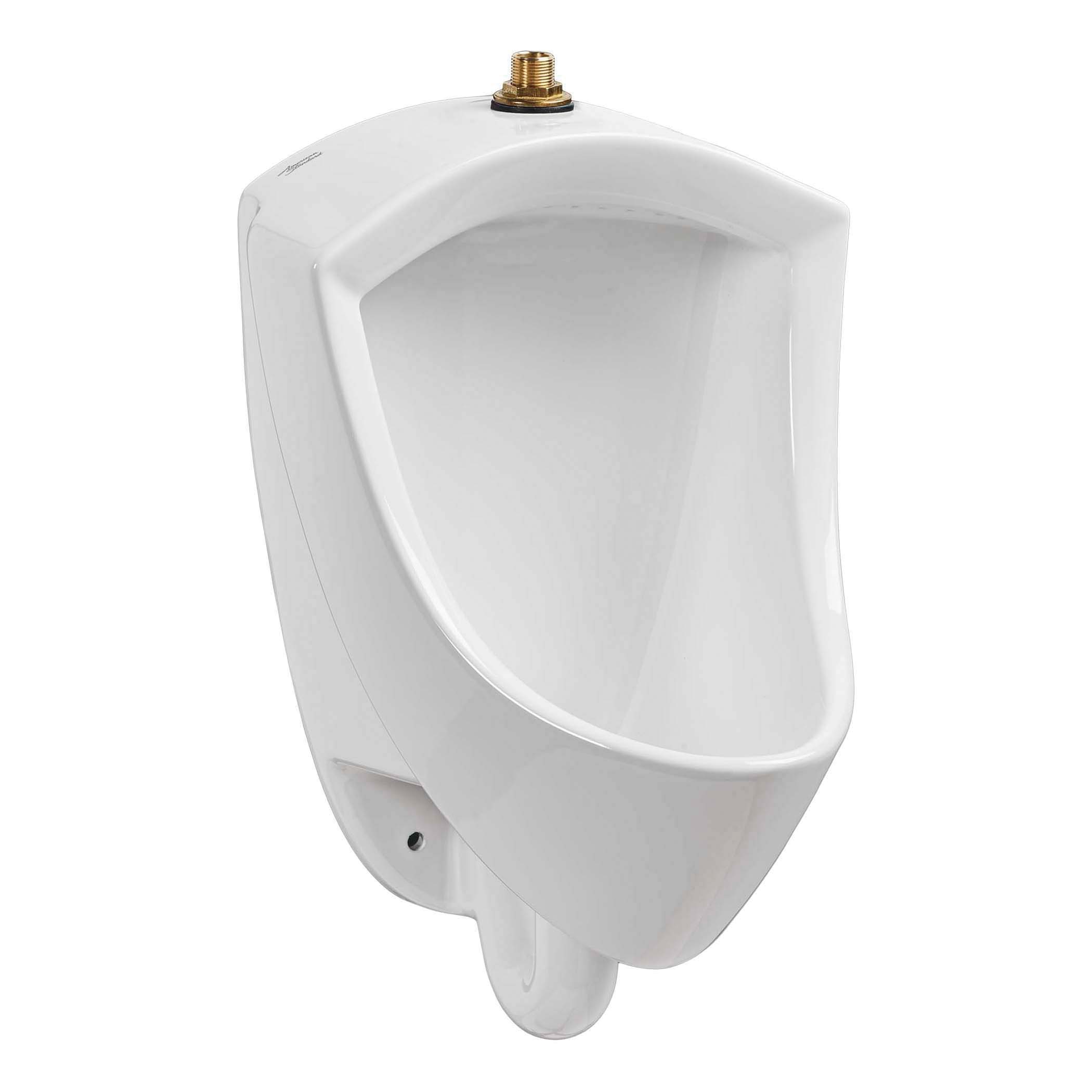

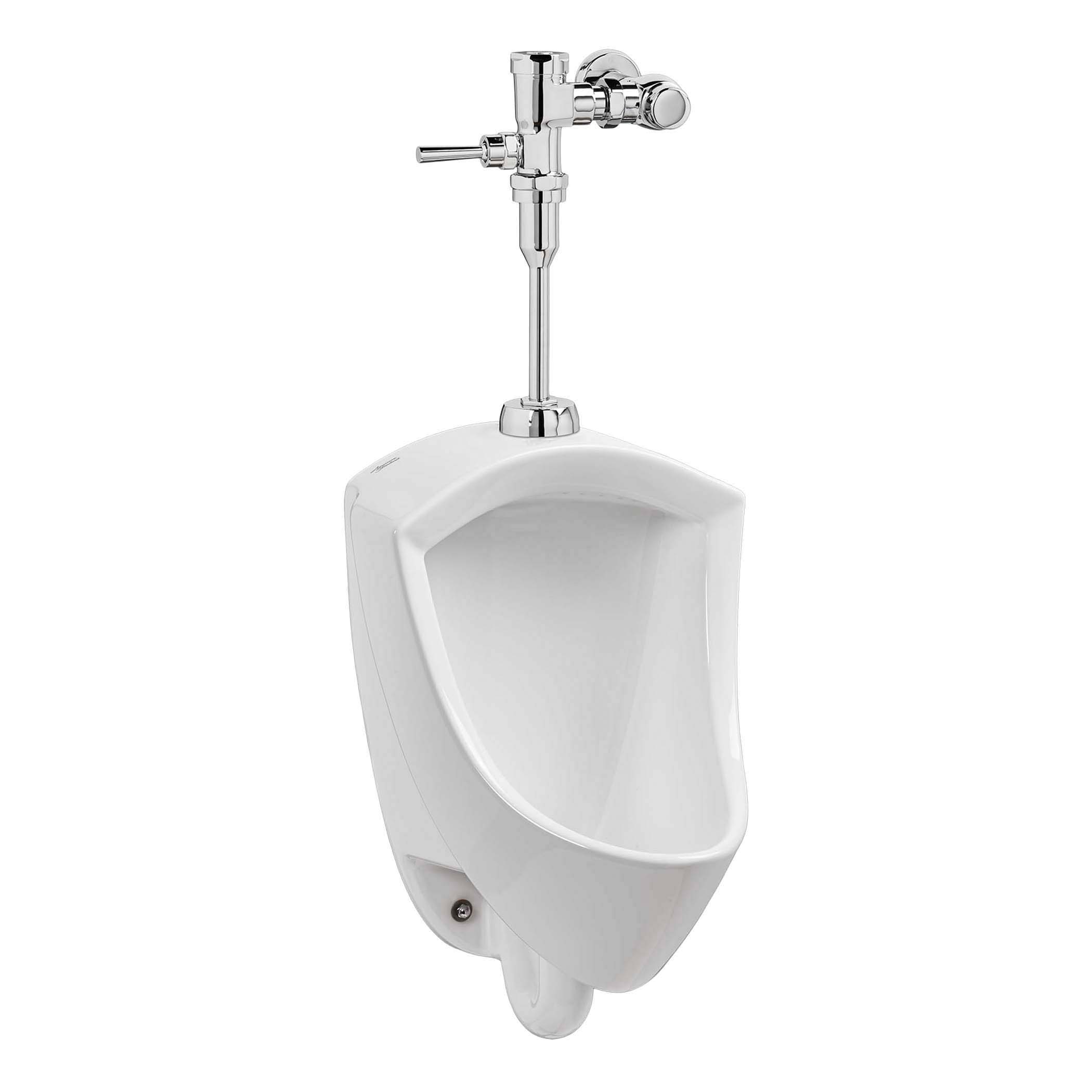

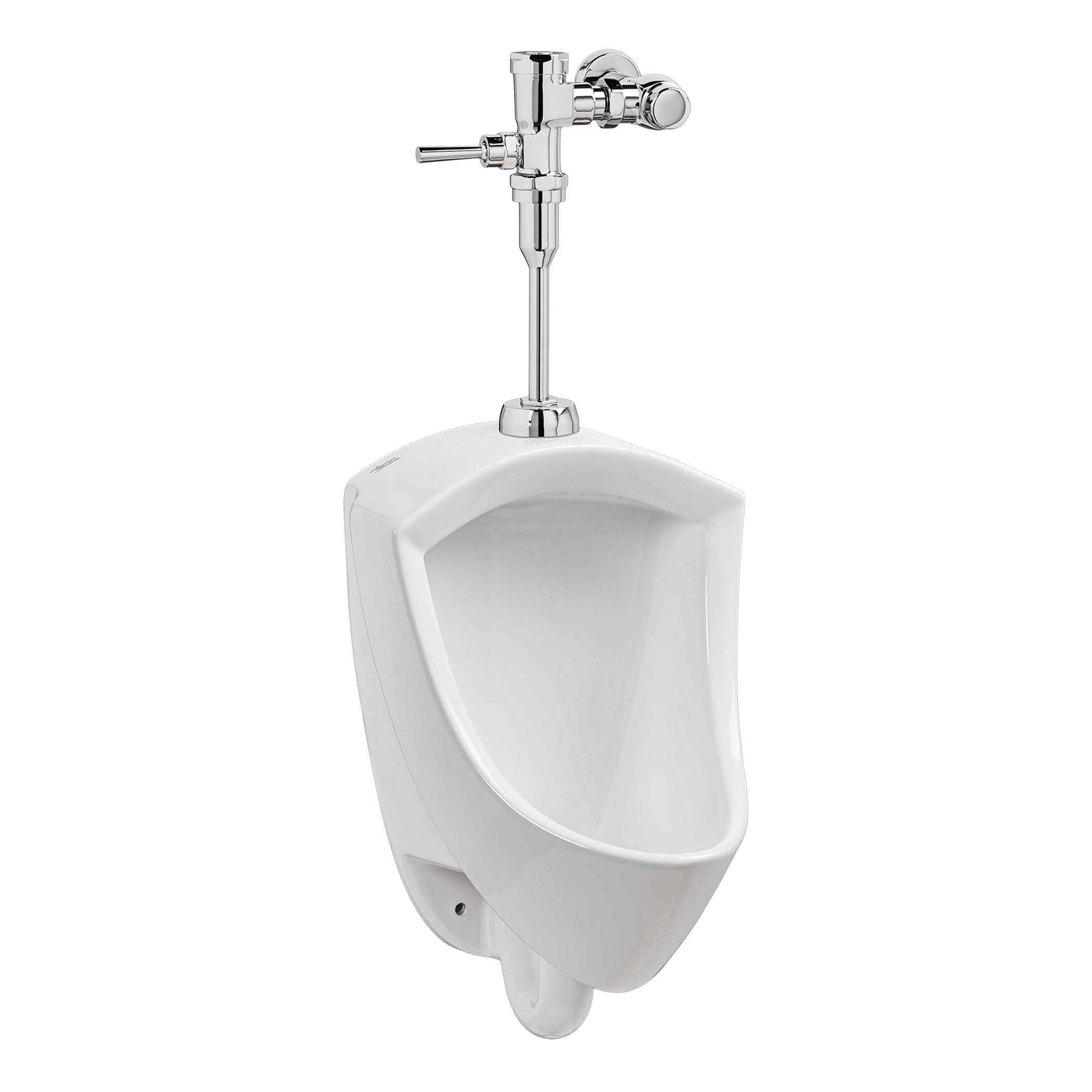

The Pintbrookâ„¢ urinal from American Standard is a smart, vitreous china built, high efficiency washdown urinal, operating in the range of 0.125 to 0.5 gpf to reduce water consumption. This optimized design is expertly crafted to provide superior splash protection. Features a 3/4 in inlet top spud, includes wall hangers for easy installation and limited 1 year warranty.
American Standard Urinal, Pintbrookâ„¢ Collection, 0.125/0.5 gpf Flush, Top Spud Location, 3/4 in Inlet Spud, 2 in NPT Outlet Tap, 80 psi Working, Wall Mounting, Vitreous China, White, 14-5/16 in W x 14-7/16 in D x 22-5/8 in H Dimensions, Import
Collection
|
:
|
Pintbrookâ„¢
|
Flush Rate
|
:
|
0.125/0.5 gpf
|
Spud Location
|
:
|
Top
|
Inlet Spud Size
|
:
|
3/4 in
|
Outlet Tap Size
|
:
|
2 in NPT
|
Working Pressure
|
:
|
80 psi
|
Mounting Type
|
:
|
Wall
|
Material
|
:
|
Vitreous China
|
Finish/Color
|
:
|
White
|
Dimensions
|
:
|
14-5/16 in W x 14-7/16 in D x 22-5/8 in H
|
Domestic/Import
|
:
|
Import
|
- Powerful washdown action
- Optimized chinaware contours provide superior splash protection
- WaterSense® certified when used with 0.125 gpf urinal flush valves
- High efficiency operates in the range of 0.125 gpf to 0.5 gpf (0.47 Lpf/1.9 Lpf)
- Fixture only (flush valve sold separately)
-
