Apollo™ 77FLF10401

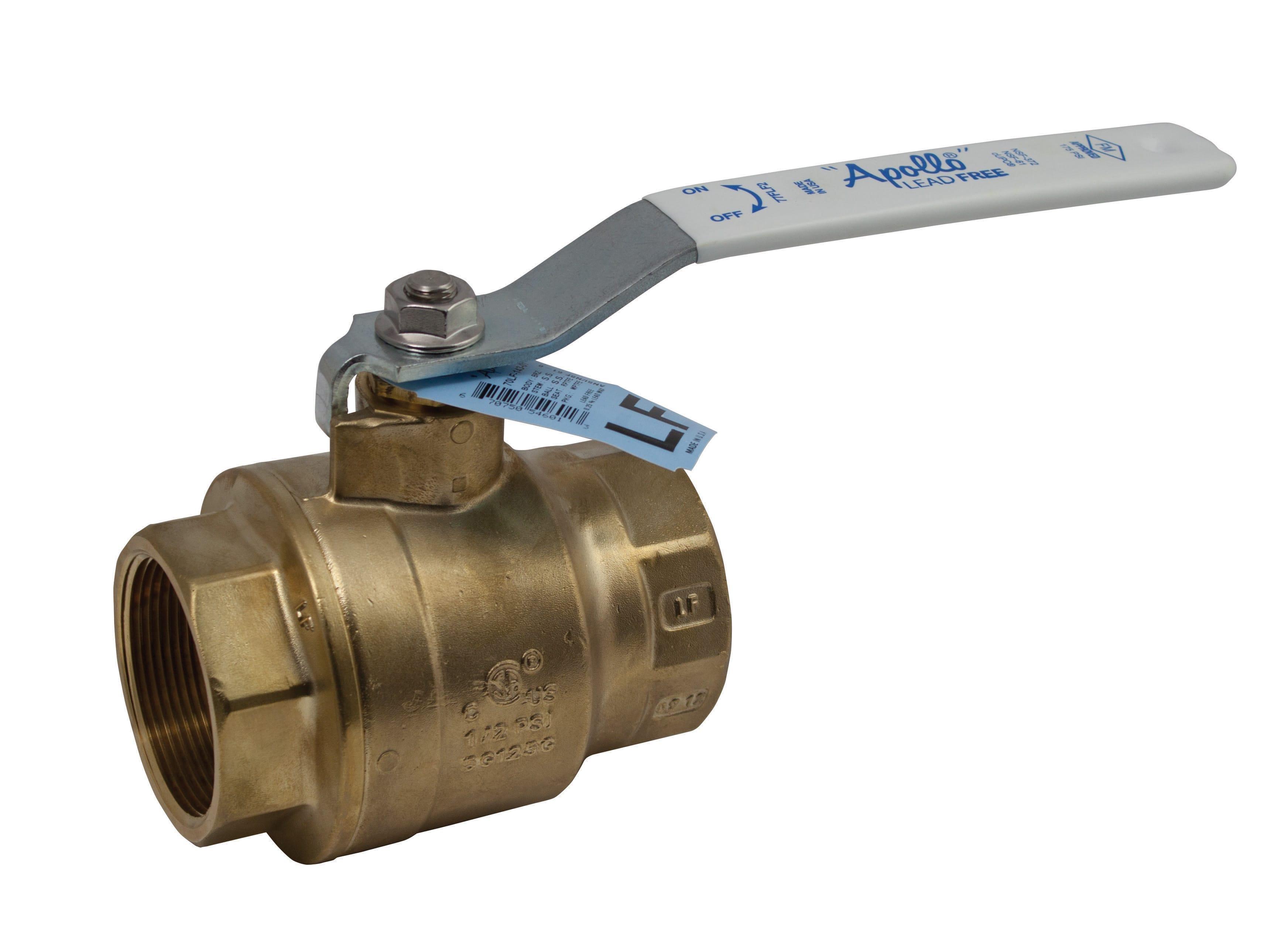

Apollo™ 77FLF10401 77FLF-100 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Full Port, RPTFE Softgoods, Domestic

  • MPN: 77FLF10401
  • TPN: 94658
  • UPC: 670750372162
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 10/BX
  • Login to see Availability

Apollo™, 77FLF10401, Ball Valve, 2-Piece, Series: 77FLF-100, 3/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 2.51 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic

Type      :      2-Piece
Series      :      77FLF-100
Nominal Size      :      3/4 in
End Style      :      FNPT
Pressure Rating      :      600 psi CWP
Temperature Rating      :      0 to 400 deg F
Port Type      :      Full
Actuator Type      :      Lever Operated
Ball Material      :      Chrome Plated Brass
Top to Inlet Center      :      1.91 in
Body Material      :      Forged Brass
Trim Material      :      Brass Stem/RPTFE Seat
Softgoods Material      :      RPTFE
Domestic/Import      :      Domestic
  • Heavy pattern forged design
  • Superior RPTFE seats and packing
  • Adjustable stem packing
  • Blow-out proof stem
  • Dezincification resistant materials
  • 100% factory tested
  • Silicone free assembly
  • Vacuum service to 29 in Hg
  • ASTM B16-C36000 brass gland
  • UNS C27451 Lead free brass retainer
  • Plated steel handle with insulated polyvinyl grip
  • 150 psi steam working pressure

The Apollo™ 77FLF-100 Series is a Lead Free, full port forged brass ball valve suitable for a wide range of plumbing and heating applications, including potable water. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.
