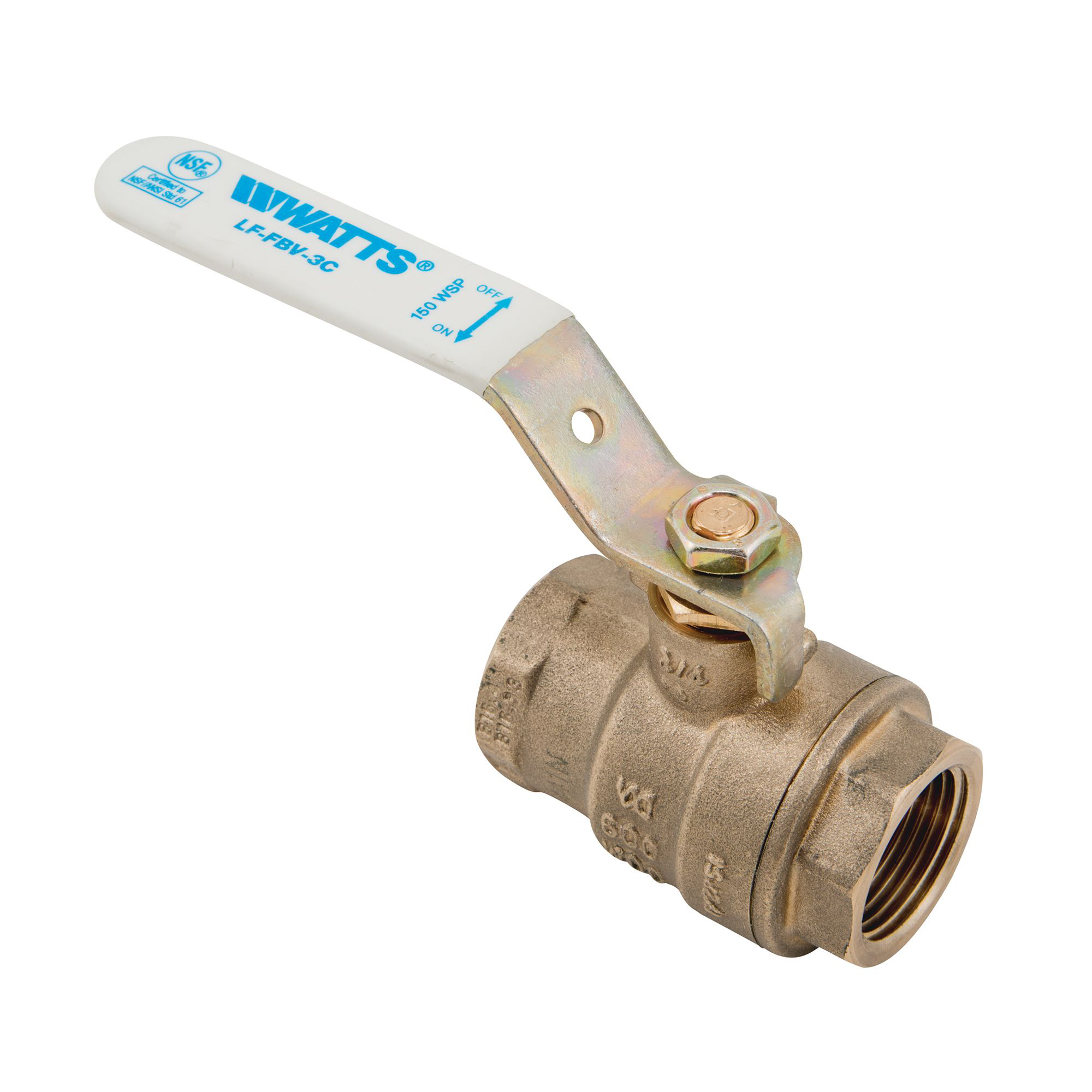

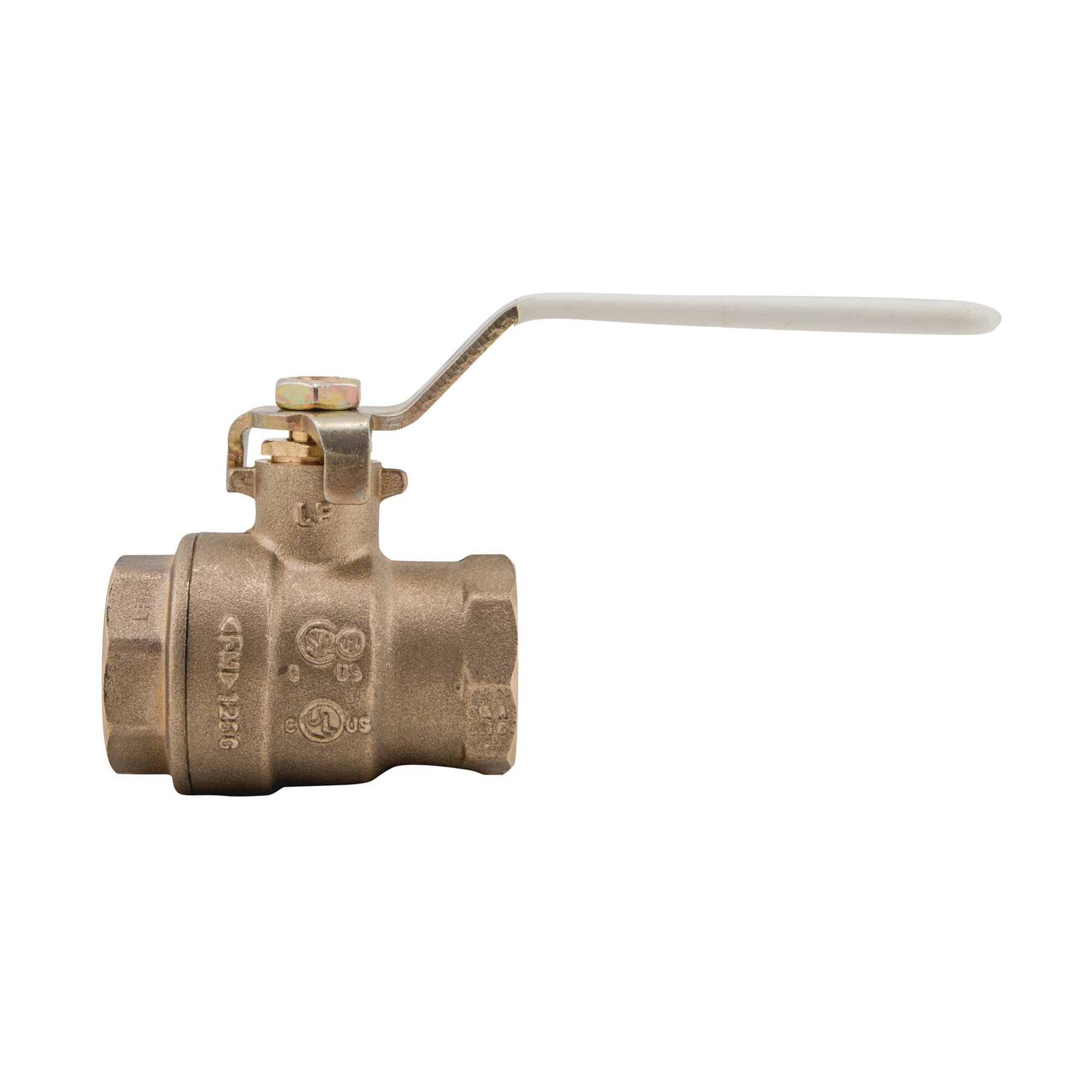

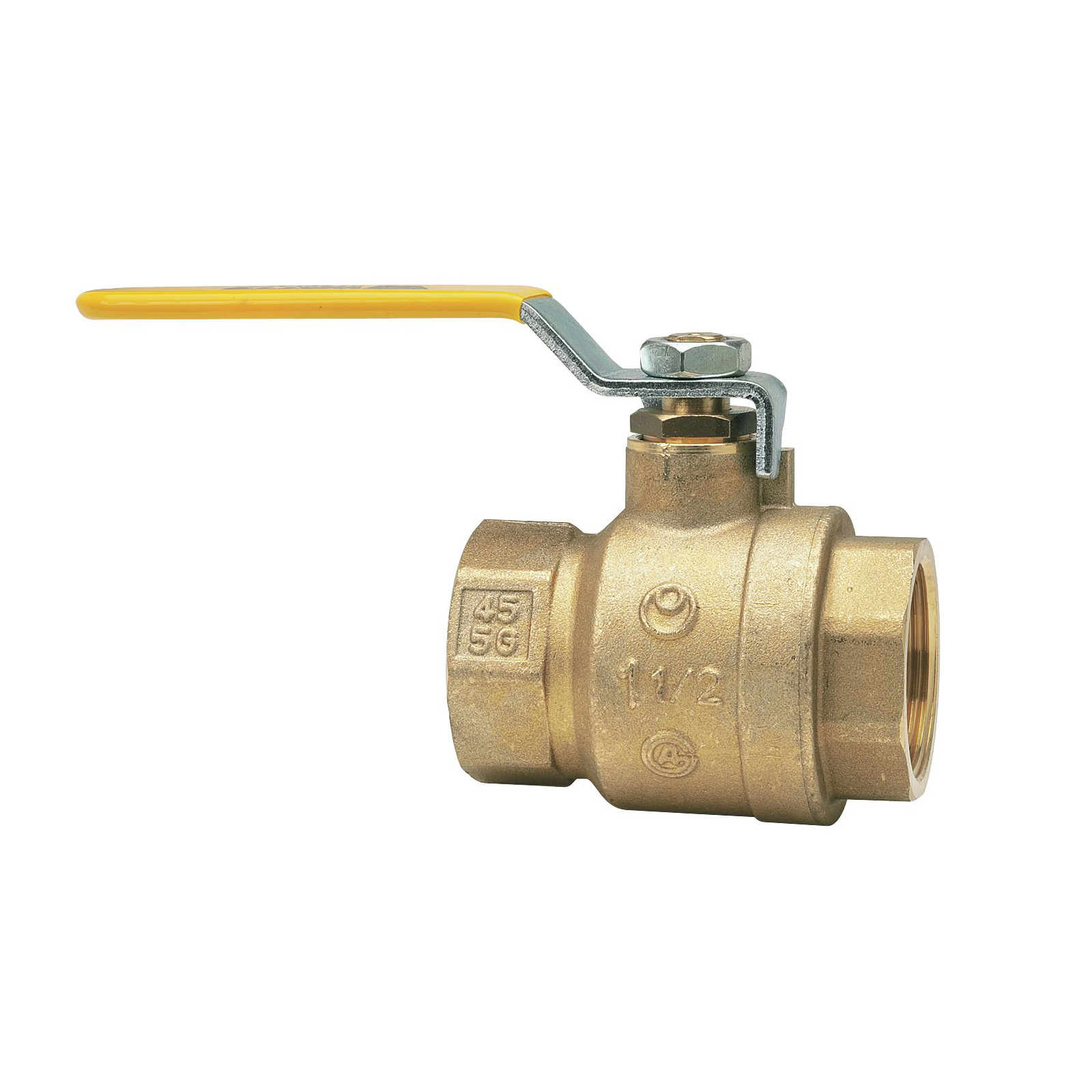

Series LFFBV-3C, LFFBVS-3C Lead Free 2-Piece, Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blow-out proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, copper silicon alloy brass adapter, and steel handle. Model LFFBV-3C has threaded end connections. Model LFFBVS-3C has solder end connections.
WATTS® Ball Valve, 2-Piece, Series: LFFBV-3C, 1-1/4 in Nominal, FNPT End Style, 600 psi Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, Chrome Plated Brass Ball, 3-3/16 in Inlet to Outlet Length, 2-13/16 in Top to Inlet Center, Silicon Alloy Body, Brass Stem and PTFE Seat Trim, Fluorocarbon/PTFE Softgoods, Import
Type | : | 2-Piece |
Series | : | LFFBV-3C |
Nominal Size | : | 1-1/4 in |
End Style | : | FNPT |
Pressure Rating | : | 600 psi |
Temperature Rating | : | -40 to 400 deg F |
Port Type | : | Full |
Media | : | Gas/Liquids |
Ball Material | : | Chrome Plated Brass |
Top to Inlet Center | : | 2-13/16 in |
Body Material | : | Silicon Alloy |
Trim Material | : | Brass Stem and PTFE Seat |
Softgoods Material | : | Fluorocarbon/PTFE |
Domestic/Import | : | Import |
