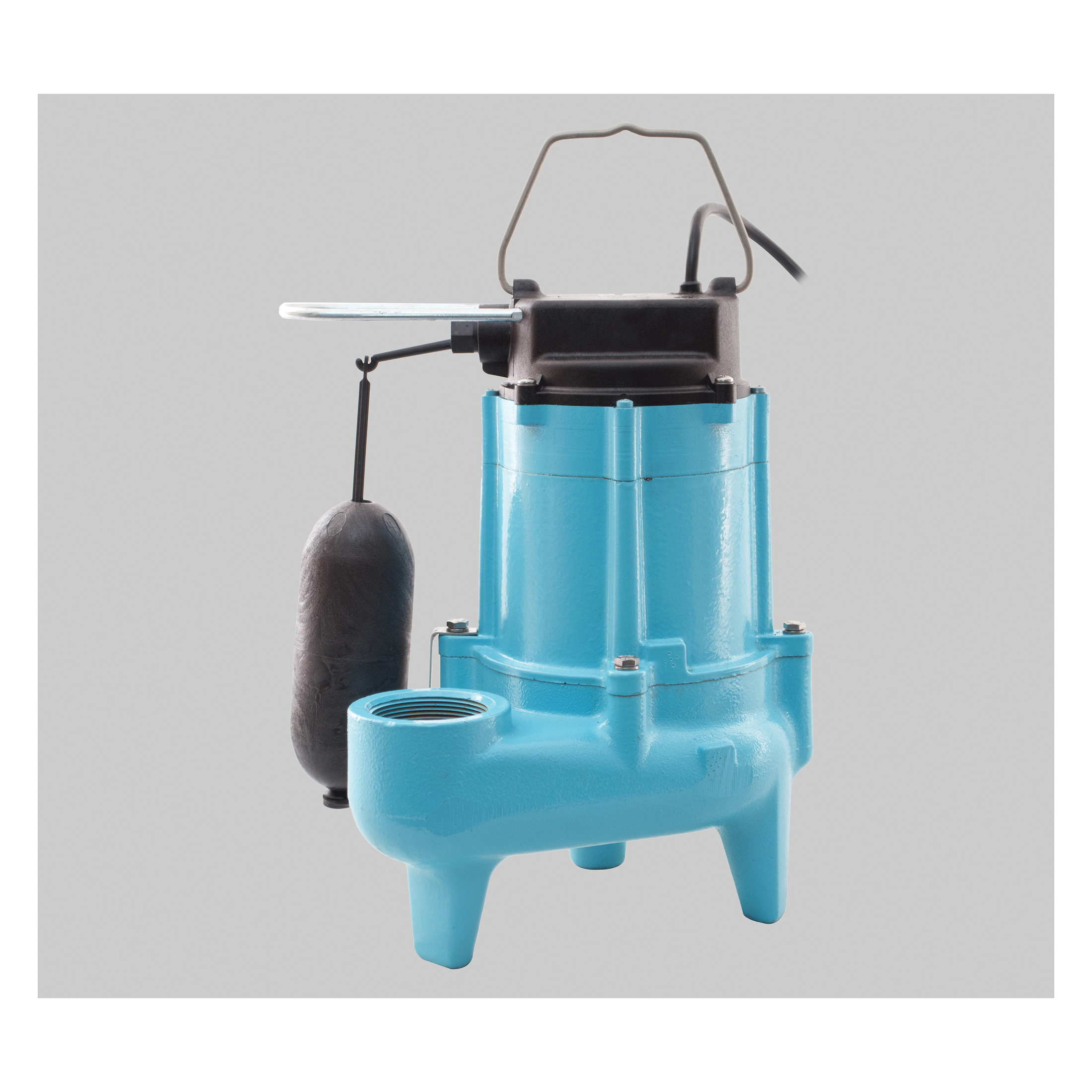

Little Giant® Sewage Pump, Series: 9SN, 110 gpm Flow Rate, 2 in FNPT Outlet, 20 ft Maximum Head, 4/10 hp, 115 VAC, 8.5 A, 60 Hz Frequency, 1 ph ph, 8.7 psi Maximum, SJTW 20 ft Cord, Vortex Nylon Impeller, 140 deg F, Upper Sintered Sleeve/Lower Ball Bearing, 10.54 in L x 9.25 in W x 13.12 in H Dimensions, Import
| Series | : | 9SN |
| Outlet Size | : | 2 in FNPT |
| Maximum Head | : | 20 ft |
| Horsepower | : | 4/10 hp |
| Voltage Rating | : | 115 VAC |
| Frequency Rating | : | 60 Hz |
| Maximum Pressure | : | 8.7 psi |
| Flow Rate | : | 110 gpm |
| Cord Type | : | SJTW 20 ft |
| Impeller Type | : | Vortex Nylon |
| Temperature Rating | : | 140 deg F |
| Bearing Type | : | Upper Sintered Sleeve/Lower Ball |
| Amperage Rating | : | 8.5 A |
| Dimensions | : | 10.54 in L x 9.25 in W x 13.12 in H |
| Domestic/Import | : | Import |
- Energy-saving low amp draw
- Designed for continuous operation
- Handles solids up to 2 in Dia
- Integral snap-action float switch operation
-
Catalog
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Little_Giant_513100_Catalog.pdf
-
Instruction/Installation Manual
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Little_Giant_509203_Manual.pdf
-
Specification Sheet
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Little_Giant_509203_Specification_Sheet.pdf
-
Video Link
