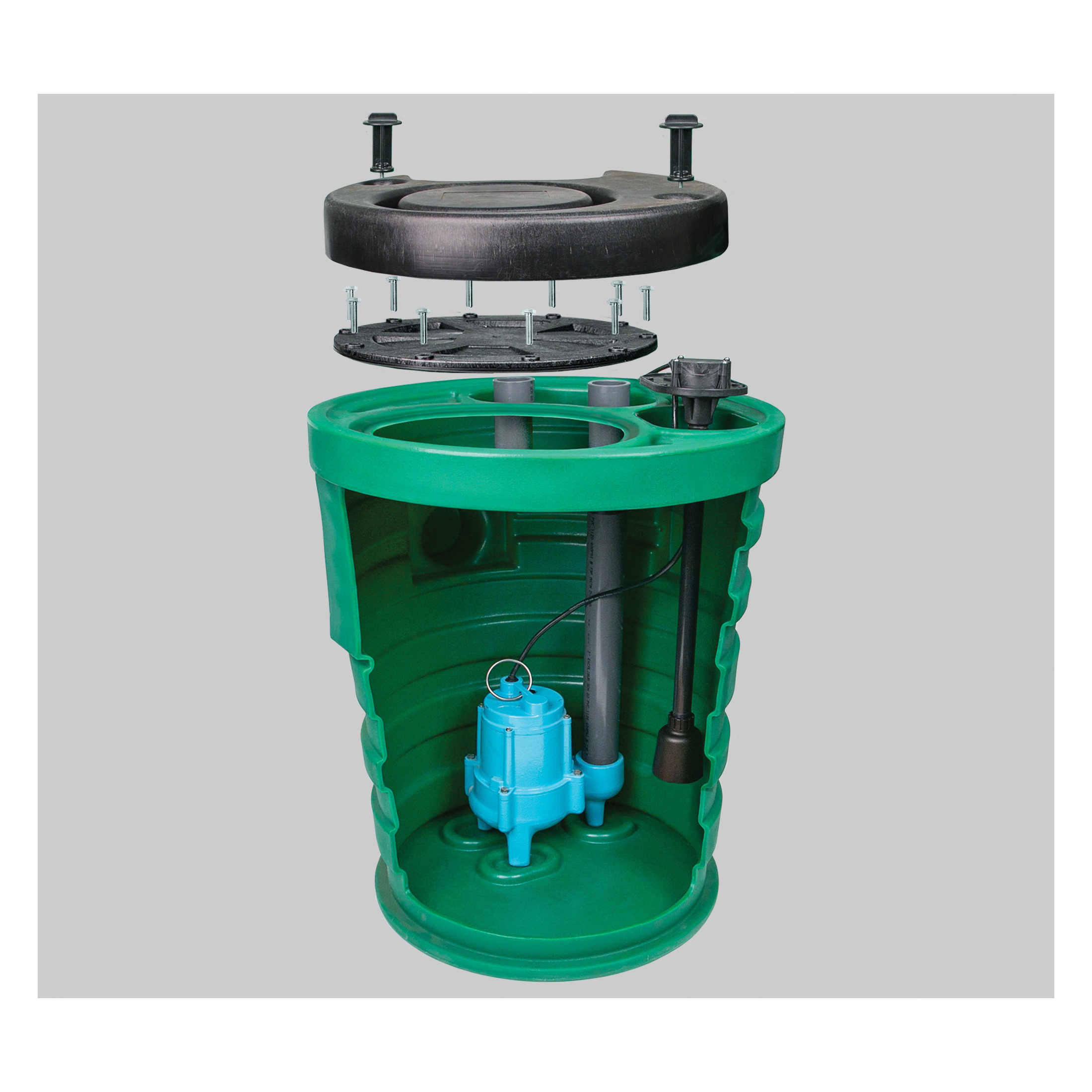

Little Giant® Premium Simplex Package System, Series: Pit Plus® Jr, 6600 gph, 4 in Inlet, 120 V, 1 ph, 4/10 hp, 20 ft Maximum Head, Float Switch, 2 in Solids Handling, Domestic
| Series | : | Pit Plus® Jr |
| Flow Rate | : | 6600 gph |
| Inlet Size | : | 4 in |
| Voltage Rating | : | 120 V |
| Horsepower | : | 4/10 hp |
| Maximum Head | : | 20 ft |
| Switch Type | : | Float |
| Solids Handling | : | 2 in |
| Domestic/Import | : | Domestic |
- Roto-molded polyethylene basin
- Radial rib design for extra strength
- Molded inlet hub
- Molded anti-torque stops
- 360 deg molded handle
- Integrated anti-floatation collar
- Pre-assembled
- Functional and aesthetic finish cover
- Pump access cover
- Recessed discharge and vent location
- Independent recessed switch module
- Monolithic molded basin top
- Switch cord grips and locators for directional control
- 6600 gph at 5 ft H
-
Catalog
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Little_Giant_513100_Catalog.pdf
-
Instruction/Installation Manual
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Little_Giant_509661_Manual.pdf
-
Specification Sheet
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Little_Giant_509673_Specification_Sheet.pdf
-
Video Link
New switch introducing the new ECM™ for added reliability. The ECM™ (External Control Module) uses a bell inside the basin to monitor liquid level for operation of a switch outside the basin (in the cover) and isolated from liquid. This reduces any chance of water intrusion, which can result in switch failure. No moving switch parts inside the basin eliminates failure from hang-ups.
