Sharkbite® 23808-0045

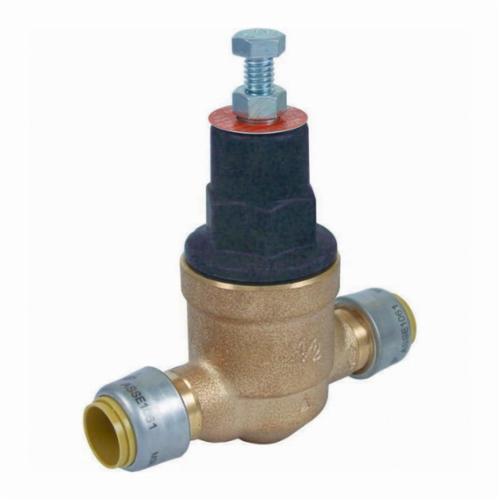

Sharkbite® 23808-0045 EB45 Pressure Regulating Valve With SharkBite® Direct Connector, 3/4 in Nominal, Push-Fit End Style, 45 psi Pressure, Bronze Body, Domestic
- MPN: 23808-0045
- TPN: 111004
- UPC: 697285238084
- Min Order Qty: 1
- Quantity Interval: 1
- Sold As: 1/BG
- Login to see Availability
The Cash Acme EB-45 Direct SharkBite Valve (EB45-DSB) is a lead free half-cartridge based pressure reducing and regulating valve with a bronze body. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge based valve. The EB45-DSB is assembled using modular construction methods and features integral SharkBite connections in 1/2 in through 1 in sizes. Connect the SharkBite pressure regulating valve to copper tubing, and CTS CPVC and PEX in seconds with ease. The EB45-DSB is supplied by the factory with a standard delivery Setting of 45 psi. The outlet pressure can be adjusted from 10-70 psi without changing the spring. This valve is intended for use where supply line pressure does not exceed 200 psi, and is suited for either cold or hot (to 180 degF) water service. All models are lead free.

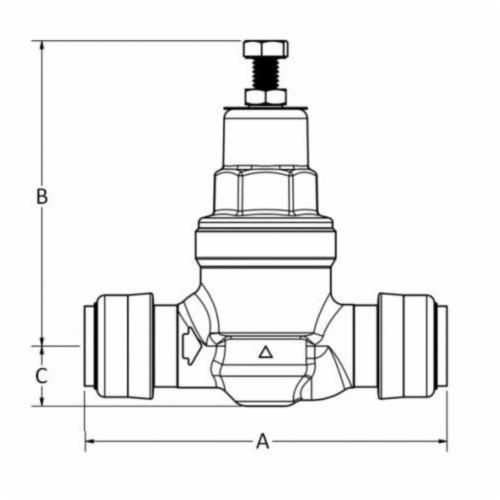

Sharkbite® Pressure Regulating Valve, Series: EB45, 3/4 in Nominal, Push-Fit, 45 psi, 180 deg F, Media: Water, 4.48 in Inlet to Outlet Length, 4.37 in Top to Inlet Center, Bronze Body, Brass/Stainless Steel Trim, EPDM O-Ring, Domestic
| Series | : | EB45 |
| Nominal Size | : | 3/4 in |
| End Style | : | Push-Fit |
| Pressure Rating | : | 45 psi |
| Temperature Rating | : | 180 deg F |
| Media | : | Water |
| Inlet to Outlet Length | : | 4.48 in |
| Top to Inlet Center | : | 4.37 in |
| Body Material | : | Bronze |
| Trim Material | : | Brass/Stainless Steel |
| Softgoods Material | : | EPDM O-Ring |
| Domestic/Import | : | Domestic |
- Modular cartridge design reduces the number of parts requiring service-quick and easy service/repair
- Instant push-fit connections for increased ease of use-no soldering, glue or tools required to make connection
- Rugged bronze body-superior reliability, improved user safety
- Compact pressure reducing valves-smaller installation footprint and economically priced
- Back-pass check mechanism integral with the cartridge-no add-on or small parts, longer life and more reliable performance
- Every valve is tested for performance prior to shipping-specify and install with confidence
- Lead free
- 200 psi maximum pressure
- 10 to 70 psi outlet pressure range
- Reinforced EPDM diaphragm polyphenylene ether +PS body seat
