Eemax™ AM010277T 103887
Send Print

Eemax™ AM010277T

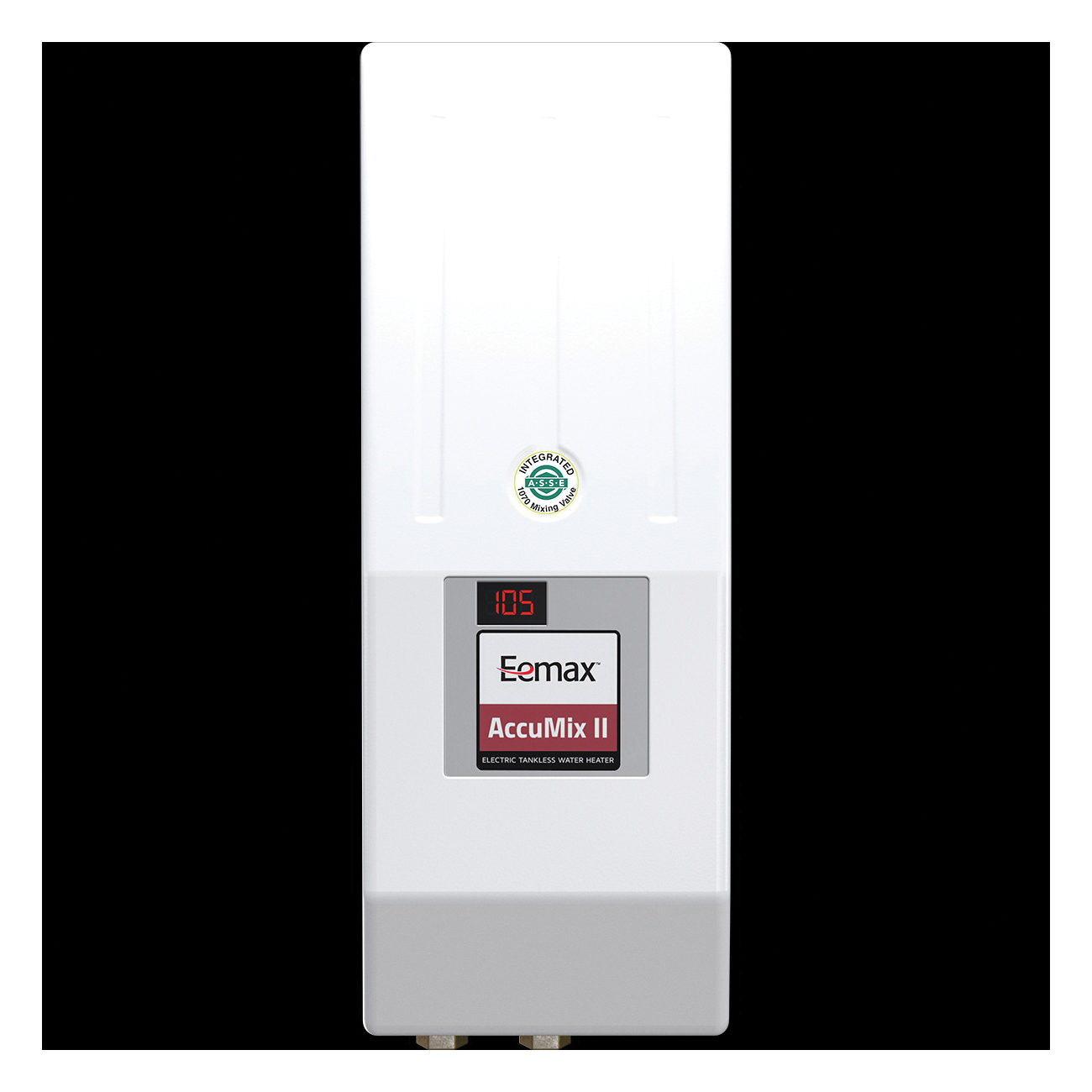

Eemax™ AM010277T AccuMix II™ Multi-Directional Feed Electric Tankless Water Heater With Mixing Valve, 277 V, 10 kW Power Rating, 1 ph Phase, 3/8 in Compression Water, 36 A, Commercial

  • MPN: AM010277T
  • TPN: 103887
  • UPC: 091654924491
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Login to see Availability

Eemax™ Electric Tankless Water Heater, Multi-Directional Feed, Series: AccuMix II™, 277 V, 36 A, 10 kW, 1 ph, 2.5 gpm, 3/8 in Compression Water Connection, Nickel Chrome Heating Element, 8 AWG Wire, Wall Mount, 35 to 150 psi Dynamic, 105 to 110 deg F, ASME Yes/No: No, ABS, White, 5-1/4 in W x 4 in D x 13-3/4 in H, Commercial/Residential/Dual: Commercial, Domestic

Type      :      Multi-Directional Feed
Series      :      AccuMix II™
Voltage Rating      :      277 V
Amperage Rating      :      36 A
Power Rating      :      10 kW
Phase      :      1 ph
Flow Rate      :      2.5 gpm
Water Connection      :      3/8 in Compression
Heating Element      :      Nickel Chrome
Wire Size      :      8 AWG
Mounting Type      :      Wall
Pressure Rating      :      35 to 150 psi Dynamic
Temperature Rating      :      105 to 110 deg F
ASME Yes/No      :      No
Material      :      ABS
Color      :      White
Dimensions      :      5-1/4 in W x 4 in D x 13-3/4 in H
Commercial/Residential/Dual      :      Commercial
Domestic/Import      :      Domestic
  • Endless hot water for sensor or metering faucets
  • Unit meets UPC 407.3 requirements when properly installed
  • Self-diagnostics with intelligent controls actively protect heater in installed environment
  • SafeStart™ technology engages upon start-up to help avoid dry-fire occurrence
  • Mounts in any orientation for a flexible installation

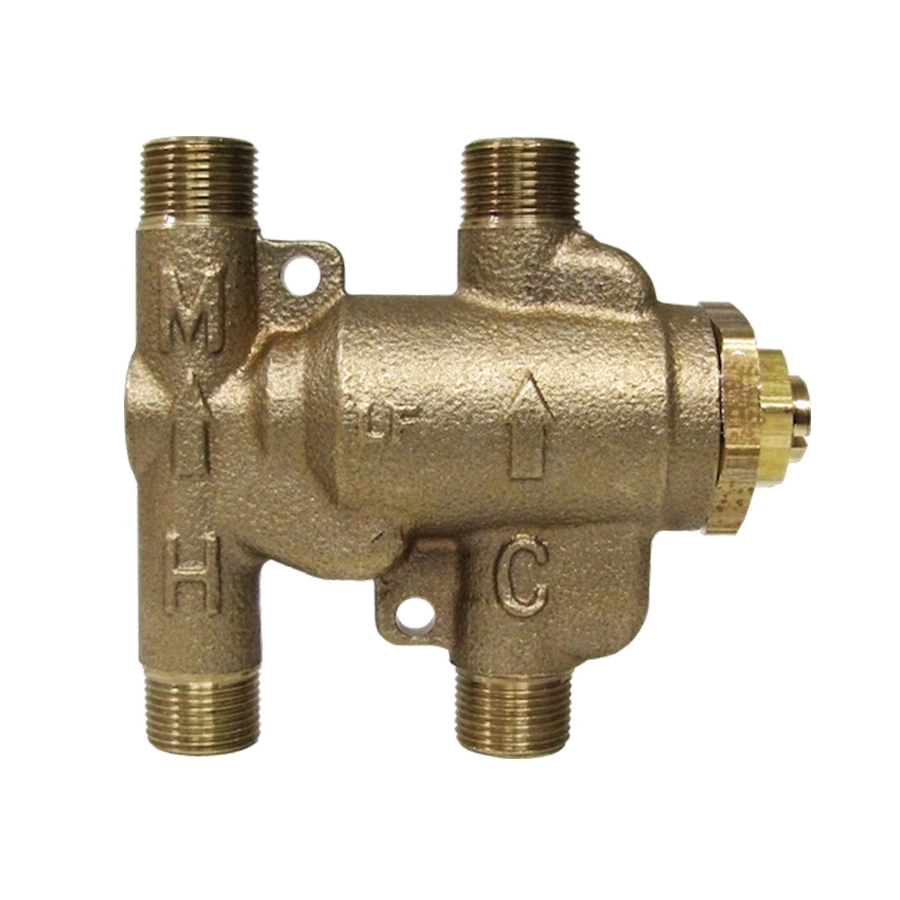

  • Integrated ASSE 1070 rated mixing valve for code compliant hand washing
  • On demand hot water - No delay
  • Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
  • Endless hot water - No storage capacity to deplete
  • Reduces installation cost and material - No T and P valve required
  • Glass reinforced heating chambers in a unique flow path ensures optimum heat transfer and extended element life
  • Easy Installation - Simple NPT fittings that require no soldering
  • Unit mounts directly to the wall with common hardware
  • Replaceable nickel chrome bare wire cartridge
  • Without thermostat
  • For pre-heated or cold water feed
