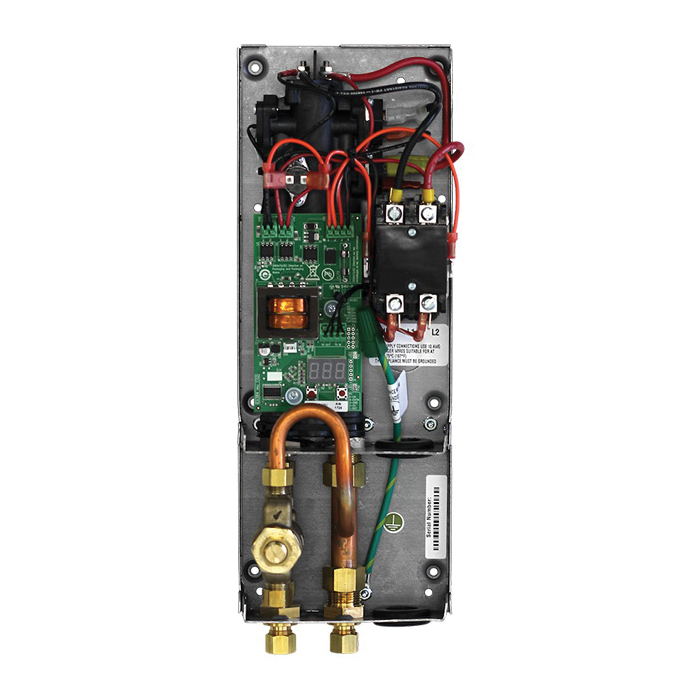

Eemaxâ„¢ Electric Tankless Water Heater, Multi-Directional Feed, Series: AccuMix IIâ„¢, 277 V, 29 A, 8 kW, 1 ph, 2.5 gpm, 3/8 in Compression Water Connection, Nickel Chrome Heating Element, 10 AWG Wire, Wall Mount, 35 to 150 psi Dynamic, 105 to 110 deg F, ASME Yes/No: No, ABS, White, 5-1/4 in W x 4 in D x 13-3/4 in H, Commercial/Residential/Dual: Commercial, Domestic
Type
|
:
|
Multi-Directional Feed
|
Series
|
:
|
AccuMix IIâ„¢
|
Voltage Rating
|
:
|
277 V
|
Amperage Rating
|
:
|
29 A
|
Power Rating
|
:
|
8 kW
|
Phase
|
:
|
1 ph
|
Flow Rate
|
:
|
2.5 gpm
|
Water Connection
|
:
|
3/8 in Compression
|
Heating Element
|
:
|
Nickel Chrome
|
Wire Size
|
:
|
10 AWG
|
Mounting Type
|
:
|
Wall
|
Pressure Rating
|
:
|
35 to 150 psi Dynamic
|
Temperature Rating
|
:
|
105 to 110 deg F
|
ASME Yes/No
|
:
|
No
|
Material
|
:
|
ABS
|
Color
|
:
|
White
|
Dimensions
|
:
|
5-1/4 in W x 4 in D x 13-3/4 in H
|
Commercial/Residential/Dual
|
:
|
Commercial
|
Domestic/Import
|
:
|
Domestic
|
- Endless hot water for sensor or metering faucets
- Unit meets UPC 407.3 requirements when properly installed
- Self-diagnostics with intelligent controls actively protect heater in installed environment
- SafeStartâ„¢ technology engages upon start-up to help avoid dry-fire occurrence
- Mounts in any orientation for a flexible installation

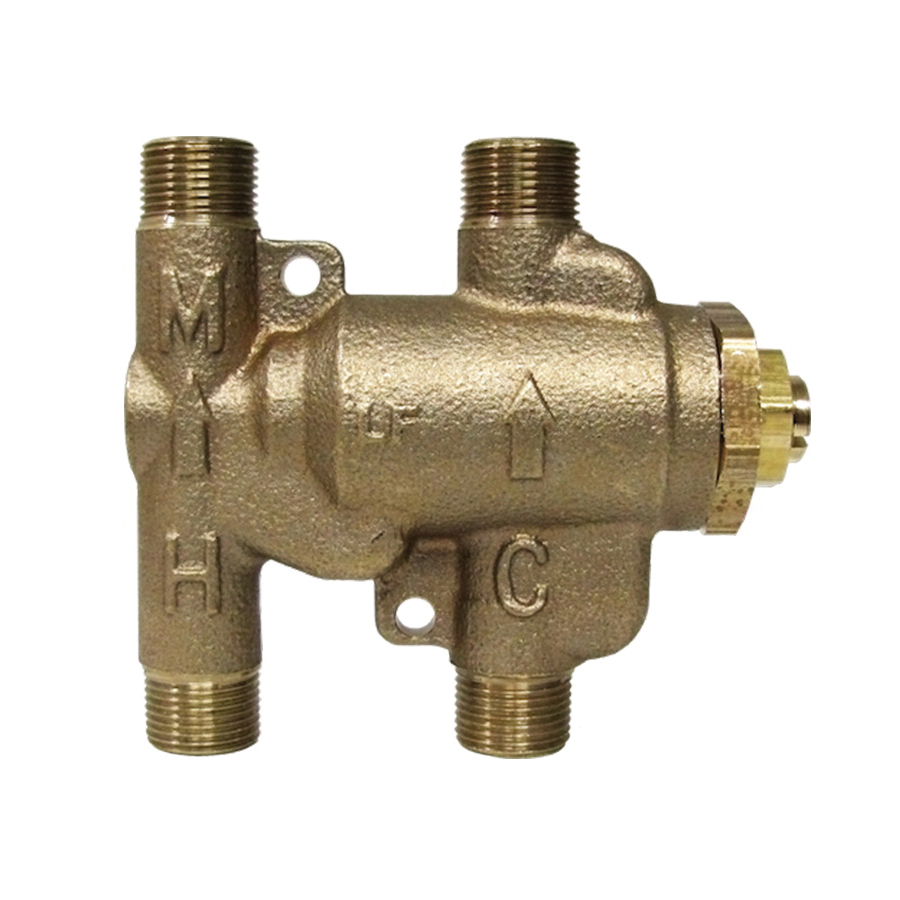

- Integrated ASSE 1070 rated mixing valve for code compliant hand washing
- On demand hot water - No delay
- Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
- Endless hot water - No storage capacity to deplete
- Reduces installation cost and material - No T and P valve required
- Glass reinforced heating chambers in a unique flow path ensures optimum heat transfer and extended element life
- Easy Installation - Simple NPT fittings that require no soldering
- Unit mounts directly to the wall with common hardware
- Replaceable nickel chrome bare wire cartridge
- Without thermostat
- For pre-heated or cold water feed
-
Instruction/Installation Manual
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Eemax_AM004120T_Manual.pdf
-
Specification Sheet
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Eemax_AM004120T_Specification_Sheet.pdf
-
Video Link
https://youtu.be/cWuGSIe__Tc
-
Warranty Information
https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Eemax_HM013240_Warranty.pdf
