Sharkbite® SB113532F

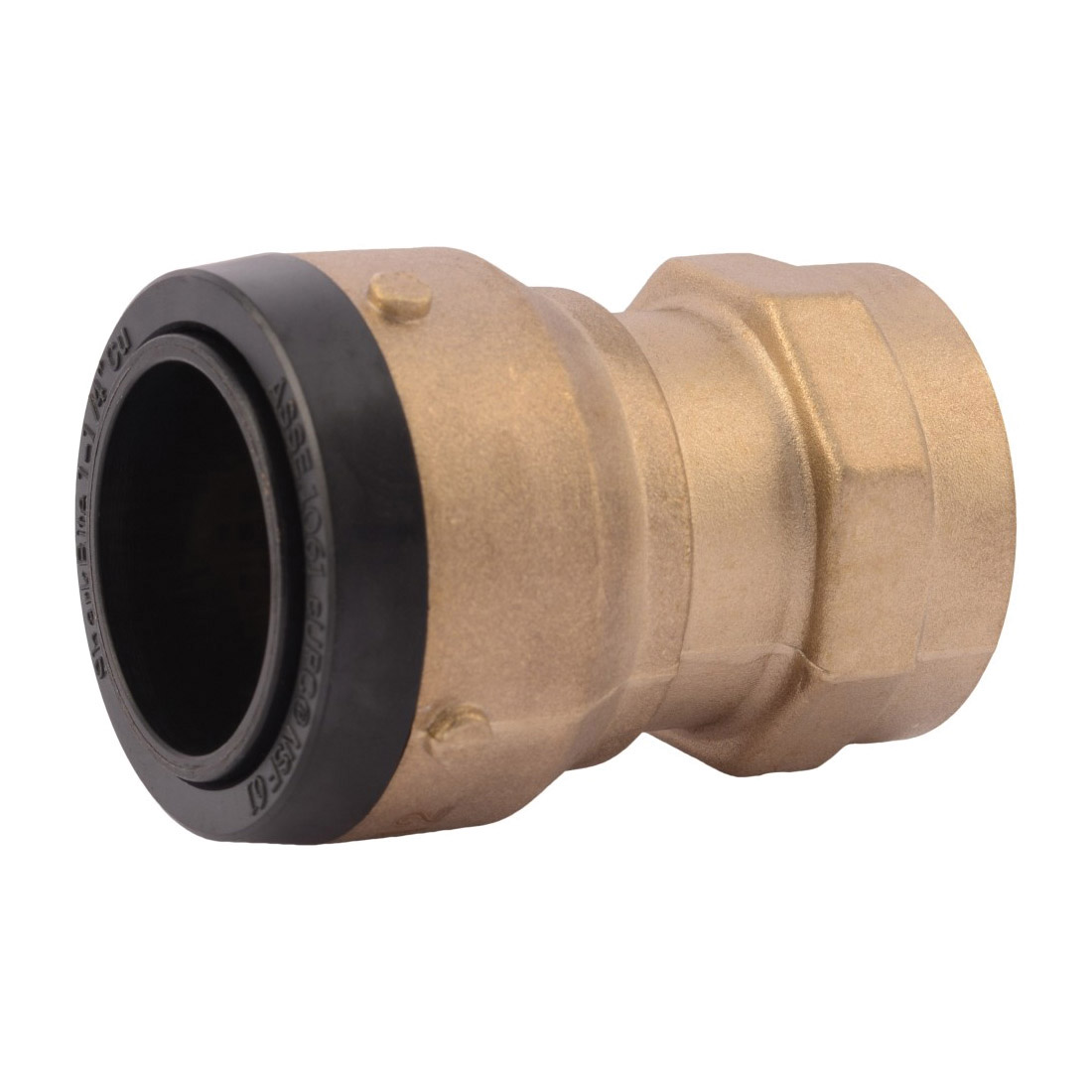

Sharkbite® SB113532F 2XL Large Diameter Female Connector, 1-1/4 in Nominal, Push-Fit x FNPT End Style, Brass, Import

  • MPN: SB113532F
  • TPN: 28489
  • UPC: 697285000834
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 1/BG
  • Login to see Availability

Sharkbite® Female Connector, Large Diameter, Series: 2XL, Fitting/Connector Type: Connector, 1-1/4 in Nominal, Push-Fit x FNPT, 200 psi, 20 to 200 deg F, Brass, 2.98 in L, Import

Type      :      Large Diameter
Series      :      2XL
Fitting/Connector Type      :      Connector
Nominal Size      :      1-1/4 in
End Style      :      Push-Fit x FNPT
Pressure Rating      :      200 psi
Temperature Rating      :      20 to 200 deg F
Material      :      Brass
Dimensions      :      2.98 in L
Domestic/Import      :      Import
  • Quick connect - No tools, soldering, clamps, unions or glue required, cut pipe square, de-burr to remove rough edges/debris, mark the pipe for correct depth and push to get a pressure ready connection every time
  • Quick disconnect - Disconnect in seconds by sliding the de-mount tool down the pipe to engage the demount lugs and rotate clockwise to lock the open position leaving both hands free, you can now remove the pipe
  • SAFE-recessed release collar - Commercial SharkBite® require a special demount tool and cannot be accidentally disconnected/released
  • Extensive range including slip feature on couplings and tee's - When repairing or tapping into existing pipe with push-fittings you must be able to either move the fitting or the pipe to ensures the pipe is engaged fully into the fitting, with rigid pipe like copper the only way with push-fittings is to have a slip feature to allow easy installation when tapping into existing pipe
  • Easy installation unlike the tool intensive connection methods there is no need to send multiple fitters to a job, SharkBite® commercial has been designed to be installed or removed by one person
  • All fittings are lubricated for easy connection and by fitting the de-mount tool before engaging the pipe the force required can be reduced further
  • Wet or dry - No waiting for copper tube to dry before soldering or glue to cure, SharkBite® makes an instant connection in seconds
  • No tools - Unlike alterative tool intensive connections systems, SharkBite® has no special tooling required for installation
  • No time - Fastest connection - cut-push-done, easy access to small or confined places, no flame - does not require fire permit or fire marshal
  • No waste - Should you make an error or simply want to change your installation, no problem for SharkBite®, simply remove and re-use, (fitting used for repeated testing must not be used in any permanent application)
  • Fittings cannot be disassembled - SharkBite® commercial fitting are factory assembled and components cannot be removed
  • Long pipe engagement - Provides pipe support against lateral pipe forces
  • Lead free (LF) dezincification resistance (DZR) brass: exceeds current no lead legislation - AB1953 or NSF372
  • Suitable for underground installation subject to local code authorities/inspector
  • Environmentally friendly: remove and re-use fittings no need to be scrapped, no heat is required for installation
  • Design for use on ASTM B88 hard drawn and annealed copper type K, l or M, ASTM F876 and F877 pex and ASTM D2846/D2846M CPVC water pipe
  • Chloramine resistant EDPM O-ring
  • Copper tube liner
  • 316 stainless steel grab ring
  • Acetyl copolymer SharkBite® cartridge assembly

SharkBite® Large Diameter Female Connectors combine innovative push-to-connect design with a standard FNPT adapter on the opposite end. The push-fit end is compatible with Copper, PEX, CPVC, PE-RT and HDPE pipes and can be installed with no solder, glue, unions or tools required. These fittings are rated to 200 deg F and 200 psi. Large Diameter PEX Stiffeners are required when connecting to PEX tubing.
