Cash Acme Tank Booster is a Temperature Actuated Mixing Valve that mixes hot water with cold to deliver tempered water at a controlled temperature to 120 deg F (49 deg C). The Tank Booster is intended for installation at the water heater to distribute controlled temperature water through hot water systems in residential and commercial applications. The valve delivers water at 120 deg F (49 deg C), allowing the heater to be set at 140 deg F (60 deg C) or higher, thus providing a greater effective volume of hot water and reducing the chances of Legionella bacterial growth in the water. The Tank Booster is a high quality mixing valve incorporating the latest in thermostatic technology. It features a robust design based on the expertise gained from years of experience in the design and manufacture of safety valves. Every valve is tested for performance on an automated testing station during the assembly process. The valve is third party listed for distribution applications. The Tank Booster incorporates a fast acting, high quality thermostatic element that senses the outlet water temperature and reacts to maintain a stable delivery temperature even under changing flows or variations in supply temperatures. The valve also greatly reduces the outlet flow in the event of a cold water supply failure. The Tank Booster is factory set at 120 deg F (49 deg C), but can easily be adjusted. The Tank Booster is designed for easy and quick installation and is shipped complete with the valve, flexible connector and water heater tee. Can be used with SharkBite® flexible water heater connectors for easy installation while using Copper, PEX, or CPVC tubing. Does not require any transition fittings.

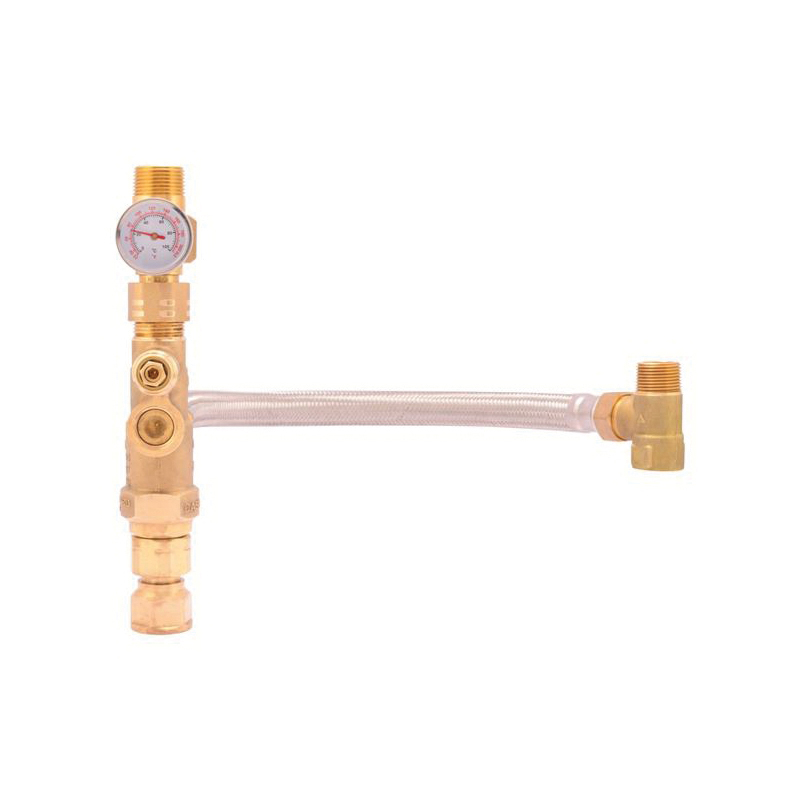

Cash Acme® TANK BOOSTER™ Tank Booster, 3/4 in Nominal Size, MNPT x FNPT x NPSH, 150 psi, 90 to 130 deg F, Integral Recirculation Port, Media: Water, Brass Body, EPDM Seal, 3.5 in OAL x 6.7 in OAH
| Nominal Size | : | 3/4 in |
| End Style | : | MNPT x FNPT x NPSH |
| Pressure Rating | : | 150 psi |
| Temperature Rating | : | 90 to 130 deg F |
| Port Type | : | Integral Recirculation |
| Media | : | Water |
| Body Material | : | Brass |
| Softgoods Material | : | EPDM Seal |
| Dimensions | : | 3.5 in OAL x 6.7 in OAH |
| Domestic/Import | : | Import |
- Precise temperature control: Safer hot water from all outlets
- Allows the water heater to be set at 140 deg F (60 deg C) or higher: Greater effective hot water volume and less chance of Legionella within the cylinder
- Every valve is tested for performance prior to shipping: Specify and install with confidence
- More hot water from the same water heater: Higher storage temperature means a greater effective hot water volume delivered at a safe 120 deg F (49 deg C)
- Robust, low complexity construction: Superior reliability, improved user safety
- Adjustable and lockable mechanism: Minimizes unauthorized tampering with valve setting, Factory set at 120 deg F (49 deg C)
- Listed by IAPMO and ASSE: Inspector friendly, peace of mind
- Integral recirculation port: Allows quick and neat installations in systems with recirculation
- Includes the Tank Booster Temperature Gauge: Allows visual verification of water outlet temperature
- 195 deg F Max hot temperature supply range
- 39 to 80 deg F cold temperature supply range
- Stainless steel springs
- Brass internal cap
- Engineered polymer piston
- Noryl GFN2 guide tube
- 115 to 120 deg F factory setting
- 120 to 180 deg F hot temperature supply
